2005 Silver SF4015A used Moulder
2005 Silver SF4015A used Moulder
Ontario, Canada
Description
4 head moulder.
Specifications
| Manufacturer | Silver |
| Model | SF4015A used Moulder |
| Year | 2005 |
| Condition | Used |
| Serial Number | E202410 |
| Stock Number | BBM2167 |
| Quality | Very Good |

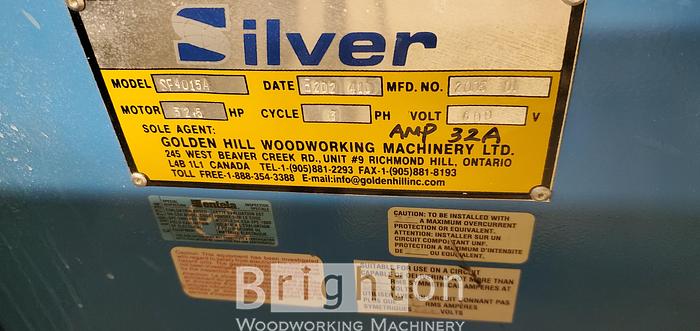

| Electrics | 600 V / 3 Ph / 60 Hz |
| Note: | Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!! |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
**info take from similar model online. Interested buyers should verify all specs before purchasing**

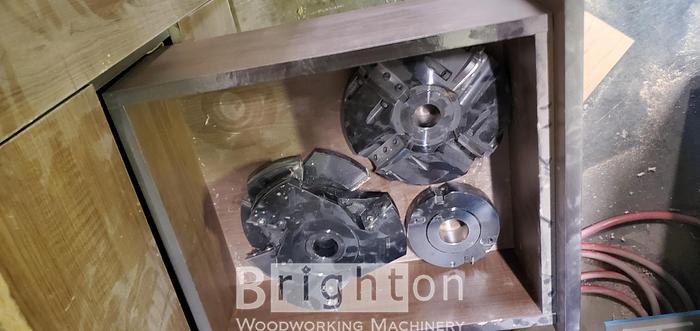

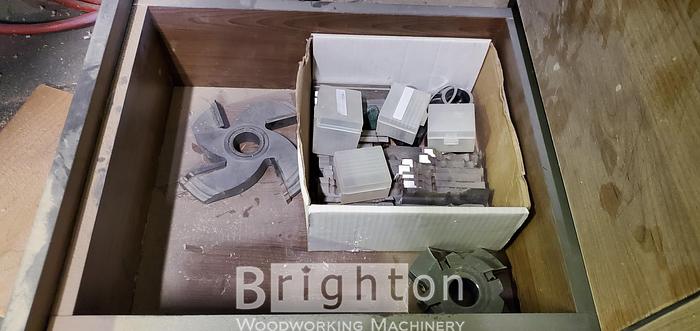

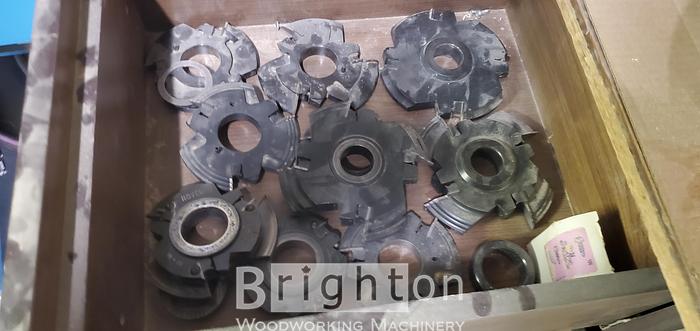

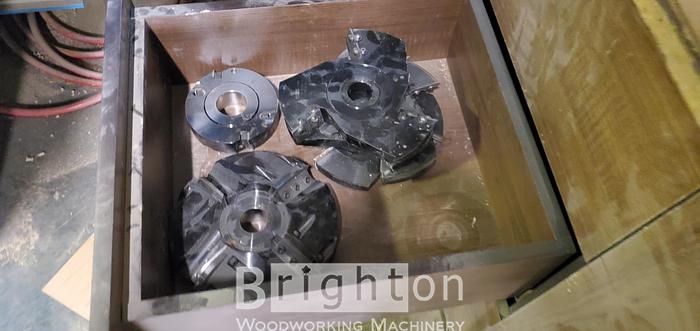

SILVER 4 SPINDLES 6'' MOULDER, MODEL SF-4015A C/W CUTTERS, ELECTRICS: 600V/3PH/60C

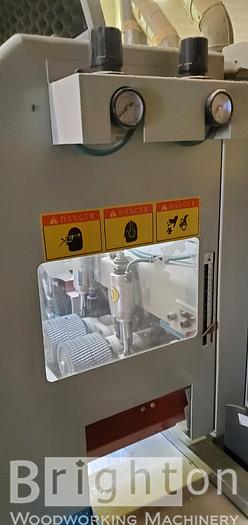

Sealed safety hood to reduce noise levels and prevent chips from splash
Adopted stepless variable feed speed at 9-29 m/min

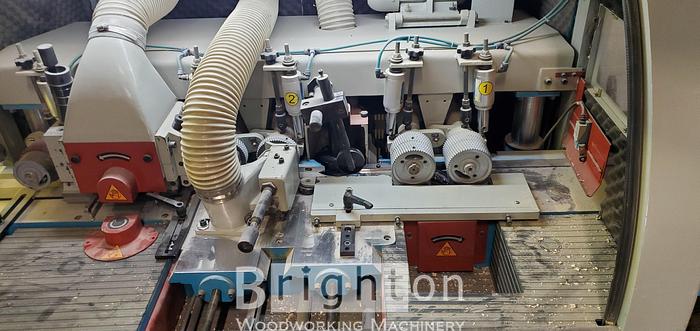

Each spindle driven by independent motor with powerful cutting

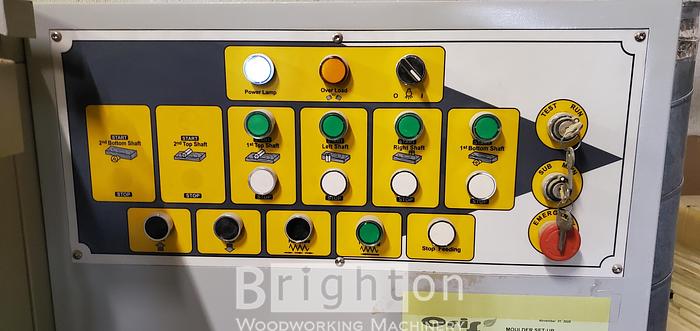

Centralized spindle adjustment on the front panel is easy to work
Hard chromed electro plated treatment has been adopted for the durability of the work table surface
The tooth profile working table is designed to reduce noise
Central lubricating system ensures smooth running and lubrication of the machine
Specification
Max. working width
20-165 mm (6.5")
Max. working height
8-100 mm (4")
Bottom motor
5.5HP
Right side spindle motor
5.5 HP
Left side spindle motor
5.5 HP
Top motor
7.5HP
Feeding speed
9~29m/min
Diameter of spindle
40 mm
Spindle speed
6000 rpm
Feeding power
4 HP
Elevation motor
1.5 HP
Weight of machine
2800 kgs
Machine size (LxWxH)
3230x1610x1700 m
