SCM SCM Class TF130 used shaper #BBM2879
SCM SCM Class TF130 used shaper #BBM2879
Location:Ontario, Canada
Description

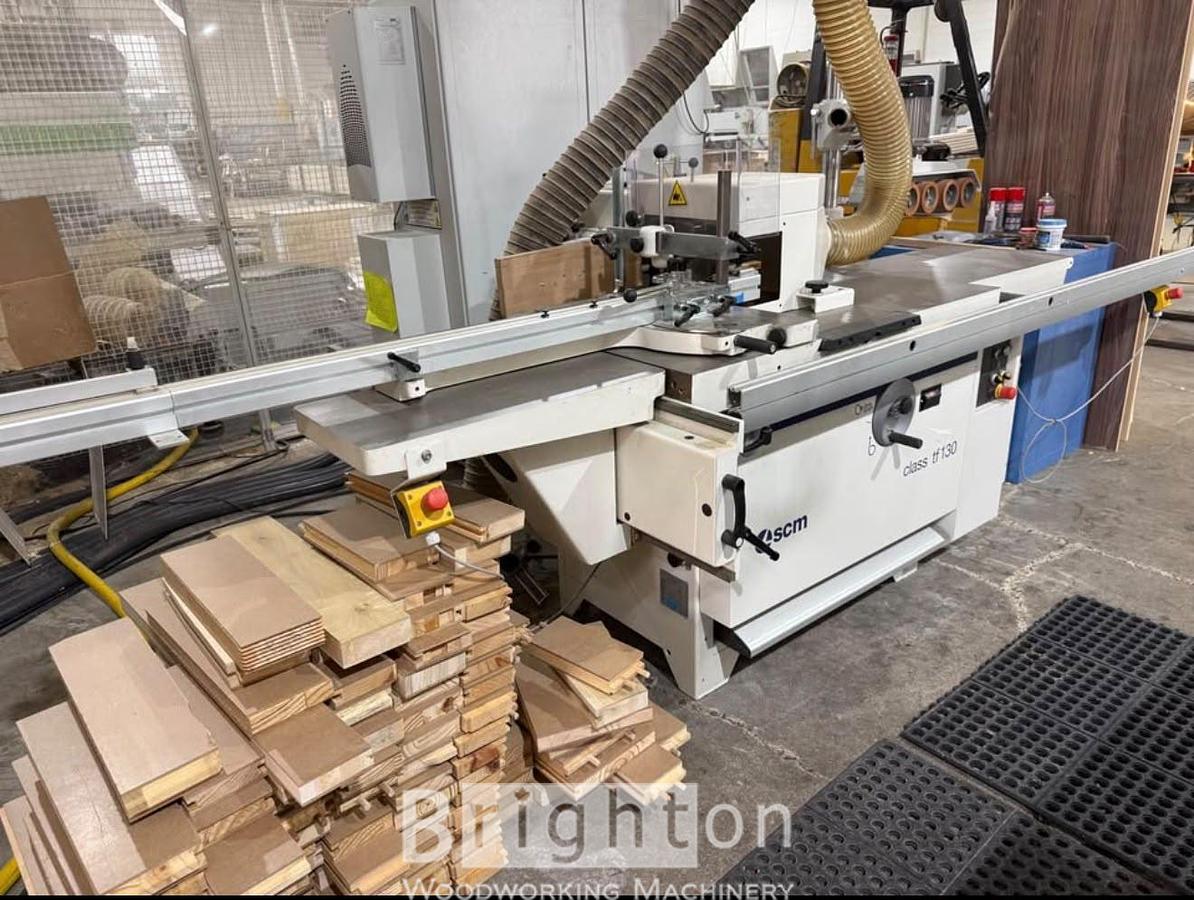

This SCM Class TF130 is a heavy-duty industrial spindle shaper/moulder engineered for high-precision joinery, door making, and custom millwork
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | SCM |
| Model | SCM Class TF130 used shaper |
| Condition | Used |
| Stock Number | BBM2879 |
| Quality | Very Good |
| Electrics | V / Ph / 60 Hz |
| Specs: | • Table Dimensions: Cast iron tabletop roughly 29.5" × 47" (or 1200 × 730 mm) with a relief pattern to reduce surface friction. • Spindle Travel / Useful Length: Up to 7 inches (180 mm) of working spindle height below the nut. • Spindle System: Interchangeable spindle design, commonly featuring the MK5 (Morse Taper 5) system or standard 1.25-inch (and 30mm/40mm/50mm options) shafts. • Spindle Speeds (5 Speeds): 3,000 / 4,500 / 6,000 / 7,000 / 10,000 RPM (some variants go up to 8,000 instead of 7,000 depending on the model year). • Motor Power: Typically 9 HP to 11 HP (7 kW to 8 kW) on 3-phase (220V/60Hz) North American configurations. • Tool Capacities: • Max profiling tool diameter: 9.8" (250 mm) • Max tenoning tool diameter: up to 11.8"–12" (300 mm–320 mm) • Weight: Approx. 1,327 lbs (heavy cast iron column and enclosure). • Dust Collection: Dual 120 mm (4.75") dust ports (at the fence and base level). |
Additional Features
Why Shops Buy the TF130
• The 7-Inch Stack Capacity: Entry-level shapers max out around 3.5 to 3.75 inches of spindle height. The TF130’s 7-inch capacity means you can stack a full 3-piece cabinet door set (stile cutter, rail cutter, and raised panel cutter) on a single setup without changing tools or tearing down between operations.
• MK5 Morse Taper Rigidity: Borrowed from heavy metalworking machinery, the MK5 shallow taper wedge-locks the spindle into the socket as cutting forces increase, virtually eliminating runout and handling severe side loads.
• Heavy Cast-Iron Architecture: A massive cast-iron column and a protective internal cast-iron "cup" isolate the bearings and electronics from sawdust, dampening vibration for a mirror-smooth finish on hardwoods.
• Micro-Adjust Precision: Upgraded mechanical or digital fences let you dial in fence positions accurately to a tenth of a millimeter, slashing waste and eliminating trial-and-error test runs.
• Built for Production: With 5 distinct speeds and reverse rotation standard, it transitions effortlessly from delicate small-diameter profile shaping to massive tenoning.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
