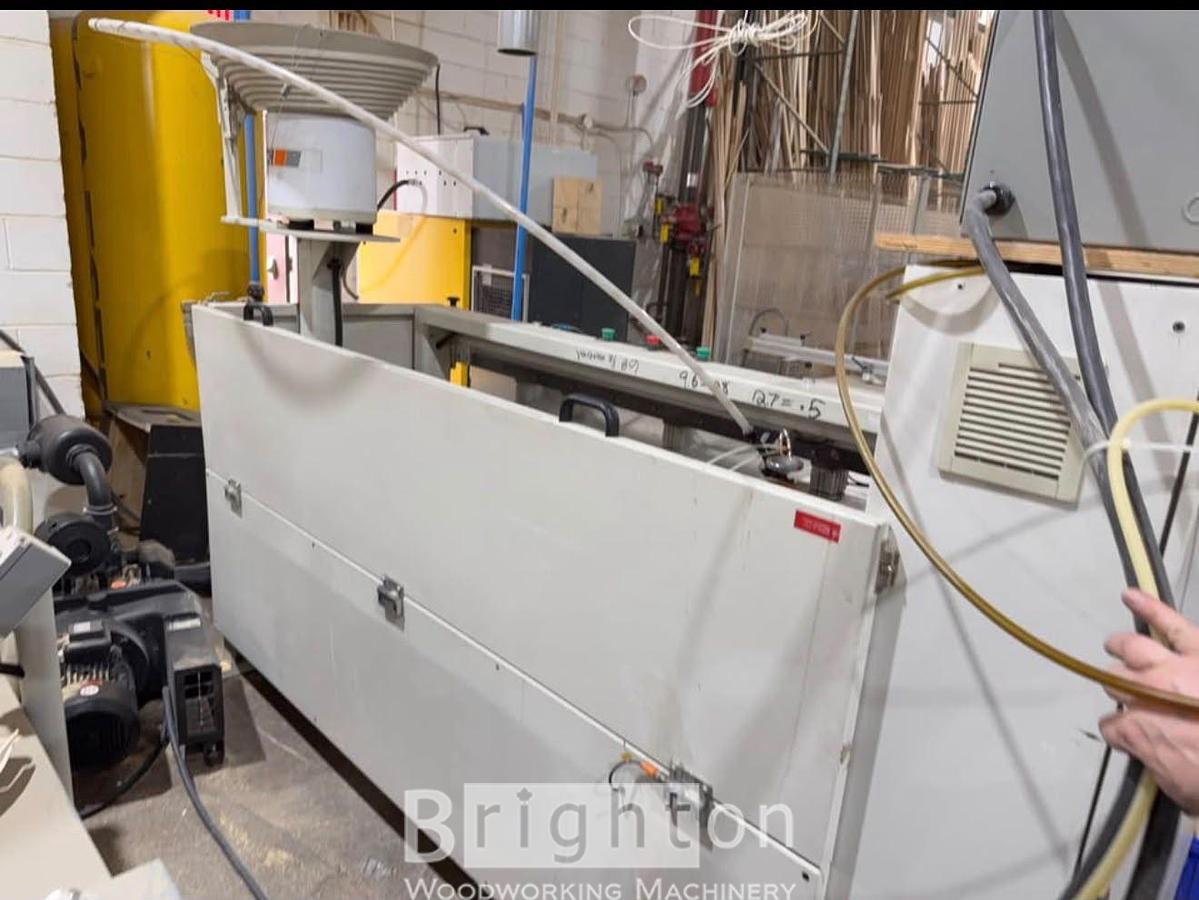

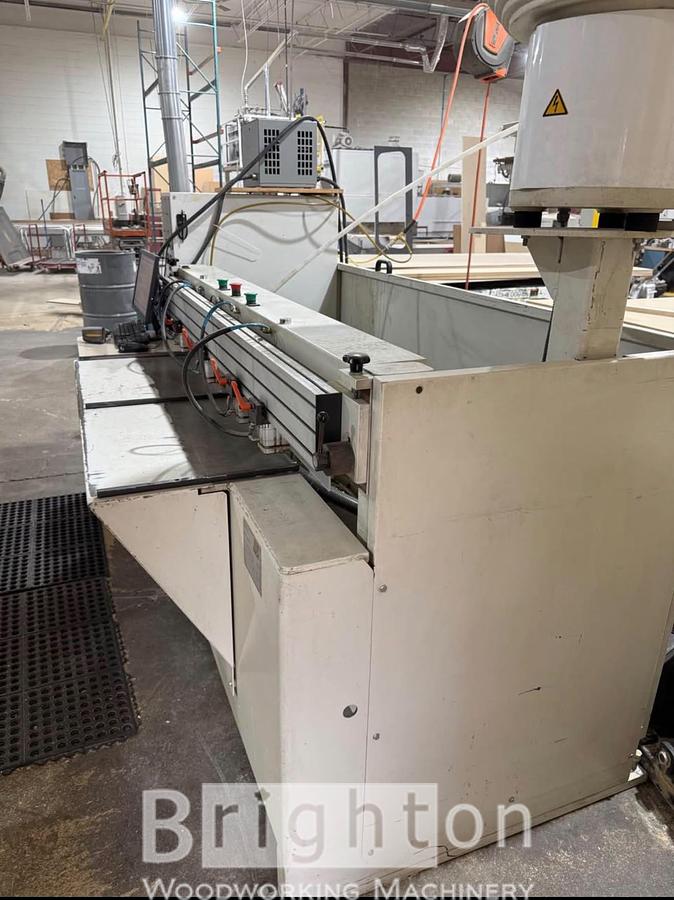

2007 Koch Sprint-PTP-3-L used Bore, Glue, Dowel and insertion machine. #BBM2878
2007 Koch Sprint-PTP-3-L used Bore, Glue, Dowel and insertion machine. #BBM2878
Location:Ontario, Canada
Description
This 2007 Koch Sprint-PTP-3-L is a premium, point-to-point single-sided CNC Boring, Gluing, and Dowel Insertion Machine. Engineered for efficient batch-size-1 and short-run production, the "L" variant features an expanded working table length, allowing multi-field execution to radically reduce cycle downtime
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | Koch |
| Model | Sprint-PTP-3-L used Bore, Glue, Dowel and insertion machine. |

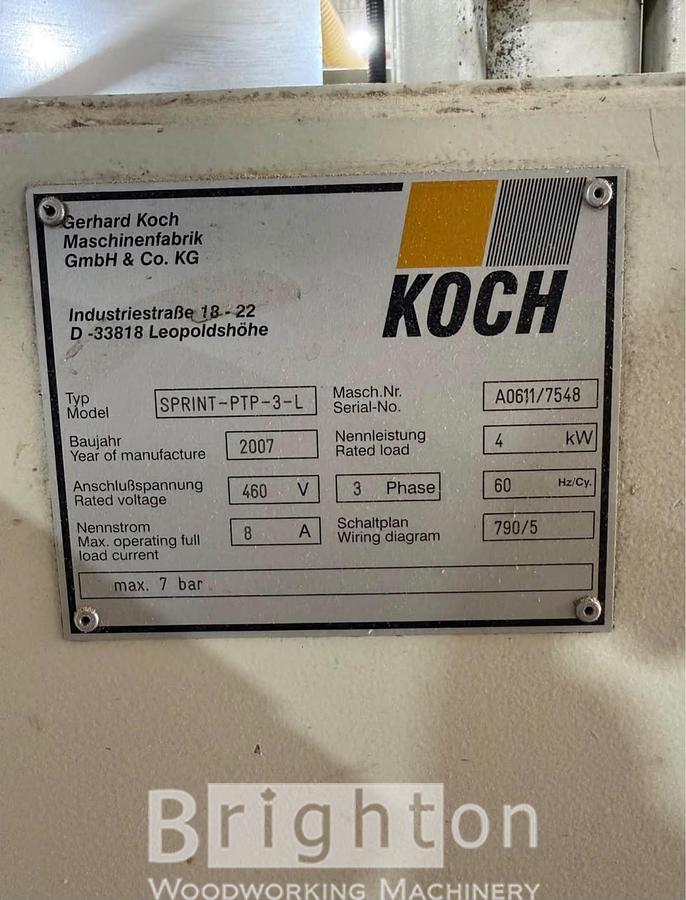

| Year | 2007 |
| Condition | Used |
| Stock Number | BBM2878 |
| Quality | Very Good |
| Electrics | V / Ph / 60 Hz |

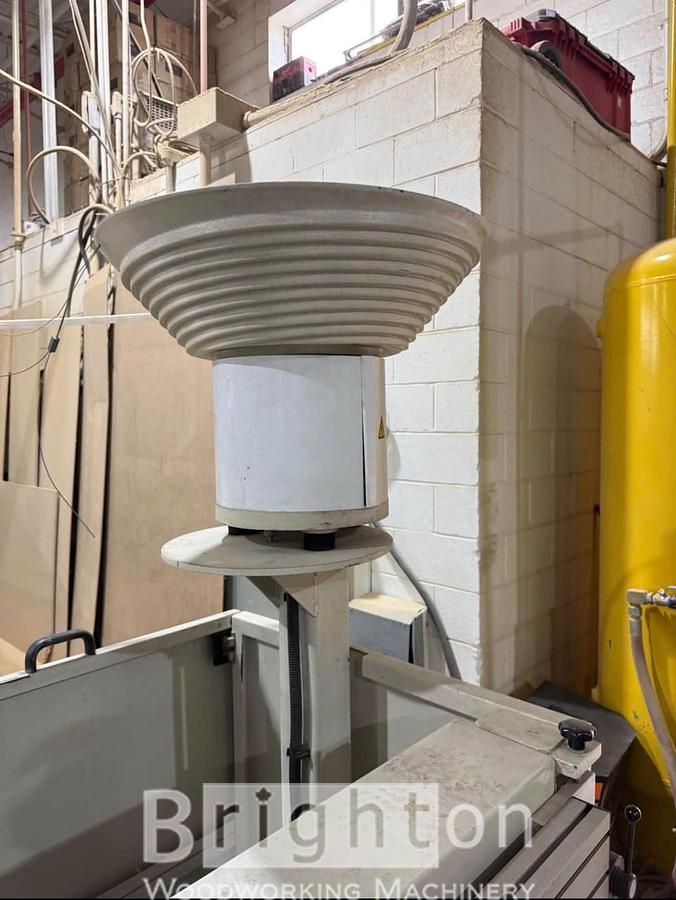

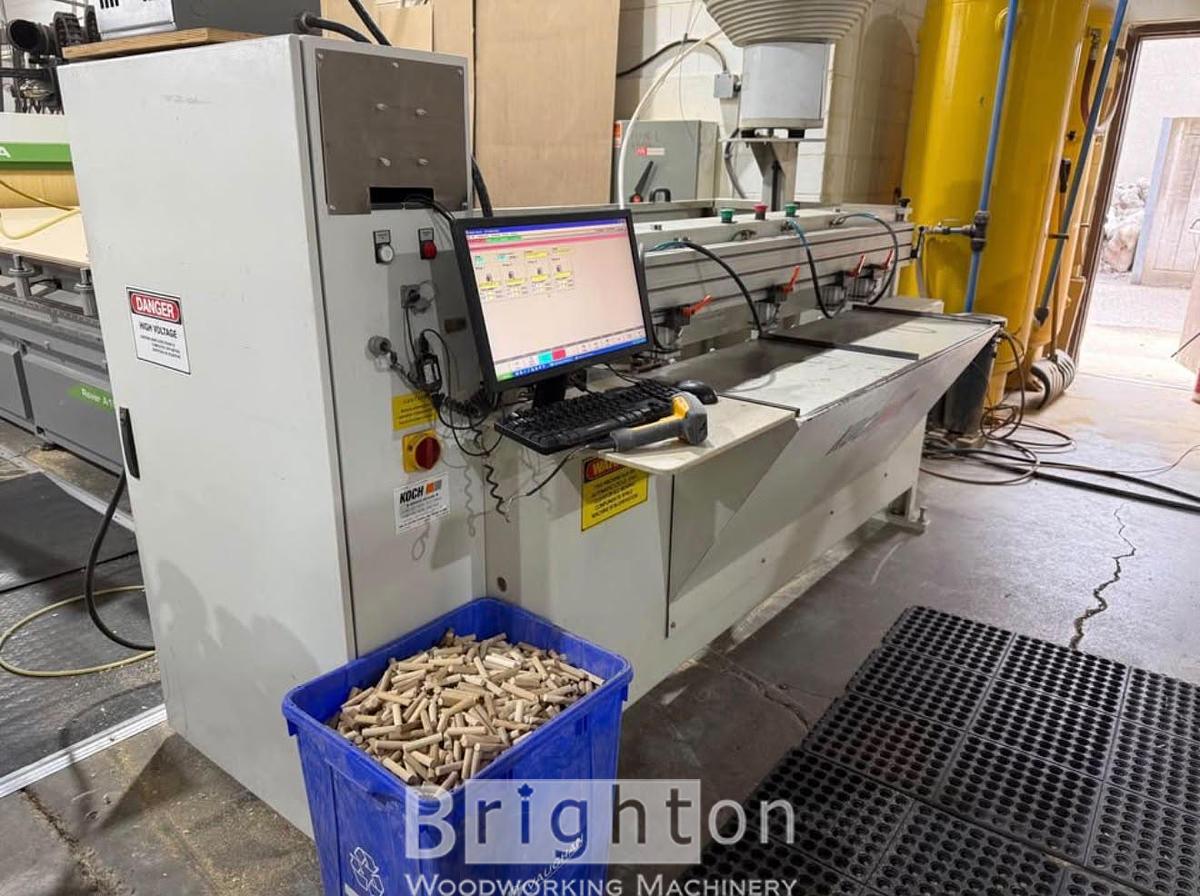

| Specifications: | • Work Capacity (X-Axis): Up to 98.4" (2,500 mm) maximum panel width capacity (allowing large components or multiple independent work zones). • Work Capacity (Y-Axis): Up to 31.4" (800 mm) maximum part length. • Material Thickness (Z-Axis): 0.51" to 1.57" (13 - 40 mm) standard range. • Boring Station: 1x Horizontal drilling spindle powered by a 1.2 HP (0.9 kW) high-speed motor running at 7,200 RPM. • Maximum Drilling Depth: Up to 1.18" (30 mm). • Insertion Station: High-pressure patented KOCH ELC (Electronic Glue Control) injection unit paired with a heavy-duty dowel driver head. • Dowel Capacity: Setup standard for 8 mm diameter dowels (typically 30–35 mm lengths). • Feed System: Automated electronic vibrating selector hopper for continuous dowel feeding. • Positioning Speeds: Dynamic X-Axis transit speeds up to 344.5 FPM (105 m/min) for ultra-fast point-to-point cycles. • Control Interface: CNC Control backed by a Windows-based PC architecture, featuring an eye-level 15" color monitor/touchscreen with menu-driven parametric programming and online diagnostics. • Clamping & Fences: Equipped with pneumatic vertical stock clamping cylinders and multi-field pneumatically lowerable reference fences to swap seamlessly between left, right, and center zones. |
Additional Features
Revolutionize Your Cabinet & Case Goods Workflow—Eliminate CNC Bottlenecks with the Koch Sprint-PTP-3-L!
Are slow, multi-step construction drilling, manual gluing, and manual dowel driving choking your main CNC machining center? It’s time to offload those tedious operations to a dedicated work cell powerhouse.
The 2007 Koch Sprint-PTP-3-L is the ultimate solution for automated, step-by-step panel processing. By integrating high-precision horizontal boring, digital fluid-controlled glue injection, and rapid-fire dowel driving into a single rapid sequence, this machine transforms a multi-step headache into a seamless 3-second reality.
Why the Koch Sprint-PTP-3-L Deserves a Spot on Your Shop Floor:
• True Batch-Size-1 Flexibility: Driven by user-friendly parametric CNC controls, you can shift from processing custom drawer parts to large wardrobe components seamlessly without mechanical teardowns or tedious changeovers.
• Massive Long-Bed "L" Table Layout: The elongated X-axis is split into independent work fields. Your operator can safely unload and load parts on one side while the machine fires on the other—delivering non-stop, zero-downtime productivity.
• Patented ELC Electronic Gluing Precision: Never worry about starved joints or messy glue squeeze-outs again. Koch’s advanced Electronic Glue Control delivers a perfectly calibrated dosage every single cycle, saving you material costs and post-assembly cleanup.
• Unrivaled German Reliability: Koch is the gold standard in dowel insertion machinery. This 2007 machine combines heavy-duty mechanical frame stability with an accessible, modern Windows-based touchscreen UI that operators love.
Stop treating your primary nesting router or point-to-point center like a construction drill. Boost your daily throughput, secure flawless joint repeatability, and scale your assembly line with this exceptionally clean, production-ready Koch Sprint-PTP-3-L.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
