2010 Biesse Rover C 6.65 Conf. 3 used pod and rail CNC machine #BBM2877
2010 Biesse Rover C 6.65 Conf. 3 used pod and rail CNC machine #BBM2877
Location:Ontario, Canada
Description

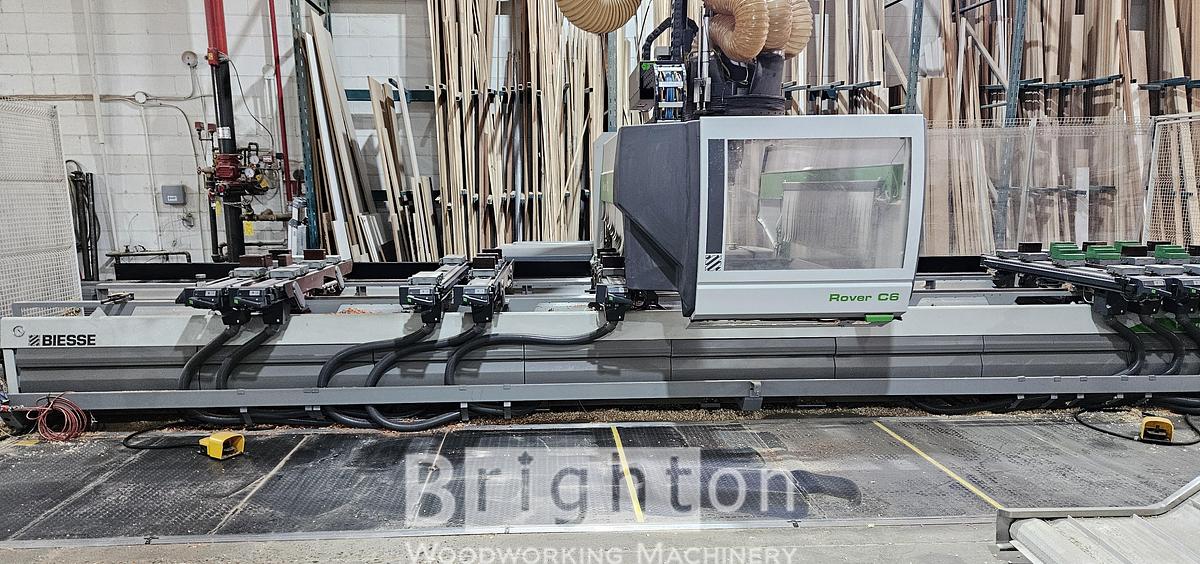

This 2010 Biesse Rover C 6.65 Configuration 3 is a heavy-duty, 5-axis pod-and-rail CNC machining center designed for high-precision, large-format woodworking, nested-based manufacturing, and complex 3D contouring
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications

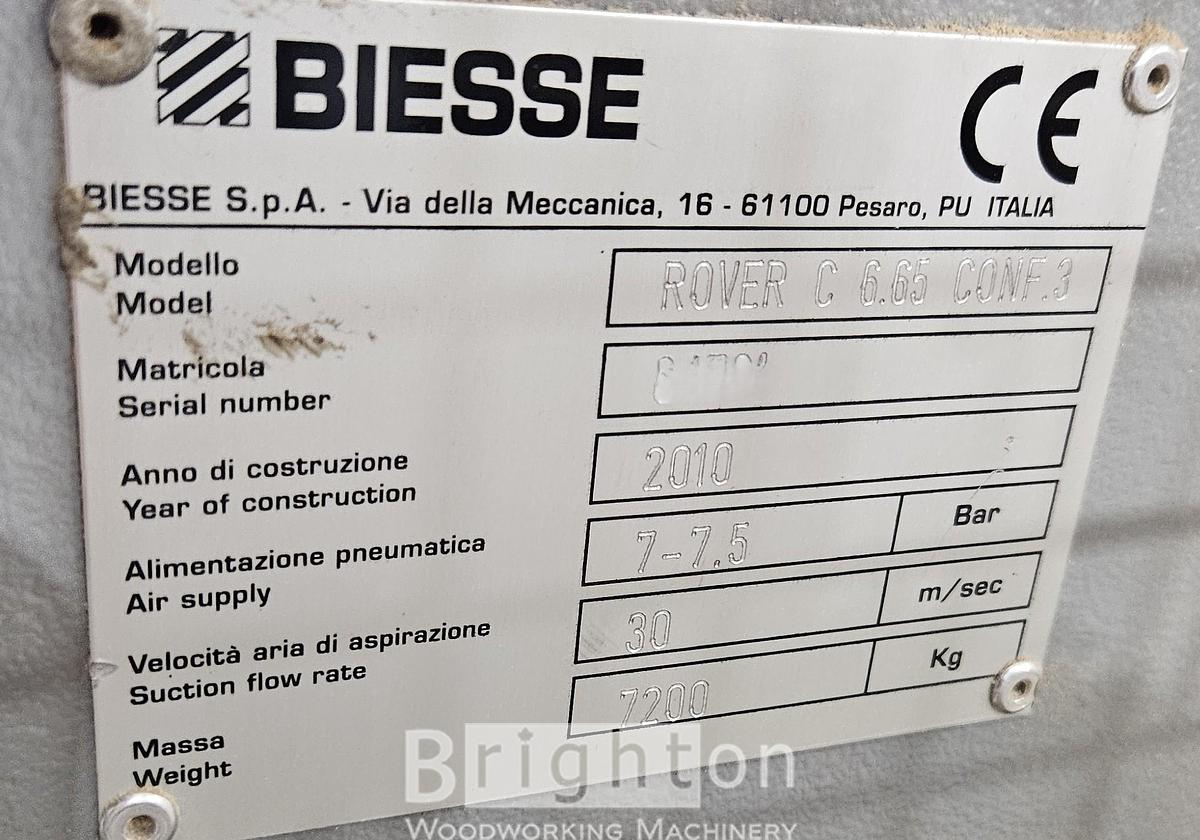

| Manufacturer | Biesse |
| Model | Rover C 6.65 Conf. 3 used pod and rail CNC machine |
| Year | 2010 |
| Condition | Used |
| Stock Number | BBM2877 |
| Quality | Very Good |
| Electrics | V / Ph / 60 Hz |

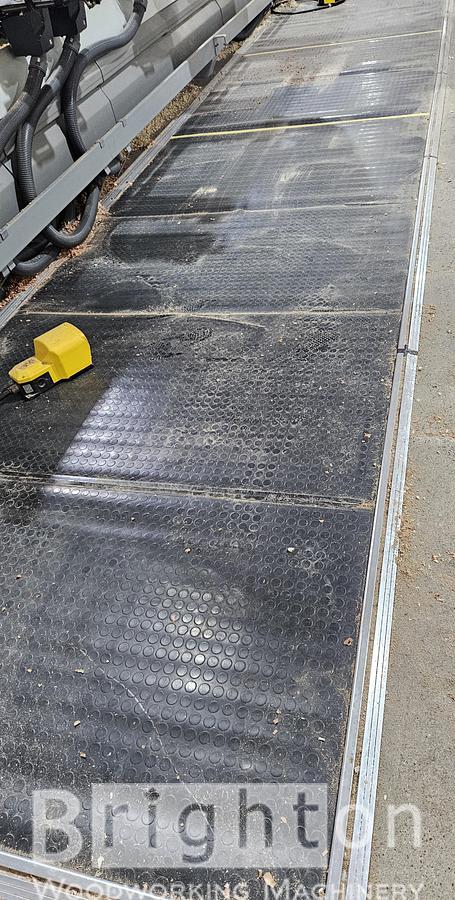

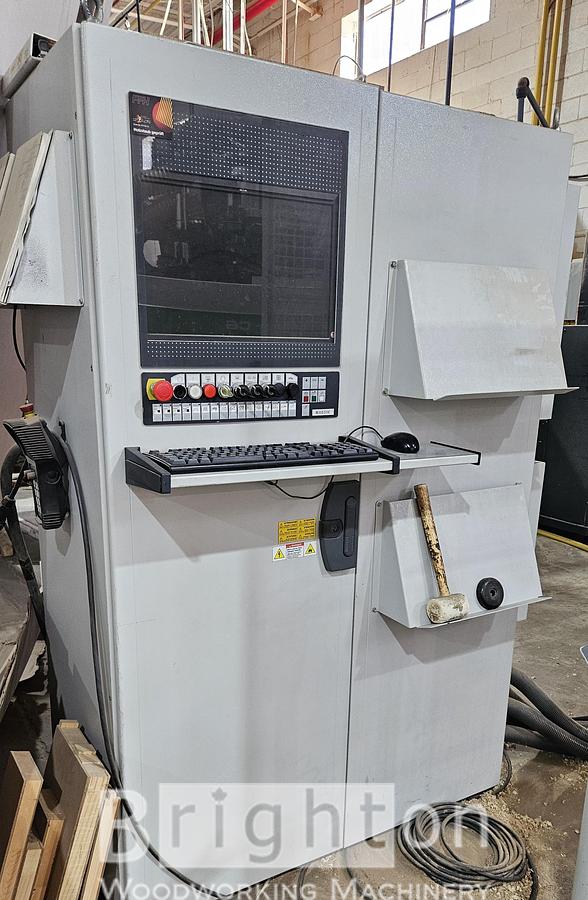

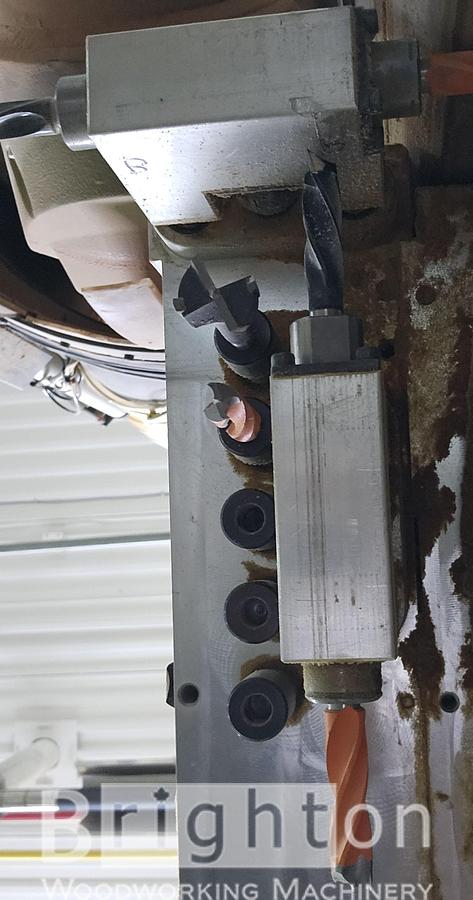

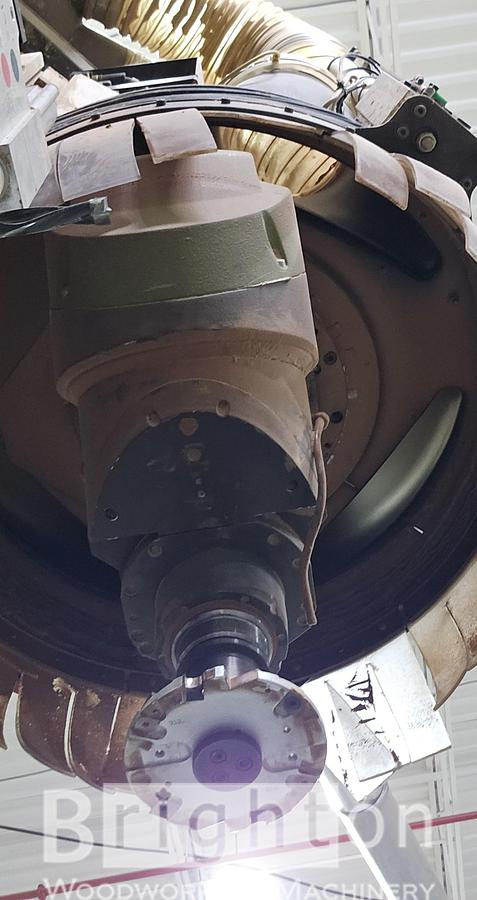

| Other specs: | • Model & Year: Biesse Rover C 6.65 Conf. 3 (Manufactured ~2010) • Working Area (X / Y / Z): • X-Axis Work Area: 6,200 mm (approx. 244 in / 20.3 ft) • Y-Axis Work Area: 1,535 mm (approx. 60.4 in) • Z-Axis / Max Panel Passage: 275 mm (approx. 10.8 in) • Axis Travel Speeds: • X and Y Axes: 100 m/min (328 FPM) • Z Axis: 30 m/min (98 FPM) • Worktable: • Console/Beam table with 10 CNC-controlled EPS (Electronic Positioning System) bars and vacuum suction cups. • 2 independent working zones for pendulum loading. • Milling Spindles & Heads (Conf. 3): • Spindle 1 (5-Axis): Liquid-cooled electrospindle (approx. 12 kW / 15 kW options), 1,000 to 20,000 RPM, HSK-F63 tool taper. • Spindle 2 (3-Axis or secondary unit): Additional routing/boring configuration. • Boring/Drilling Unit: • 25 vertical drilling spindles • 4 horizontal drilling spindles in X-axis • 2 horizontal drilling spindles in Y-axis • Tool Changer: Automatic tool changer with multi-position capacity (typically 22+ positions). • Vacuum Pump: Becker VTLF 250 (capacity ~250 m³/h). • Control System & Software: BiesseWorks / PC-based control platform. • Safety & Handling: Front safety mats, automatic bar/pod positioning, chip conveyor. |
Additional Features
"Transform Your Heavy-Duty Production with the 2010 Biesse Rover C 6.65 (Conf. 3)"
• Massive 20-Foot Capacity: Tackle oversized architectural panels, stair components, doors, and complex 5-axis 3D millwork without constantly repositioning the stock.

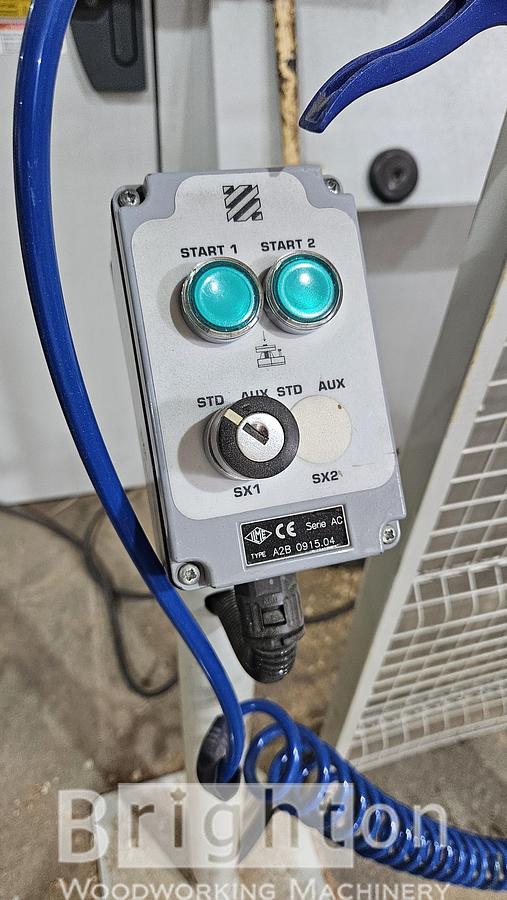

• True 5-Axis Flexibility: Execute undercuts, compound angles, and intricate sculptured parts in a single setup, drastically reducing human error and handling time.
• Automated EPS Pod & Rail Setup: Say goodbye to manual table configuration. The electronic positioning system automatically slides your rails and vacuum pods into exact coordinates, cutting changeover downtime to zero.
• High-Speed Precision: With rapid traverse speeds of 100 m/min on X and Y, this machine balances brute-force industrial output with fine cabinet-grade accuracy.
• Turnkey Workhorse: Built with Biesse’s legendary heavy steel gantry and a robust 22+ position automatic tool changer, it’s engineered to run multi-shift production right out of the box.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
