2007 SCM S630E Class used 24 inch planer #BM2862
2007 SCM S630E Class used 24 inch planer #BM2862
Location:Ontario, Canada
Description

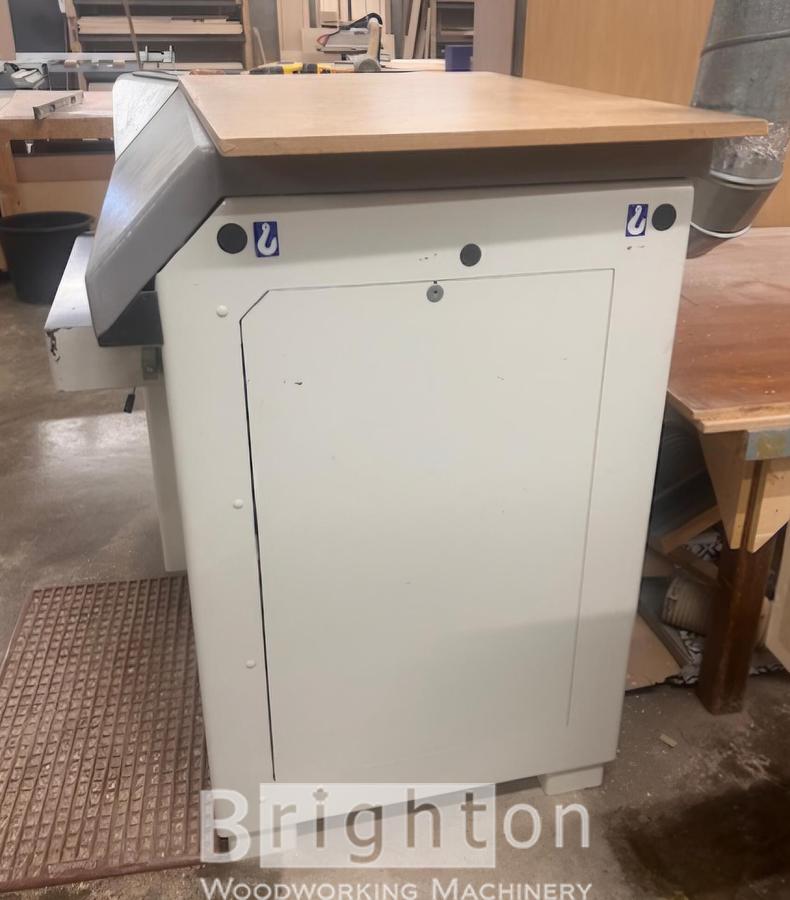

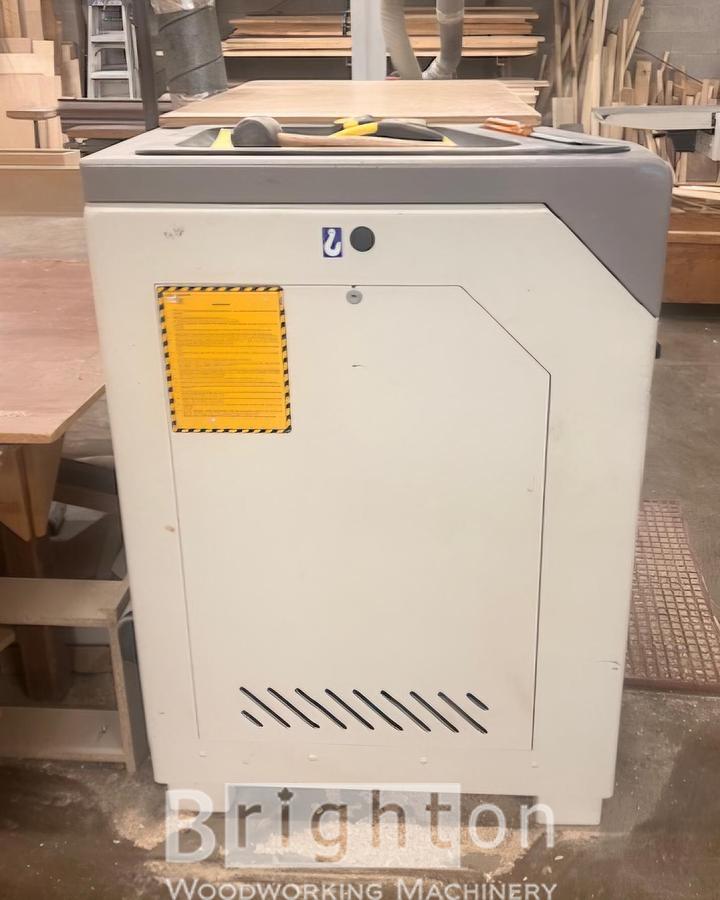

This 2007 SCM S630E is a heavy-duty, industrial-grade 24-inch single-surface thickness planer engineered for high-precision architectural millwork and high-volume commercial production.
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | SCM |
| Model | S630E Class used 24 inch planer |

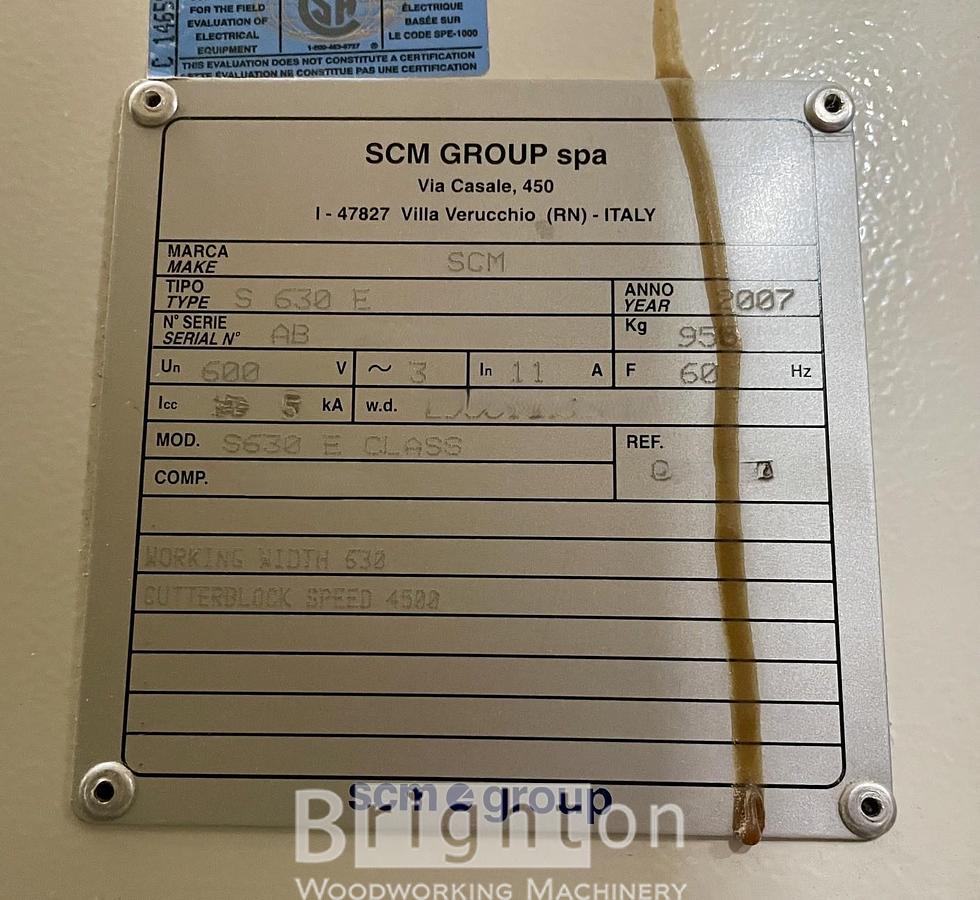

| Year | 2007 |
| Condition | Used |
| Stock Number | BM2862 |
| Quality | Very Good |
| Electrics | 600V / 3 Ph / 60 Hz |
| Working Width Capacity | 24 inches |
| Thicknessing Opening (Min/Max) | 1/8" to 11-3/4" (3 mm to 300 mm) |
| Main Motor Power | 12 hp |

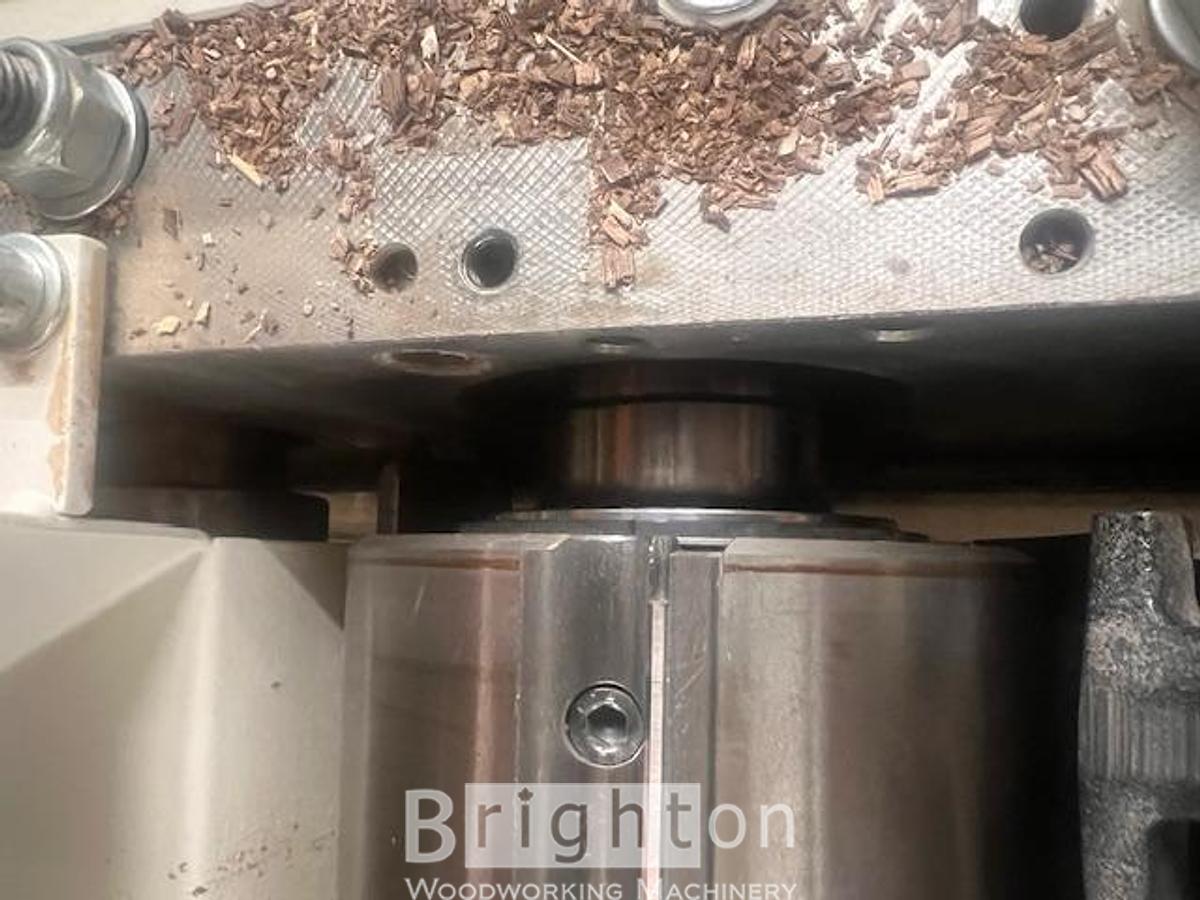

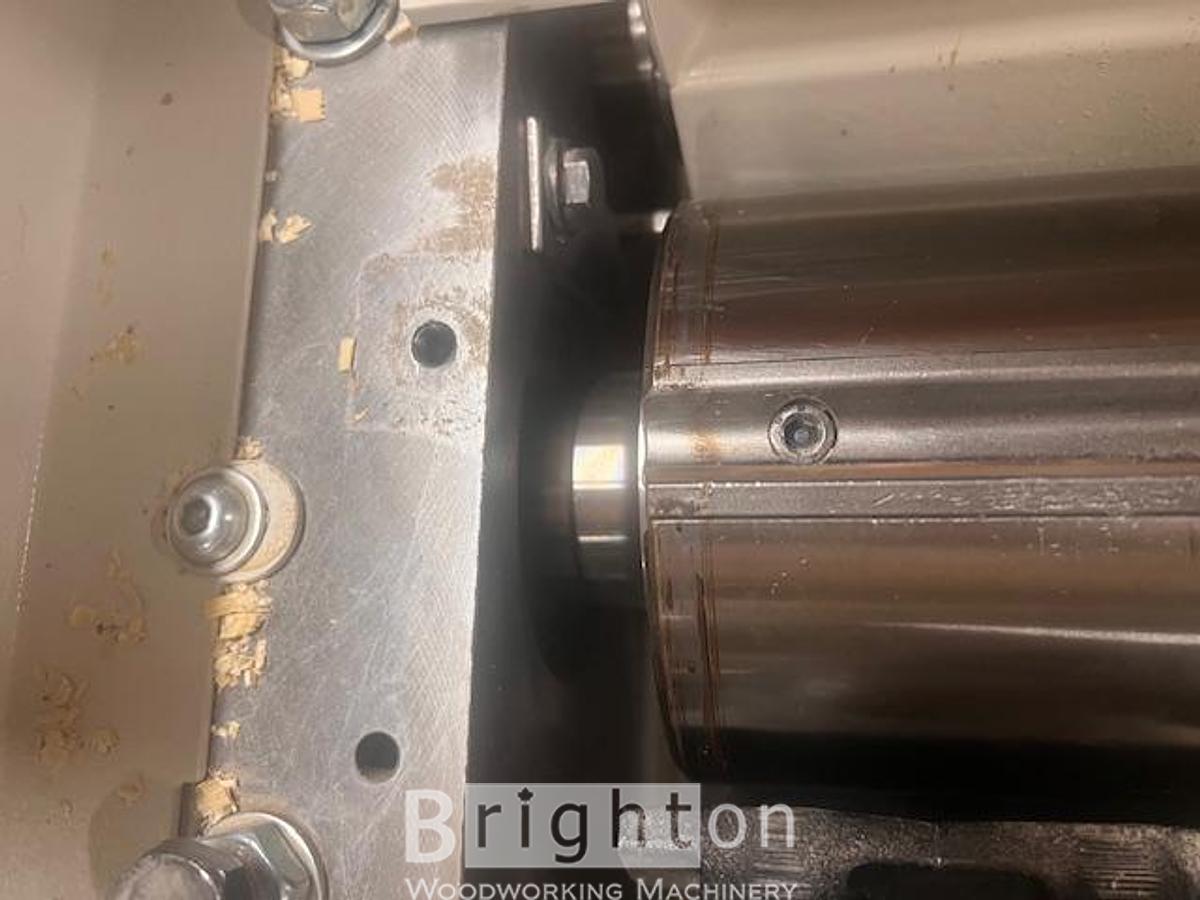

| Cutterhead Speed / Diameter | 4,500 RPM / 4.75" (120 mm) diameter |

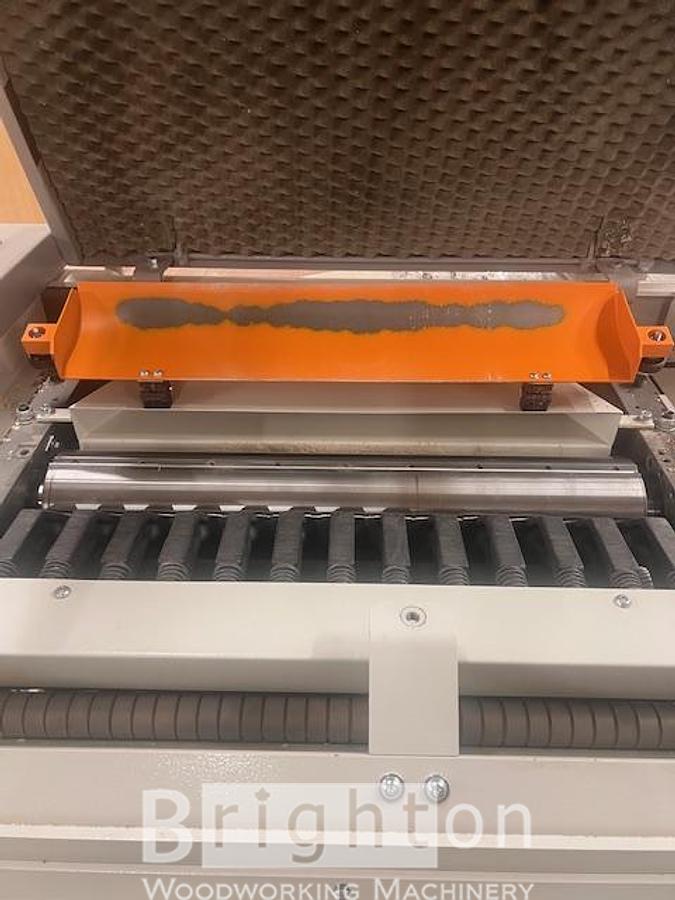

| Cutterhead Configuration | equipped with a 4-knife Tersa quick-change insert system |
| Maximum Depth of Cut | 5/16" (8 mm) |
| Minimum Workpiece Length | 10" (260 mm) |
| Feed Speeds | Variable or 4-stage gearbox ranging from 20 to 56 FPM (feet per minute) |
| Table Size | 20-3/4" x 39" precision-ground cast iron table with integrated adjustable bed rollers |

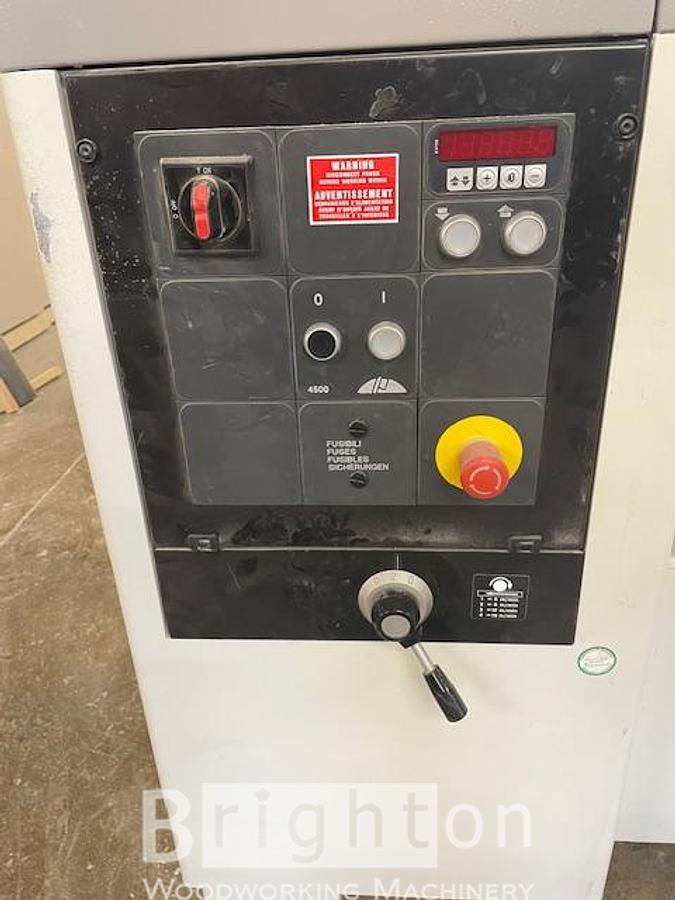

| Table Elevation: | Motorized 2-speed pass lift featuring a digital LED height readout for micro-adjustments |

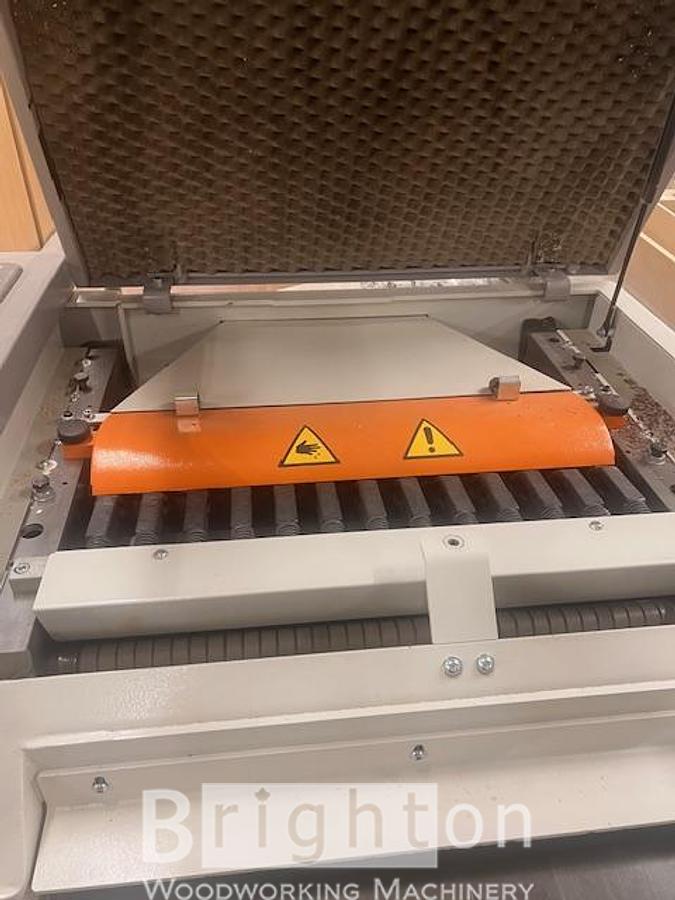

| Infeed / Outfeed System: | Sectioned steel grooved infeed roller (allows simultaneous feeding of multi-thickness boards) paired with dual rubberized/neoprene outfeed rollers to prevent marring. |

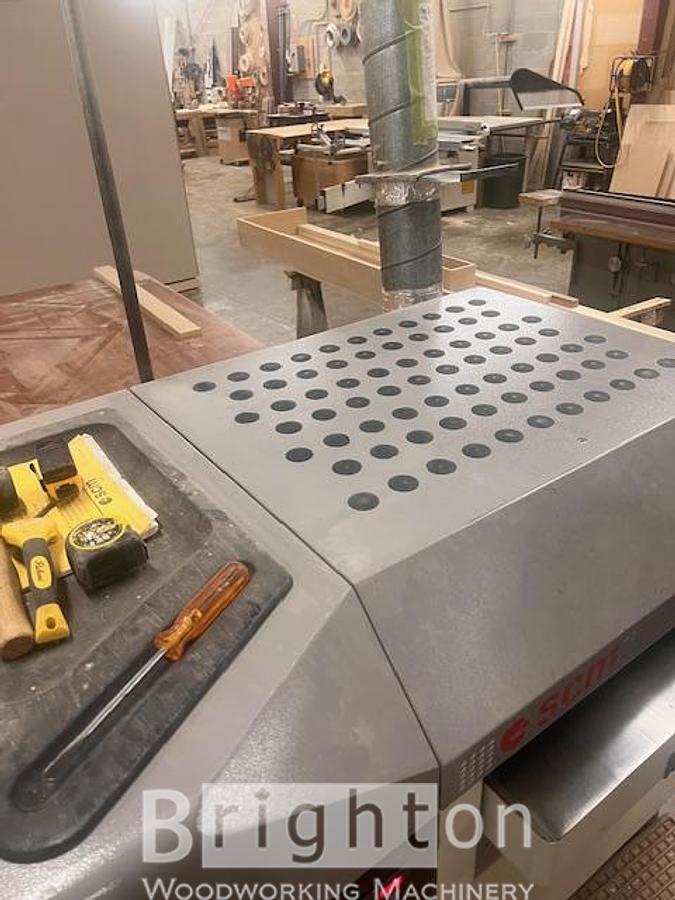

| Dust Hood Outlet: | 6" (150 mm) diameter |
| Machine Weight: | Approximately 2,200 lbs (1,000 kg) |
Additional Features
Why this machine belongs on your shop floor:
• Industrial Powerhouse: Driven by a rugged 12 HP three-phase motor, it easily eats through 24-inch wide stock up to 11-3/4" thick without breaking a sweat.
• Flawless Tersa Cut System: Knife changes take less than two minutes with the tool-free, self-locking Tersa system. No setting gauges, no dialing in—just slide them out, flip them over, and experience razor-sharp, factory-calibrated cuts instantly.

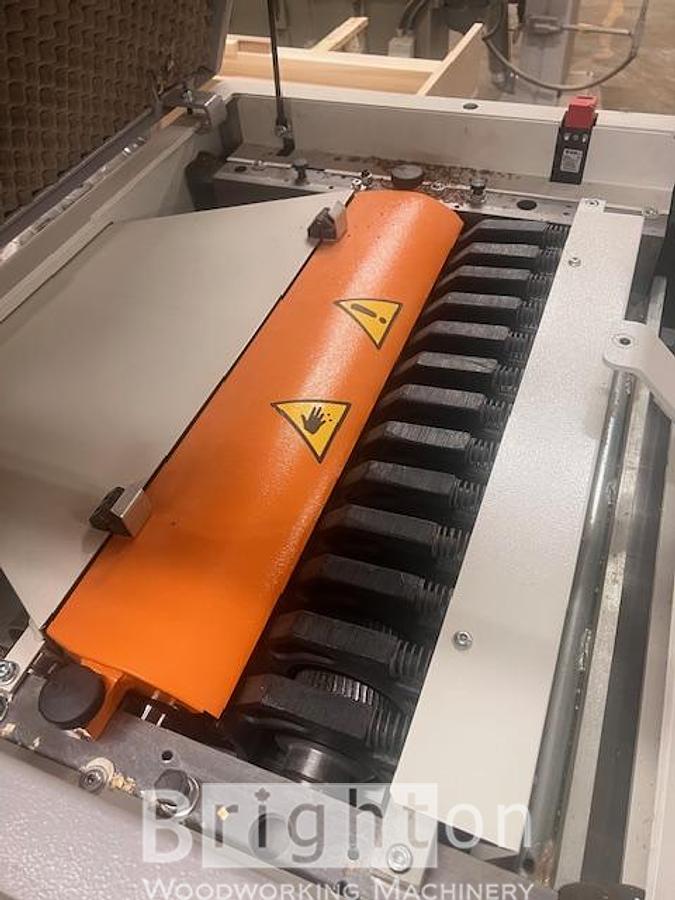

• Smart Sectional Feeding: Thanks to the segmented steel infeed roller and sectional chip breakers, you can feed multiple boards of slightly varying thicknesses at the exact same time without the risk of dangerous kickbacks.
• Micrometric Precision: Say goodbye to tape measures and hand cranks. The dual-speed motorized bed control paired with an electronic LED digital readout allows you to dial in exact target thicknesses down to a decimal point.
• Legendary SCM Reliability: Unlike modern machines built with lightweight components, this 2007 classic represents the pinnacle of rigid, cast-iron European engineering. It was built to work 8 hours a day, 5 days a week, for decades.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
