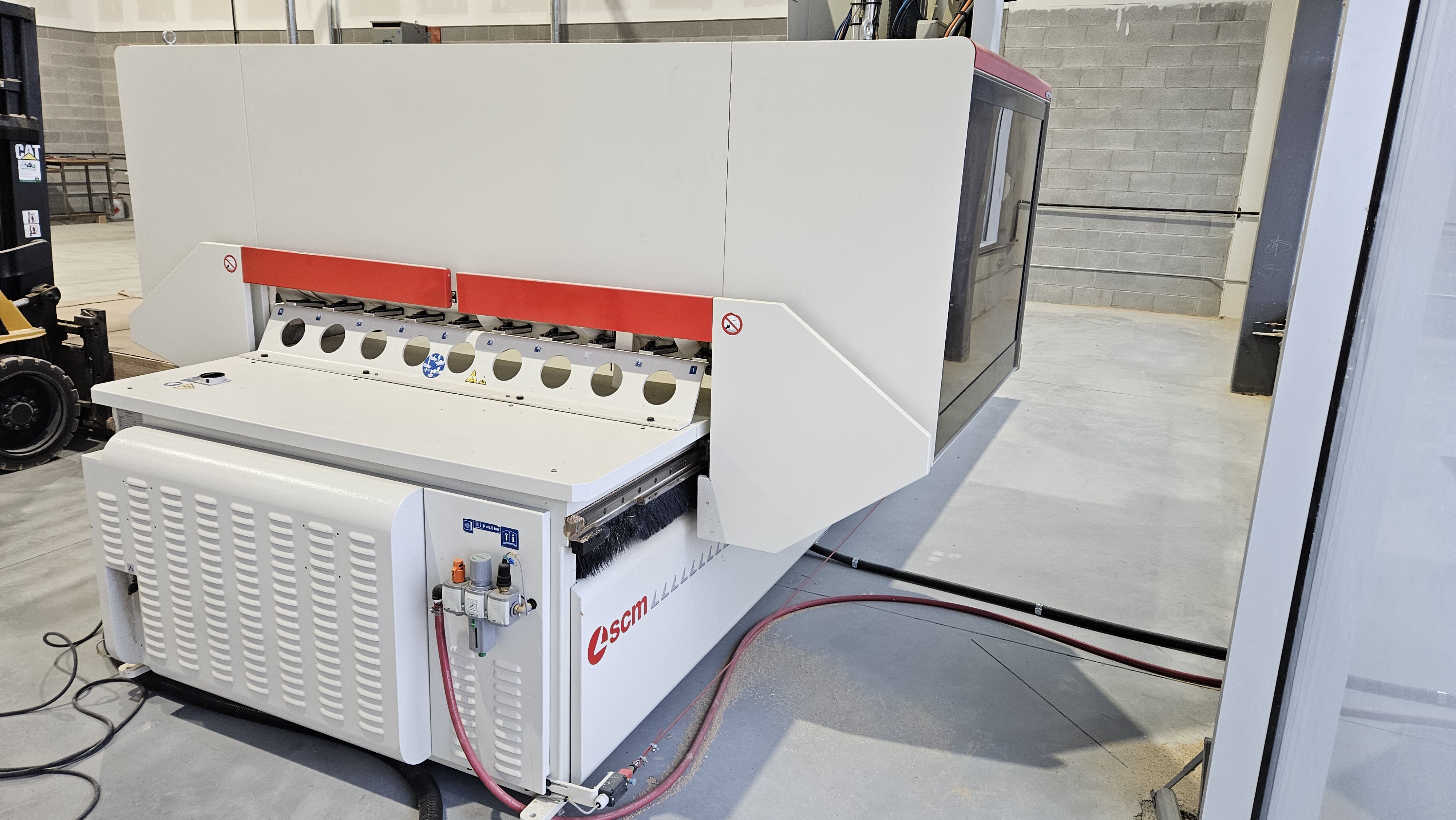

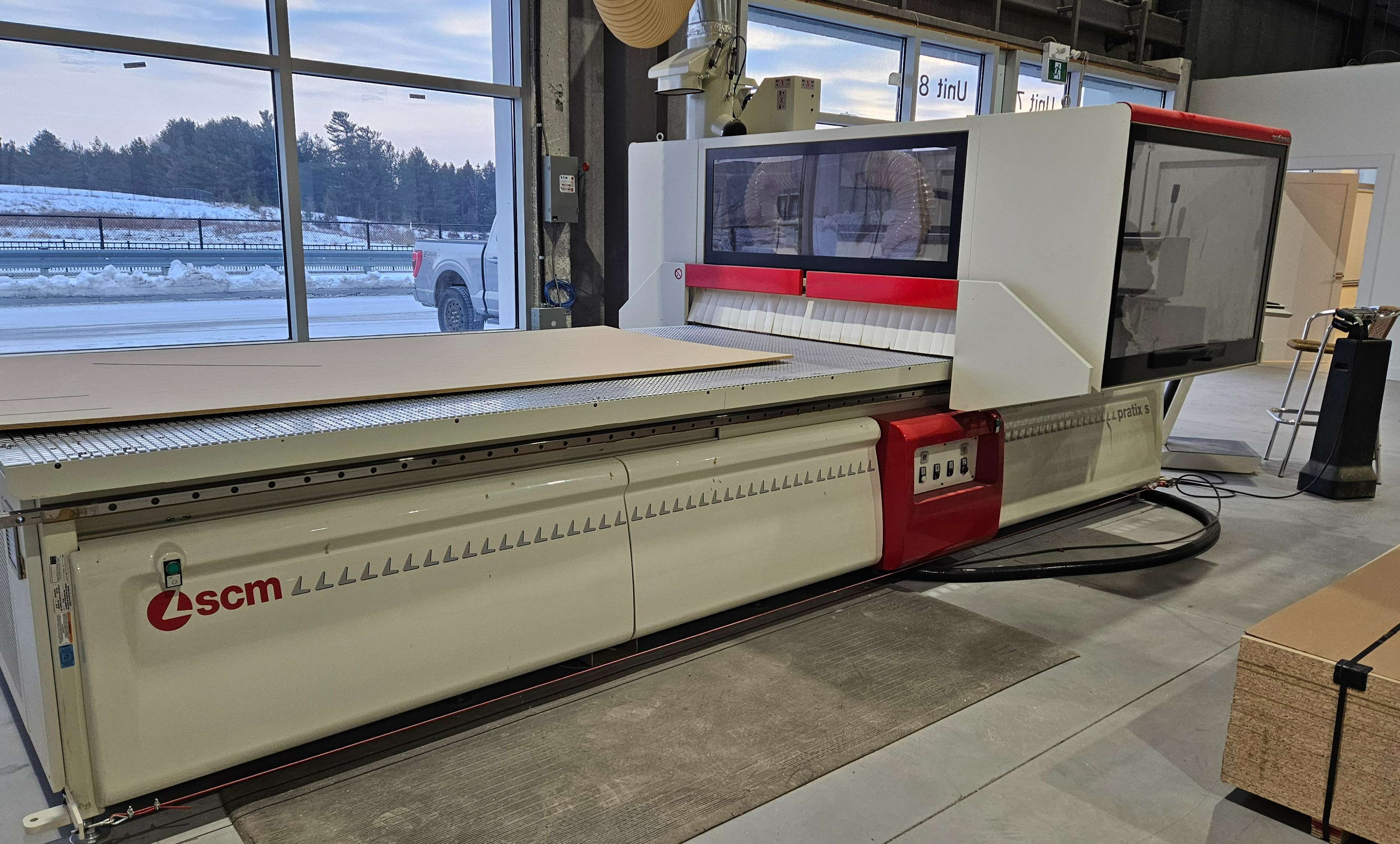

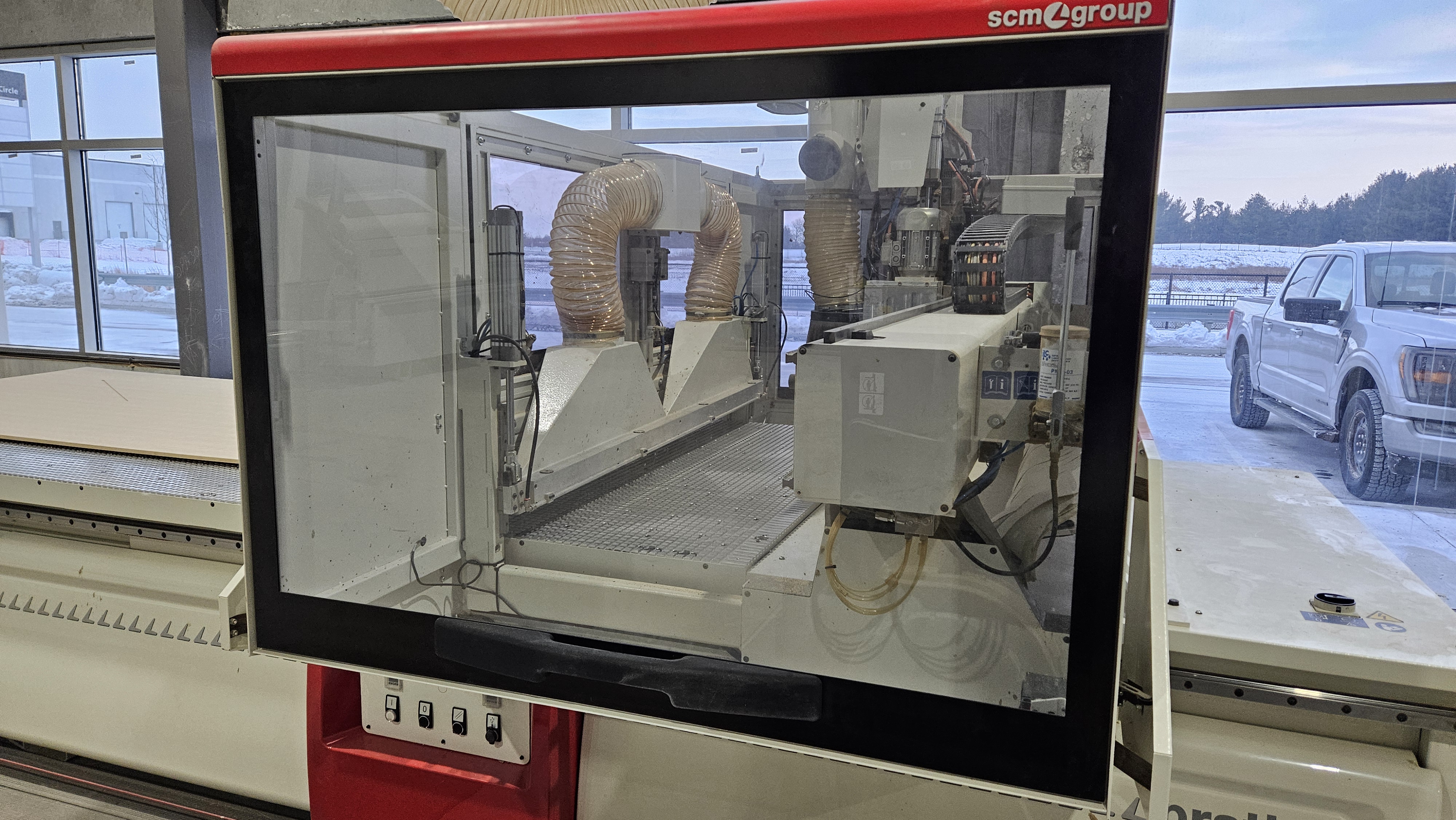

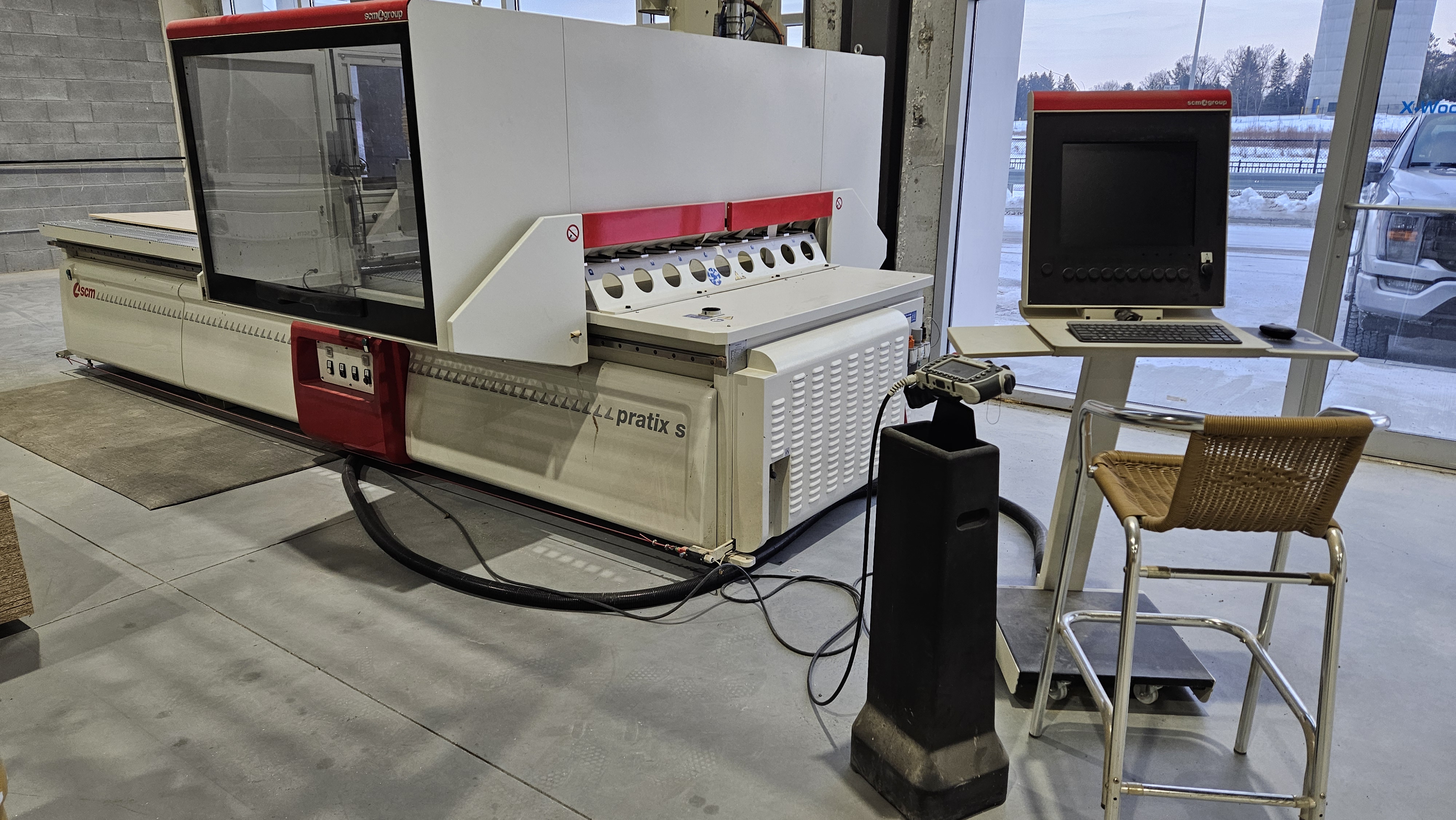

2015 SCM Pratix-S15B used Flat table CNC with offload rake. #BBM2859
2015 SCM Pratix-S15B used Flat table CNC with offload rake. #BBM2859
Location:Ontario, Canada
Description
SCM Pratix S CNC Machining Centre – 2013
Heavy-duty industrial CNC machining centre manufactured by SCM Group S.p.A., Italy, a leading manufacturer of woodworking and panel-processing machinery. The Pratix S series is designed for precision routing, drilling, milling and machining of wood, composite and panel products.
This machine offers a robust industrial platform suitable for cabinet, millwork, furniture, architectural woodworking and other production environments requiring repeatable CNC accuracy and productivity.
2013 model – SCM Italian-built industrial equipment. Available for inspection. Additional photographs, tooling and operating details can be provided upon request.
"note: click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"
Specifications
| Manufacturer | SCM |
| Model | Pratix-S15B used Flat table CNC with offload rake. |
| Year | 2015 |
| Condition | Used |

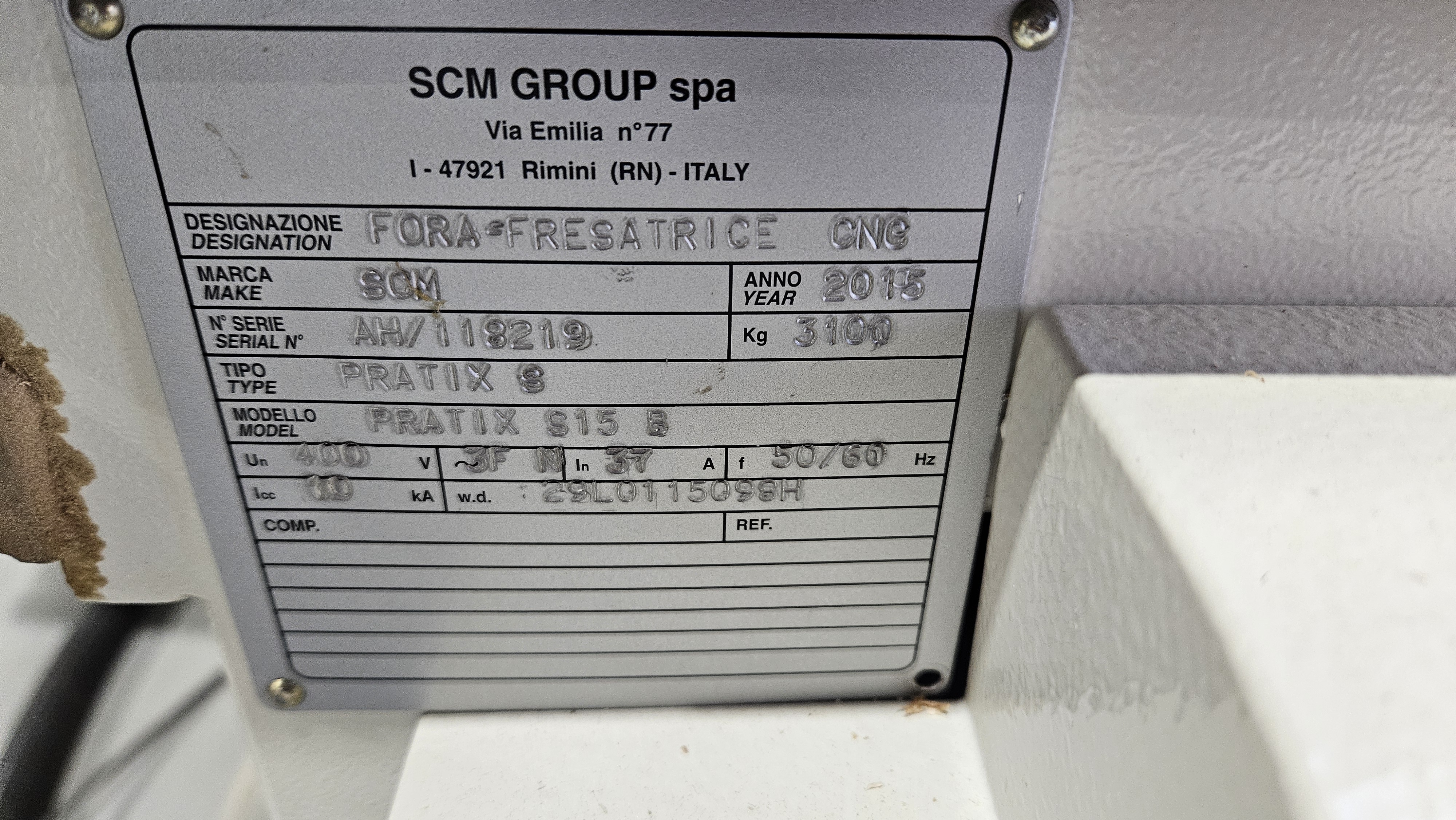

| Serial Number | AH/118219 |
| Stock Number | BBM2859 |
| Quality | Very Good |
| Automatic Tool Changer (ATC) Type | Linear |
| Number of Axes | 3-Axis |

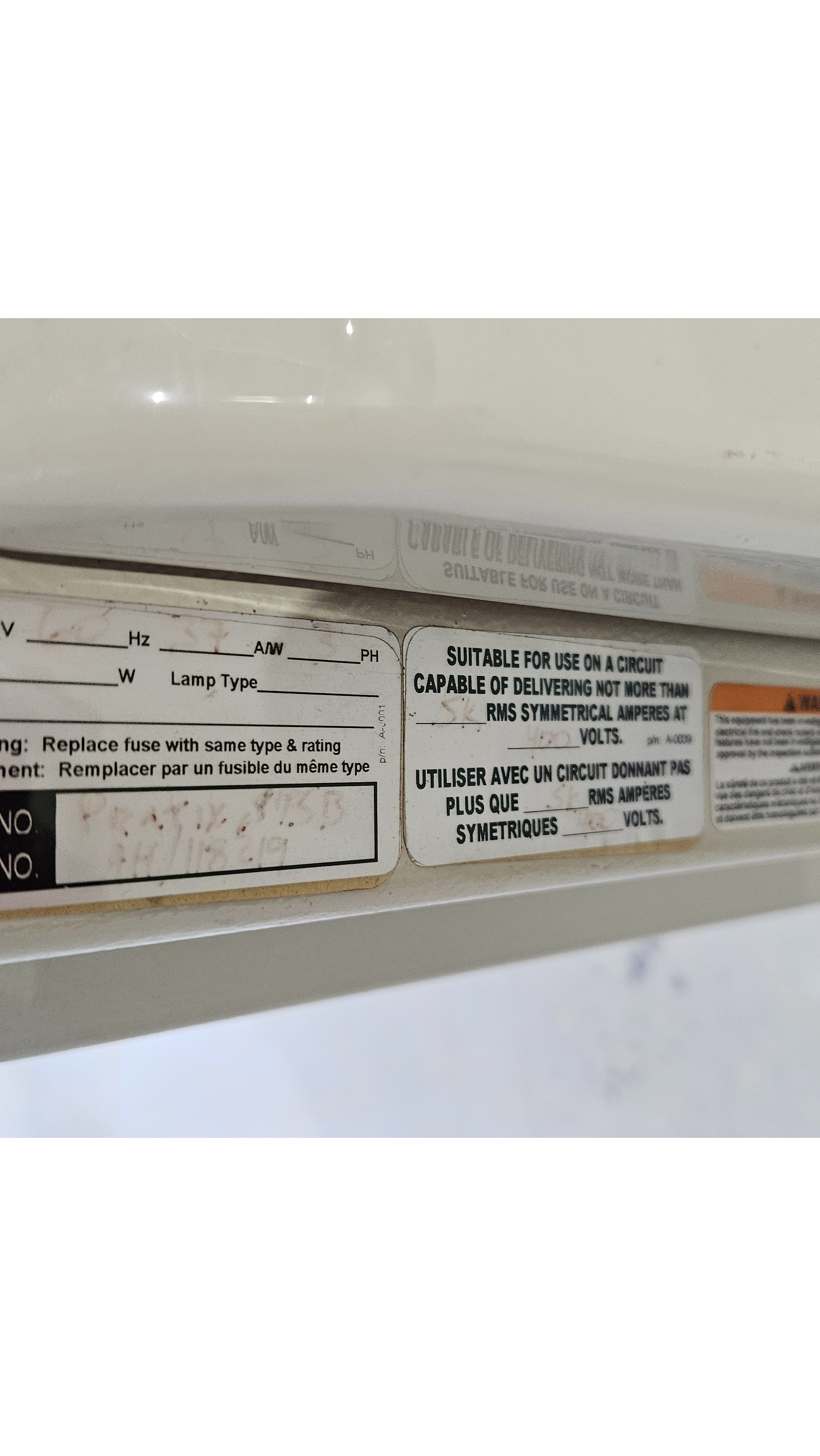

| Electrics | 575 V / 3 Ph / 60 Hz with transformer |
Additional Features

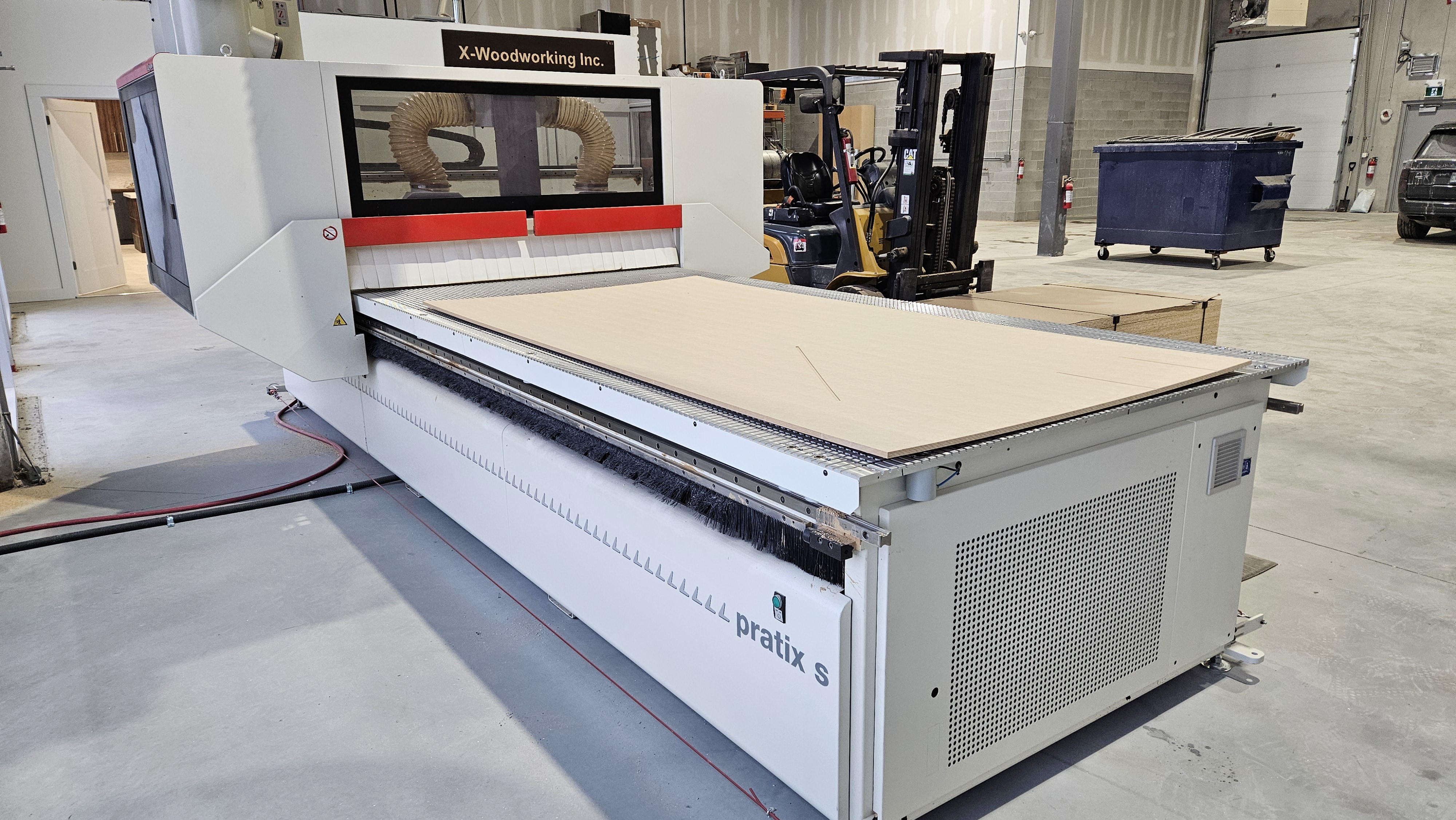

Aluminum 5' x 12' traveling "Bridge Gantry" and stationary dual-vacuum table with a "MATRIX" square grid pattern for fixturing parts; grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoilboards for "nested base machining"; part location pop-up pins mounted on the table perimeter.
Working area "X" Axis is 145.2" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.84" (250 mm); max. material thickness 4" (100 mm).
Max Positioning Speed: "X" & "Y" Axis at 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system with high precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screw in "Z" axis; all axes ride on extra large precision profile linear guideways.
Boring Head: 3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) spindles in "X" axis & (2) spindles in "Y" axis.
Main Spindle: (1) 9 HP (6.7 kW) Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM; (1) 10-position ATC tool rack mounted to RH side of the machine base.
PC Front-End with: "XILOG Plus" + Windows "XP Pro" operating system; 17" high resolution LCD; ergonomic keypad; CD ROM & 1.44 MB disk drives; USB ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible' all computer components are mounted on a mobile stand.
