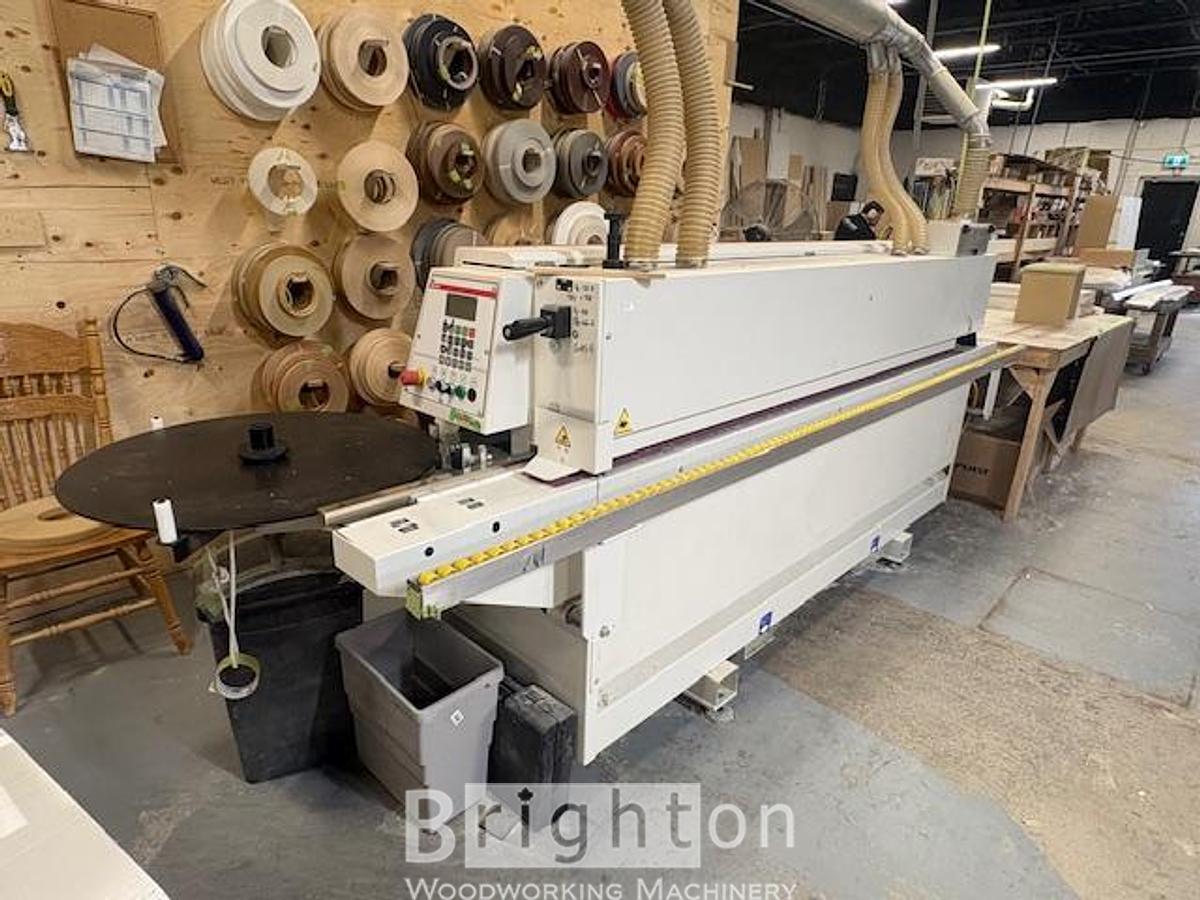

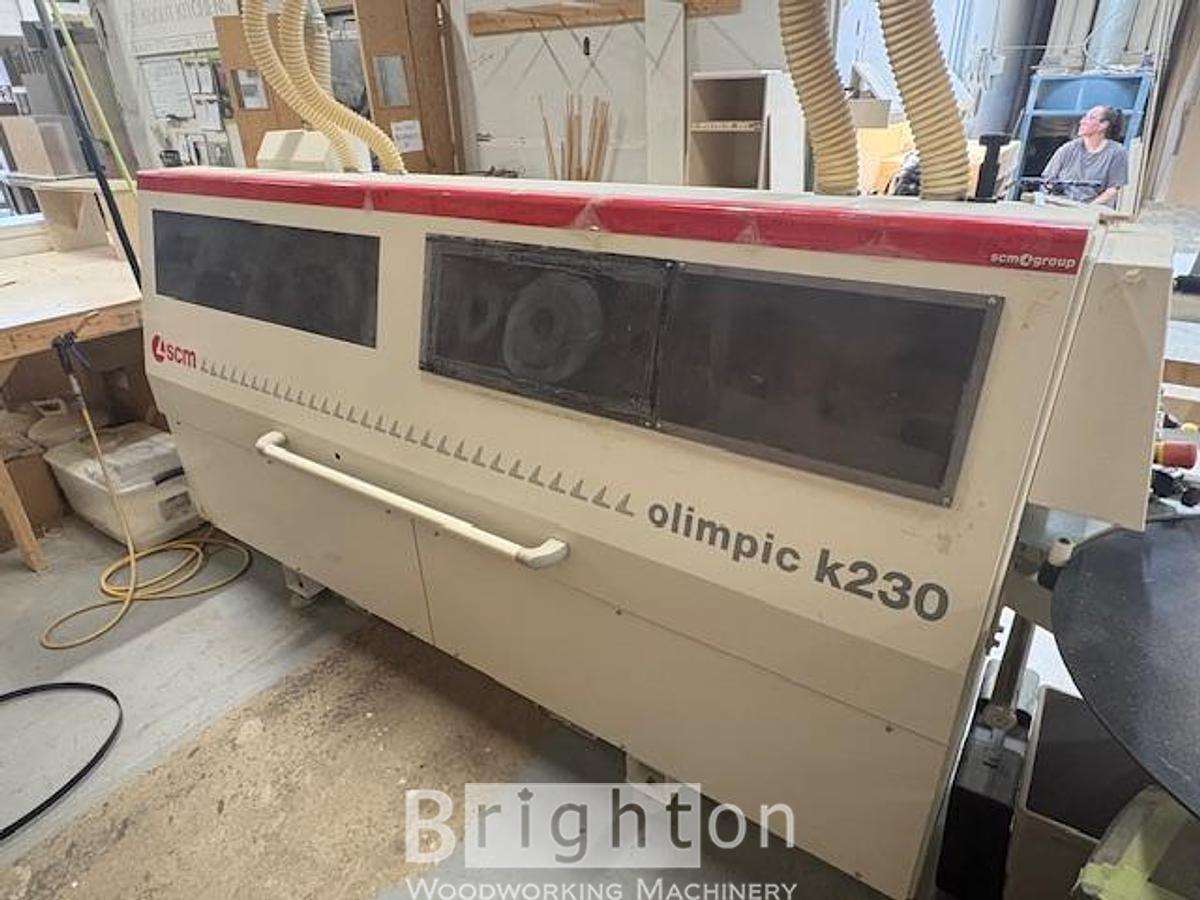

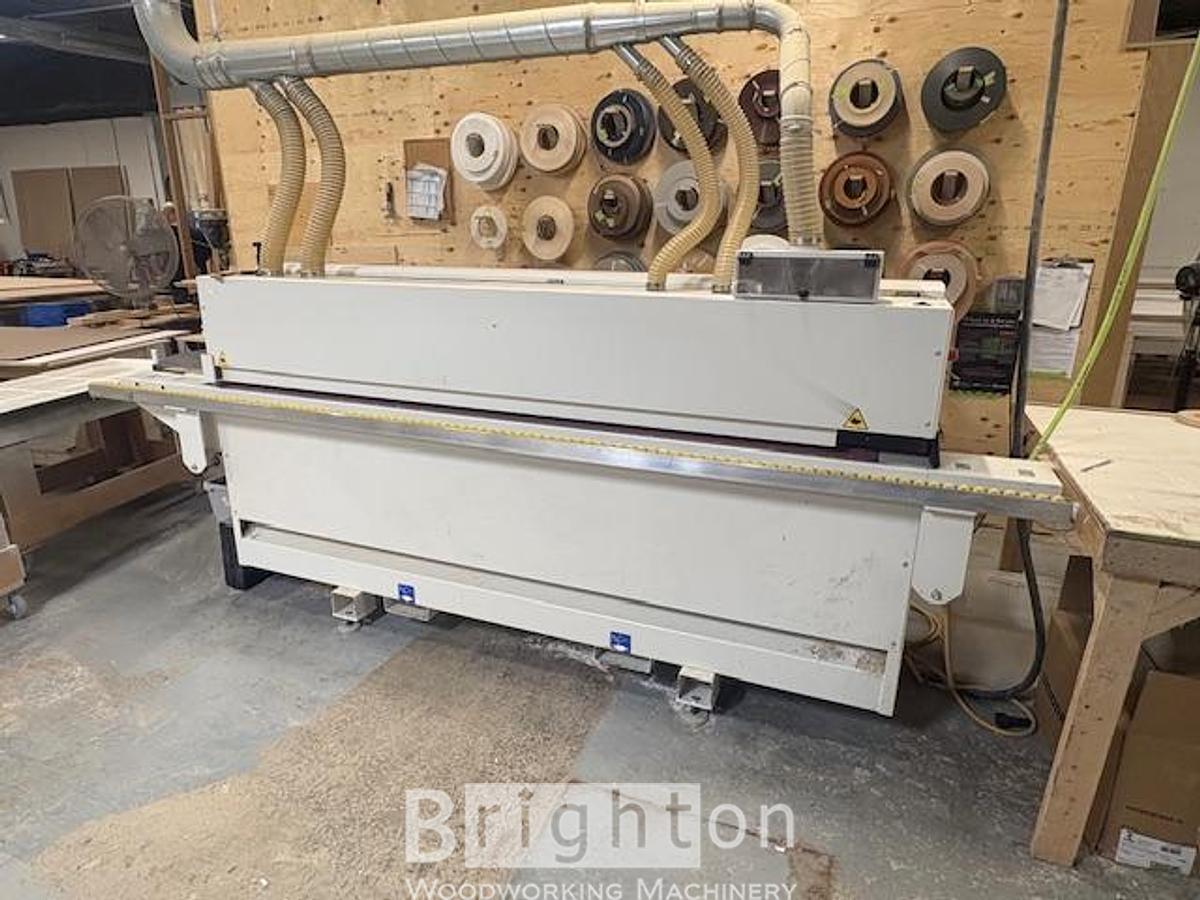

2014 SCM Single Phase, K230 used edgebander with premilling #BBM2855
2014 SCM Single Phase, K230 used edgebander with premilling #BBM2855
Location:Ontario, Canada
Description
This 2014, Single phase, SCM Olimpic K230 (with Pre-Milling) is a highly compact, single-sided automatic edgebander designed for small-to-medium cabinet shops seeking flawless panel finishes without sacrificing valuable shop floor space
Specifications
| Manufacturer | SCM |
| Model | Single Phase, K230 used edgebander with premilling |
| Year | 2014 |
| Condition | Used |
| Stock Number | BBM2855 |

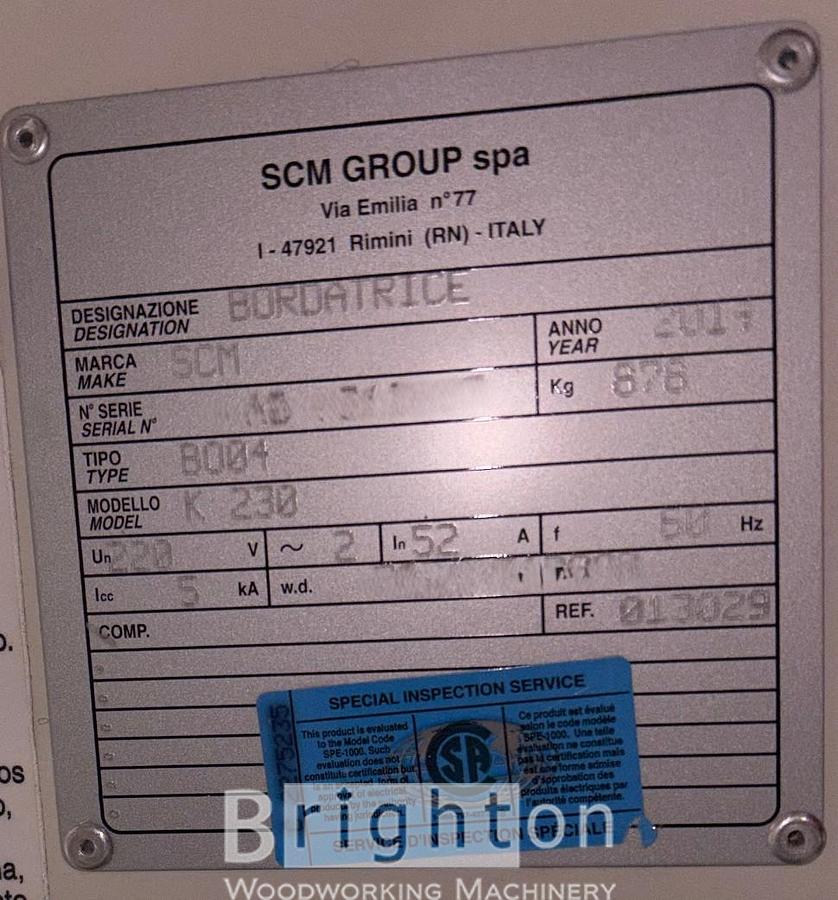

| Air & Electrical | Requires 6 bar (90 PSI) compressed air and 220V / single Phase power |
| Finishing Stations | Includes top/bottom profile scraping and buffing units |
| Top & Bottom Trimming | 0.7 HP motors (12,000 RPM) with quick-change tooling capability |
| End trimming | Dual 0.4 HP motors (12,000 RPM) that tilt from 0° to 15° |
| Glue Pot System | 1.5 kg Teflon-coated pot with quick 8–10 minute heat-up time |
| Panel Thickness Capacity(mm Min/Max) | 8 mm to 50 mm (0.3" to 1.96") |
| Edge Thickness Capacity (mm Min/Max) | 0.4 mm to 3.0 mm (coils or solid wood strips) |
| Feed Speed | 9 m/min (approx. 29.5 feet per minute) |
| Glue System | EVA |
| Pre-Milling Unit | 2 Motor |
Additional Features
Why Buy This Used 2014 SCM K230?
Stop Wasting Hours on Pre-Routing and Hand-Sanding
If you are still hand-sanding chip-out from your slider or CNC, this machine is your ultimate solution. The integrated Pre-Milling station acts as a built-in jointer, trimming away a fraction of a millimeter right before glue application. It completely eliminates micro-chipping, panel swelling, and minor sizing errors. You get an absolutely invisible glue line on every single panel, even on notoriously difficult high-gloss or textured materials.
Industrial Power, Compact Footprint

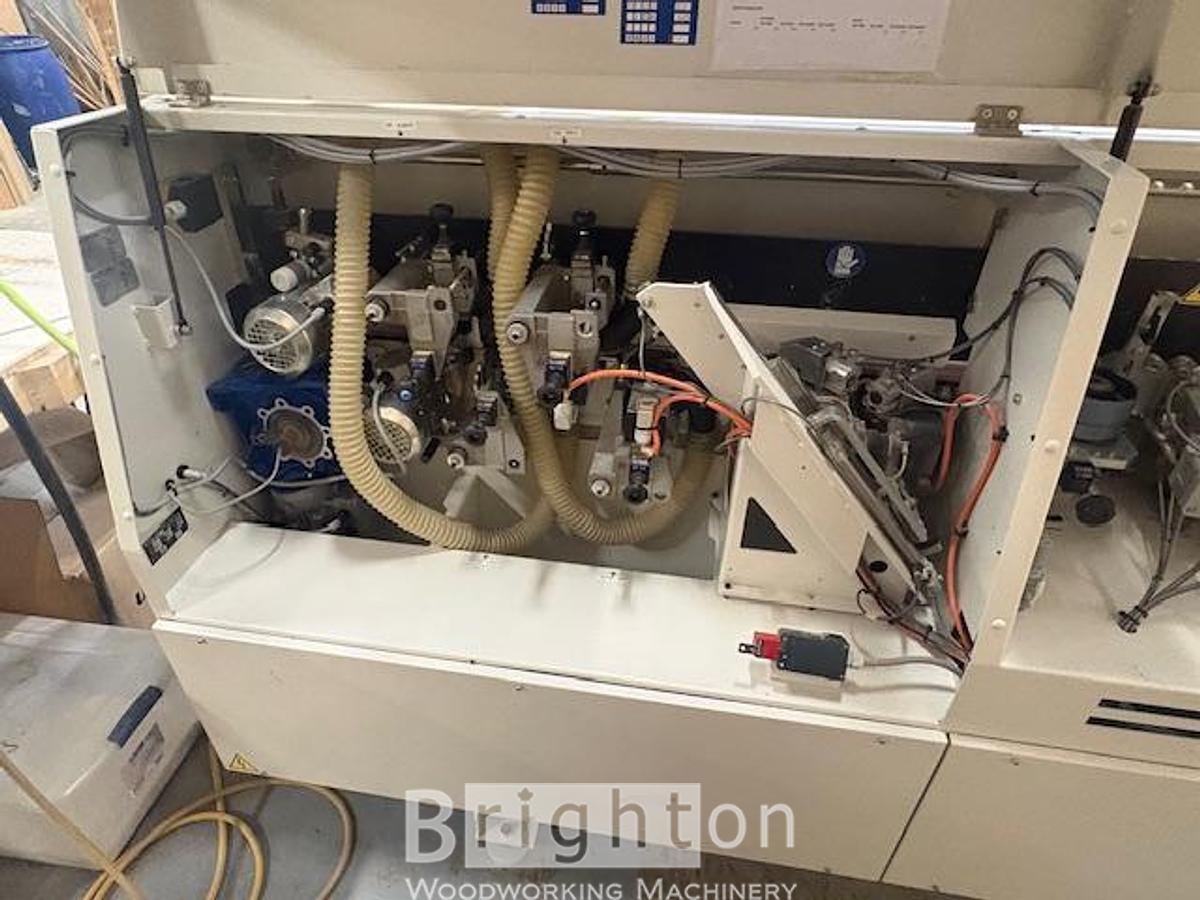

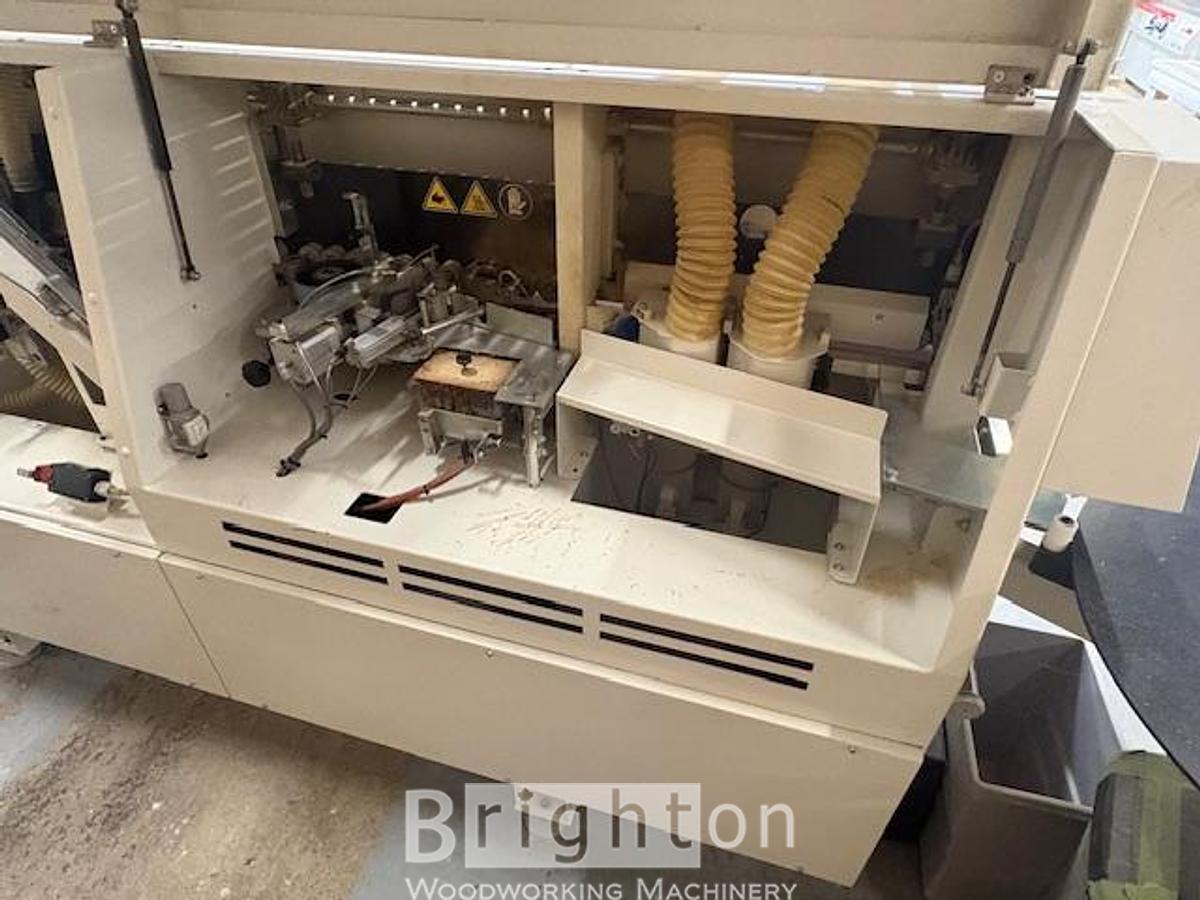

Most edgebanders with pre-milling are massive, industrial behemoths that demand massive floor space. SCM engineered the Olimpic K230 to pack a full suite of working units—Pre-Mill, Glue, End Trim, Top/Bottom Trim, Scraping, and Buffing—into a compact frame that rolls effortlessly into tight shop layouts.
Patented Precision Engineering
Unlike competitor models that rely on low-budget chain feeds, the K230 utilizes SCM’s patented track-feed system. This continuous track eliminates the rhythmic indexing pulsing common in lower-end machines, ensuring a perfectly smooth, continuous feed and entirely eliminating gouges or chatter marks on delicate finishes.
The Smarter Used Investment
Buying a 2014 model means skipping the steep depreciation curve of a brand-new machine while securing proven, mechanical reliability. SCM parts are highly accessible globally, and the straightforward Orion One Plus controller is famously simple to troubleshoot—no complex software or expensive computer technicians required to keep production moving. Upgrading to this machine means immediate, professional edgebanding results from the very first day it lands on your floor.
