Cantek AF38 used stock feeder #BBM2854
Cantek AF38 used stock feeder #BBM2854
Location:Ontario, Canada
Description

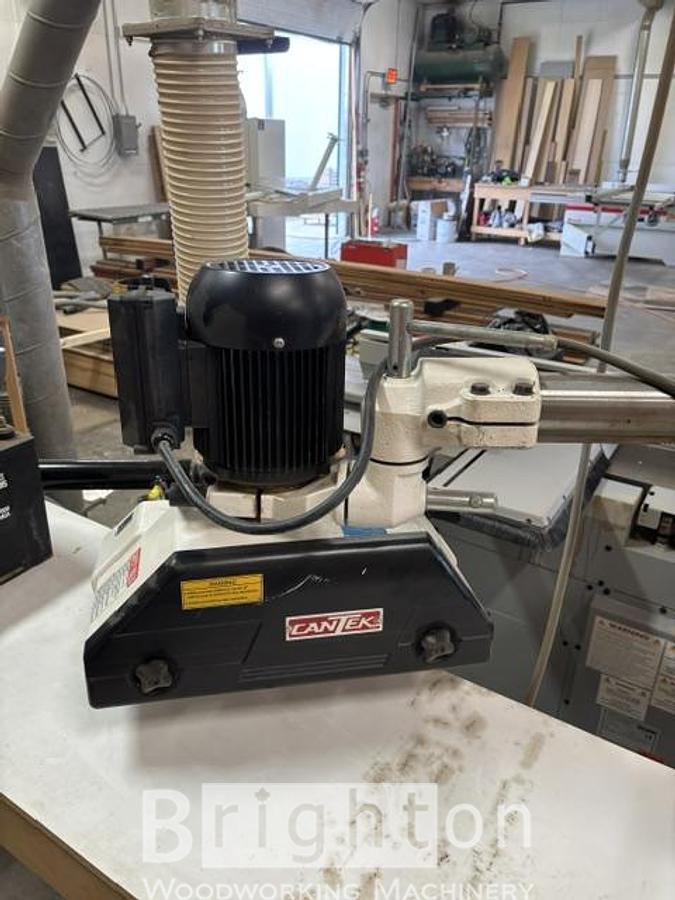

The Cantek AF38 used stock feeder is an efficient machine in very good condition and designed to facilitate smooth feeding operations in woodworking environments. It features a 1hp motor and operates with three abrasion-resistant, non-marking rubber rollers. The rollers have dimensions of 4-3/4 inches in diameter and 2-3/8 inches in width, equipped with a spring-loaded suspension for consistent pressure and contact with materials. This feeder offers versatility with forward and reverse rotation capabilities and standard feed speeds ranging between 6.5 to 108 feet per minute, distributed over 8 settings to accommodate varying operational needs. The system is supported by a heavy-duty universal joint stand that allows for horizontal, vertical, or angled feeding modes, ensuring adaptability to different machine setups. Electrical configurations for the Cantek AF38 can be adjusted for different voltage and phase requirements operating at 60 Hz. The total net weight of the unit, including the mounting stand, is approximately 139 lbs, with the feeder body weighing around 64 lbs and the stand approximately 75 lbs. This robust feeder is a reliable choice for enhancing automation in material handling tasks.
Specifications
| Manufacturer | Cantek |
| Model | AF38 used stock feeder |
| Condition | Used |
| Stock Number | BBM2854 |
| Quality | Very Good |
| Electrics | V / Ph / 60 Hz |
| Motor | 1hp |
| Number of Rollers | 3 abrasion-resistant, non-marking rubber rollers |
| Roller Dimensions | Φ 4-3/4" x 2-3/8" (120 mm x 60 mm) |
| Roller Suspension | 3/4" (18 mm) spring-loaded travel |

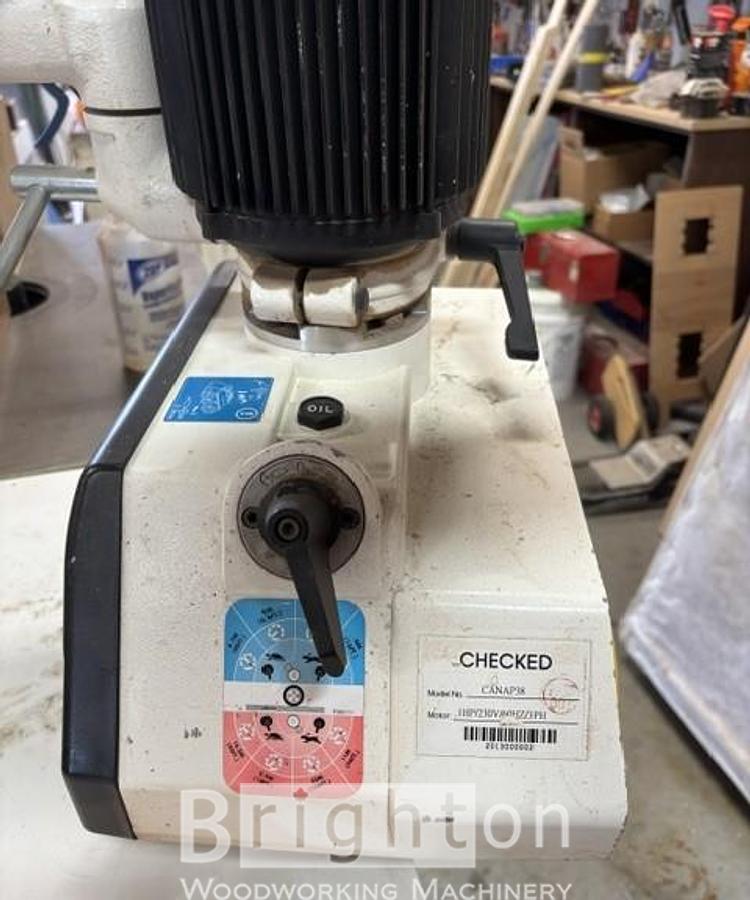

| Standard Feed Speeds (60Hz) | 8 speeds: 6.5, 13, 18, 22, 36, 43, 55, and 108 FPM |
| Rotation | Forward and Reverse |

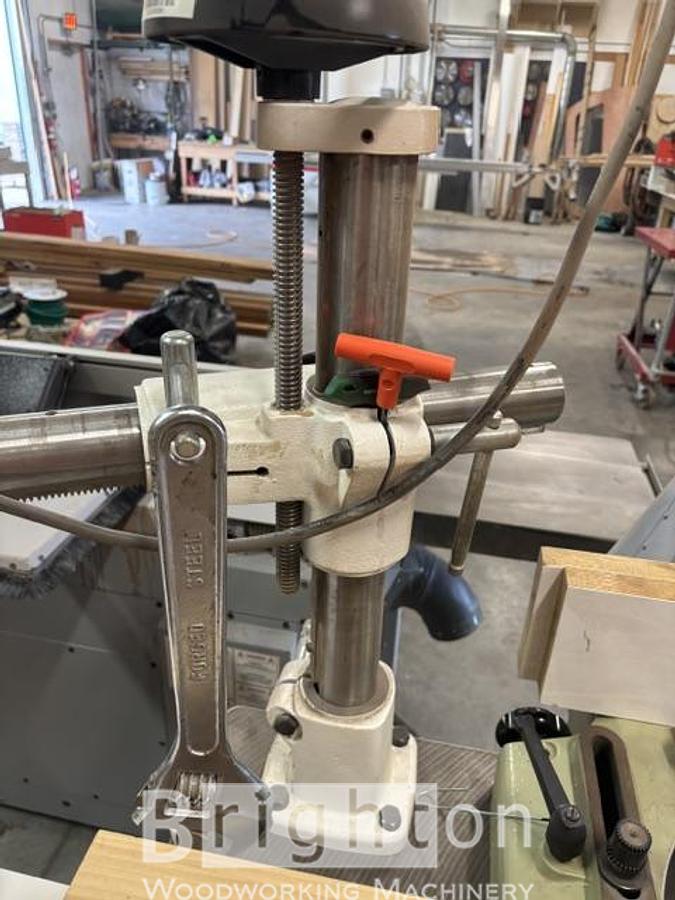

| Mounting Stand | Includes a heavy-duty universal joint stand for horizontal, vertical, or angled feeding |
| Net Weight | ~139 lbs total (Body: 64 lbs / Stand: 75 lbs) |
Additional Features
"Stop pushing wood by hand and risking uneven finishes or dangerous kickbacks.
This Cantek AF38 3-Roll Power Feeder is the ultimate upgrade for your shaper, router table, or table saw. Driven by a beefy 1 HP motor, it delivers relentless, uniform pressure that completely eliminates hand-fed ripples, snipe, and chatter marks.Unlike basic 2-speed or 4-speed feeders that force you to pull the machine apart to change gears, the AF38 gives you 8 quick-shift speeds right out of the box—ranging from a precise 6.5 FPM for complex molding profiles to a fast 108 FPM for ripping lumber.
Equipped with three independent, spring-loaded non-marking rollers and a heavy-duty universal stand, you can transition from feeding flat stock to holding wood tight against a vertical shaper fence in seconds. It’s built like a tank with steel gears, runs in forward and reverse, and works perfectly. Buying new will cost you significantly more—get industrial-grade consistency and peace of mind today for a fraction of the price!"
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
