2004 SCM Win CS63 used widebelt sander #BBM2851
2004 SCM Win CS63 used widebelt sander #BBM2851
Location:Ontario, Canada
Description
This 2004 SCM Win CS63 widebelt sander is a used machine available in very good condition, offering reliable performance for woodworking needs. It features a working width of approximately 630 mm and accommodates thicknesses from 3 mm to 160 mm. The sander is equipped with a combination roller and sanding shoe, known as the CS configuration, providing versatile sanding options. Powerful enough for demanding tasks, it operates with a 10hp main motor and requires an electrical supply of 600V / 3Ph / 60 Hz. Its abrasive belt measures 1550 mm by 640 mm, facilitating efficient material removal. The feed speed can be adjusted either in two stages or with a variable feed option, ranging from approximately 4.5 to 9 meters per minute (or 15 to 30 feet per minute). With an approximate weight of 1400 lbs, this widebelt sander is a solid choice for professional woodworking operations requiring precise control and excellent finish quality.
Specifications
| Manufacturer | SCM |
| Model | Win CS63 used widebelt sander |
| Year | 2004 |
| Condition | Used |
| Stock Number | BBM2851 |
| Quality | Very Good |

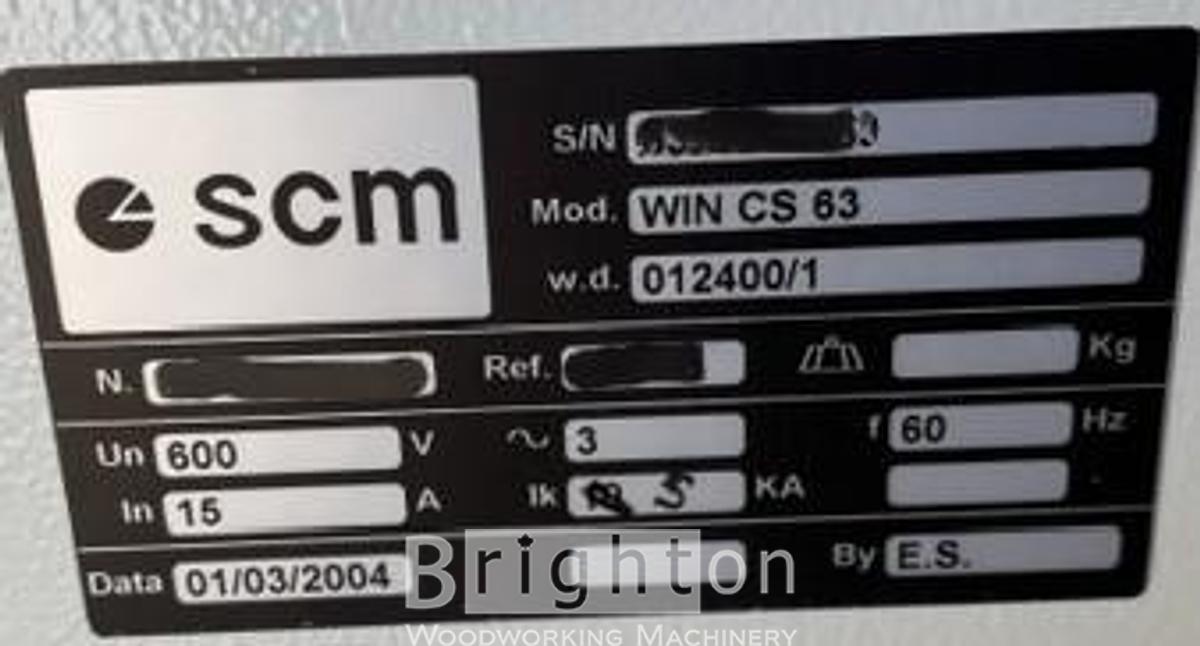

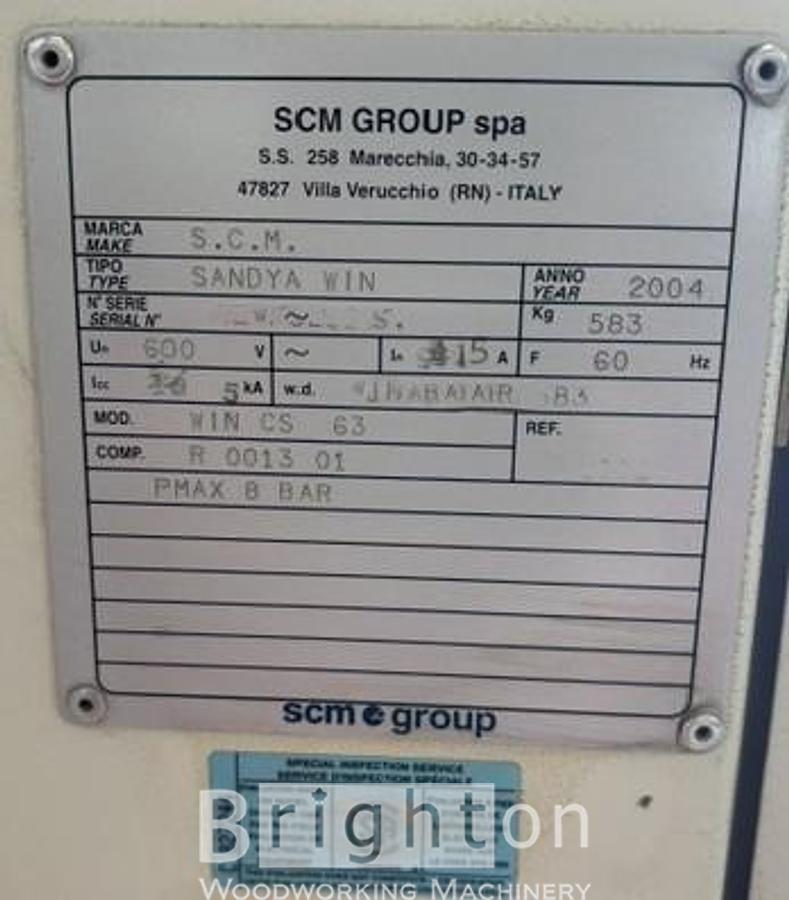

| Electrics | 600V / 3Ph / 60 Hz |
| Working Width | 630 mm (approx. 24–25 inches) |
| Working Height / Thickness | 3 mm to 160 mm |
| Sanding Unit | Combination roller and sanding shoe (CS configuration) |
| Abrasive Belt Size | 1550 mm x 640 mm |
| Feed Speeds | Two-stage or variable feed, roughly 4.5 to 9 m/min (15–30 FPM) |
| Main Motor Power | 10hp |
| Approximate Weight | 1400 lbs |
Additional Features
Why Buy a Used SCM Win CS63?
Industrial Build Quality in a Small Footprint:
Don't let the compact size fool you. SCM designs their machinery with heavy-gauge steel and precise engineering, giving you production-shop results without requiring a massive factory floor.
The "CS" Combo Advantage:
Featuring both a contact roller and a smoothing pad shoe, this single head does double duty—rapidly calibrating rough stock down to exact thickness and delivering a polish-ready surface on solid wood or veneered panels.
Reliable European Pedigree:
SCM equipment maintains strong long-term market value because parts, documentation, and technical support remain accessible through SCM Group compared to obscure or defunct brands.Perfect for Growing Shops: An ideal upgrade from a slow drum sander or time-consuming hand-stroking, boosting your panel and face-frame output overnight
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
