2006 Biesse Rover B 4.40 FT used flat table nesting CNC #BBM2844
2006 Biesse Rover B 4.40 FT used flat table nesting CNC #BBM2844
Location:Ontario, Canada
Description

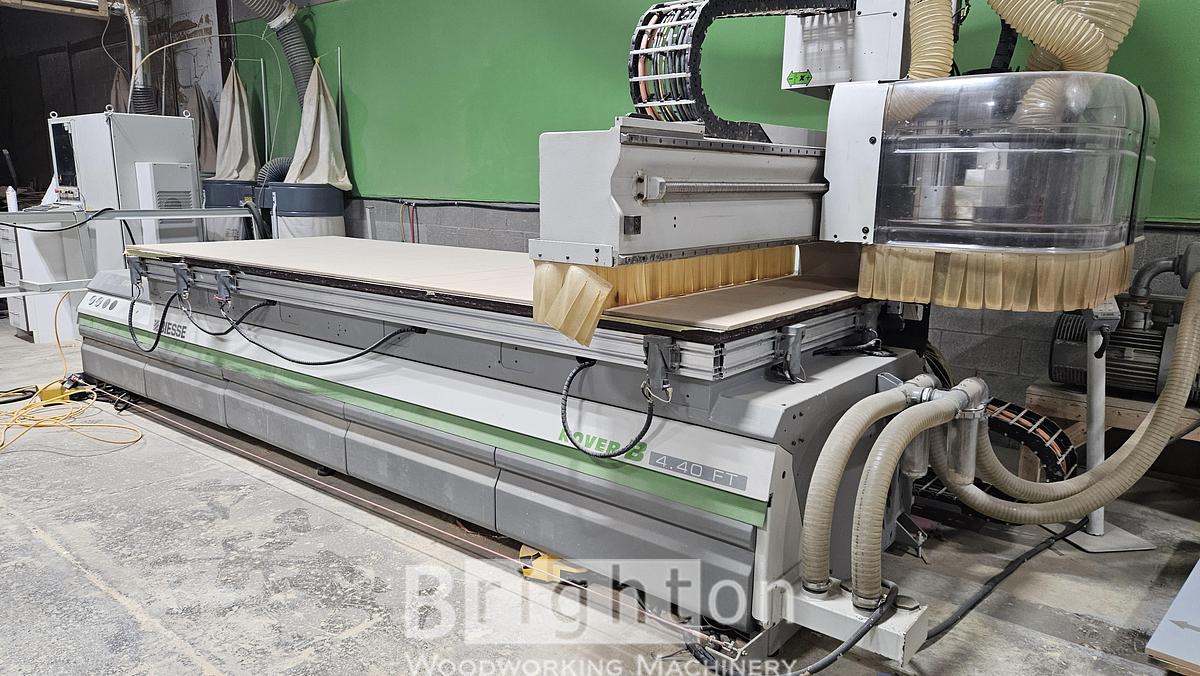

This 2006 Biesse Rover B 4.40 FT is a heavy-duty, flat-table nested-based CNC machining center engineered for high-efficiency panel processing and cabinetry
Specifications
| Manufacturer | Biesse |
| Model | Rover B 4.40 FT used flat table nesting CNC |
| Year | 2006 |
| Condition | Used |
| Stock Number | BBM2844 |

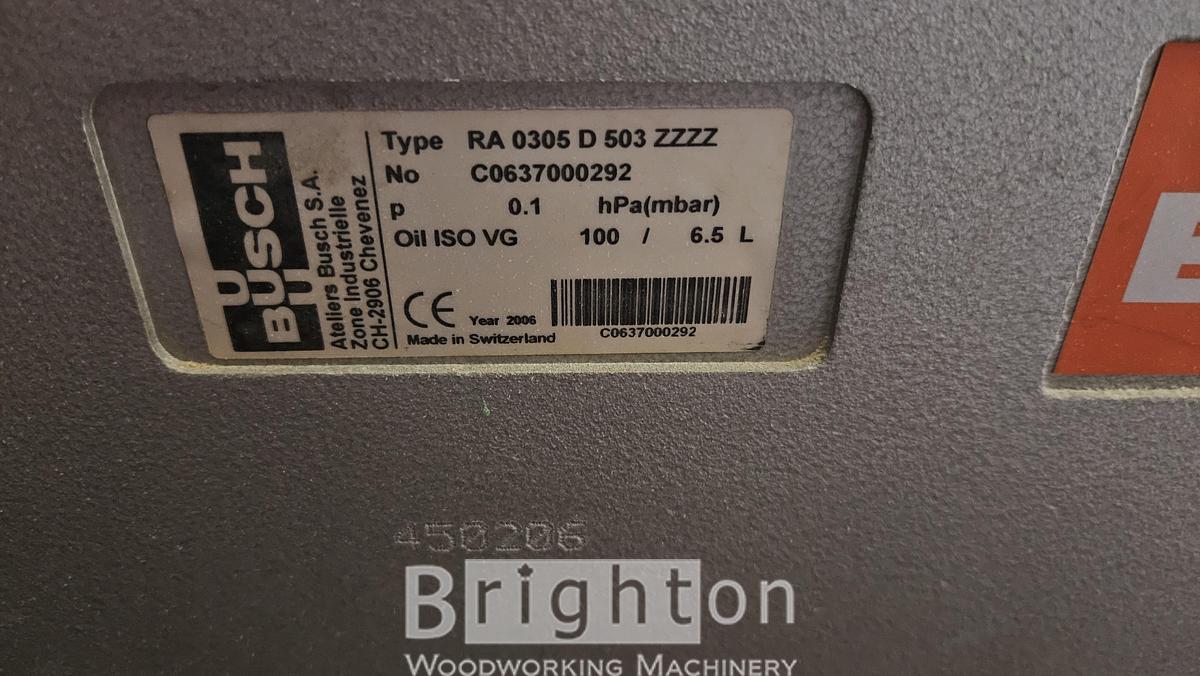

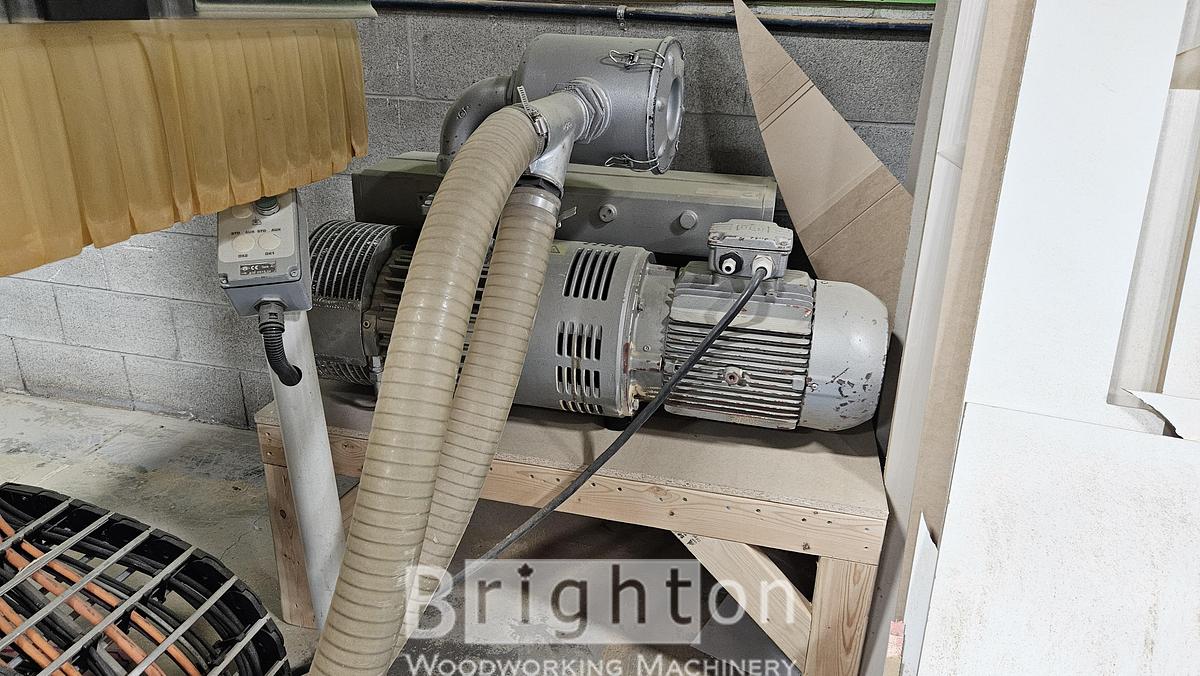

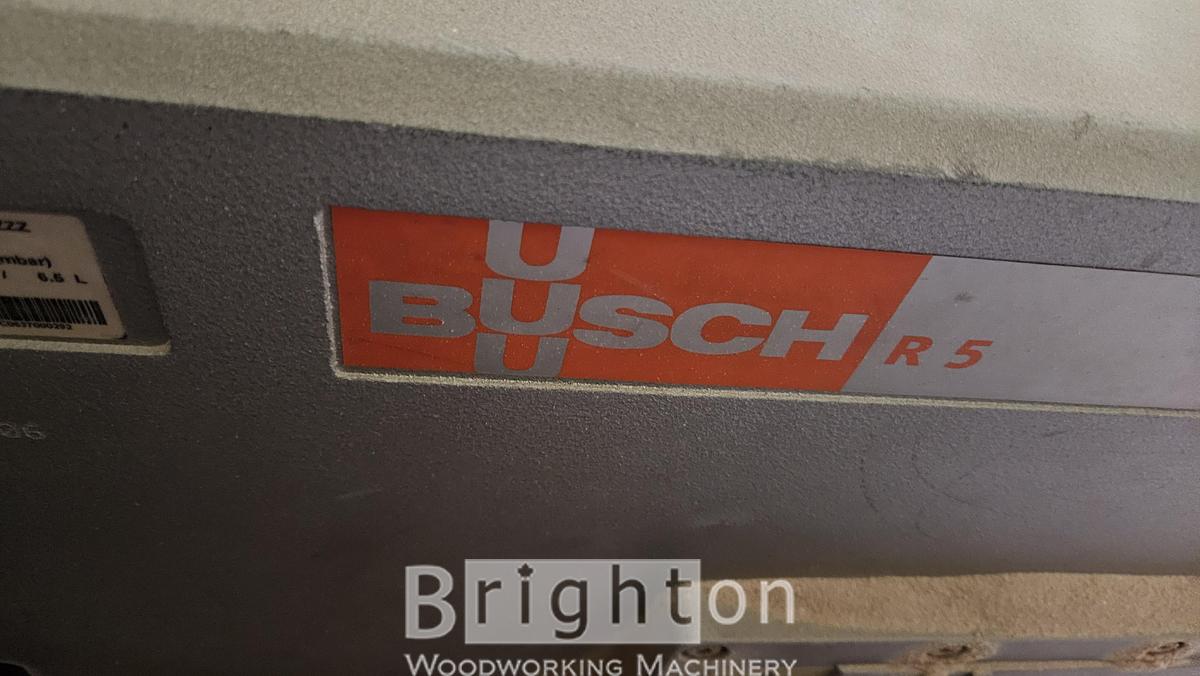

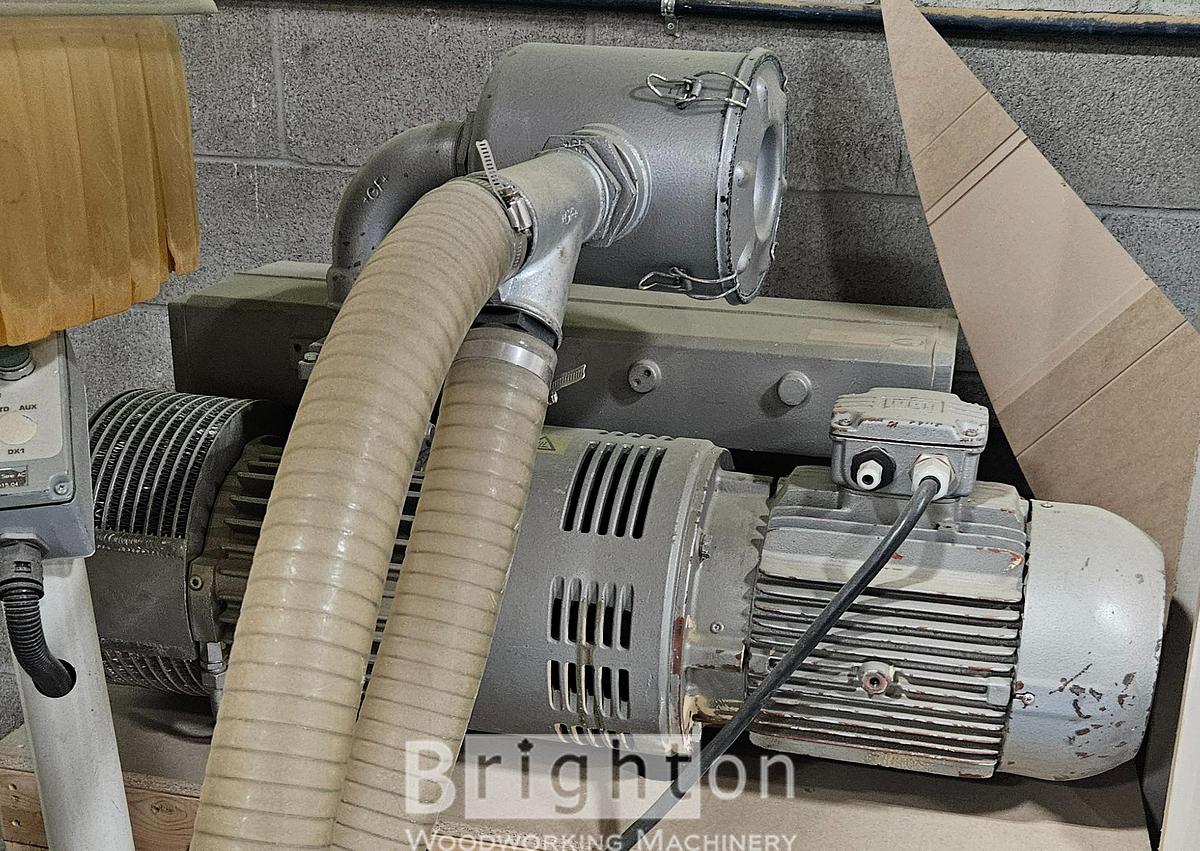

| Part Hold Down | High-capacity Busch vacuum pump system (10 HP / 250 m³/h+) |
| Working Area / Table Size (X × Y) | X-axis approx. 145″ (3685 mm), Y-axis 54.3″ (1380 mm), Z-axis stroke approx. 5.9″ to 6.3″ (150–160 mm). High-flow single/multi-zone precision-machined Bakelite flat nesting table with pneumatic reference pin stops. |
| Number of Axes | 3-Axis |
| Table / Workholding Type | Flat vacuum |

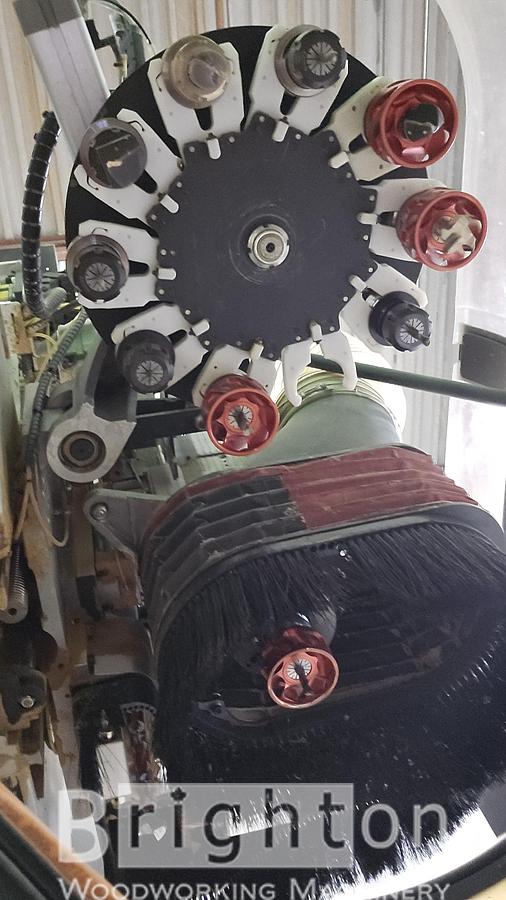

| Automatic Tool Changer (ATC) Type | Carousel |
| ATC number of positions | 10 position automatic tool changer. |
| Z-Axis Travel / Working Height | Z-axis stroke approx. 5.9″ to 6.3″ (150–160 mm) |
| Drilling / Boring Head | Independent vertical and horizontal drilling spindles (12 vertical independent spindles and 4 horizontal drills) |

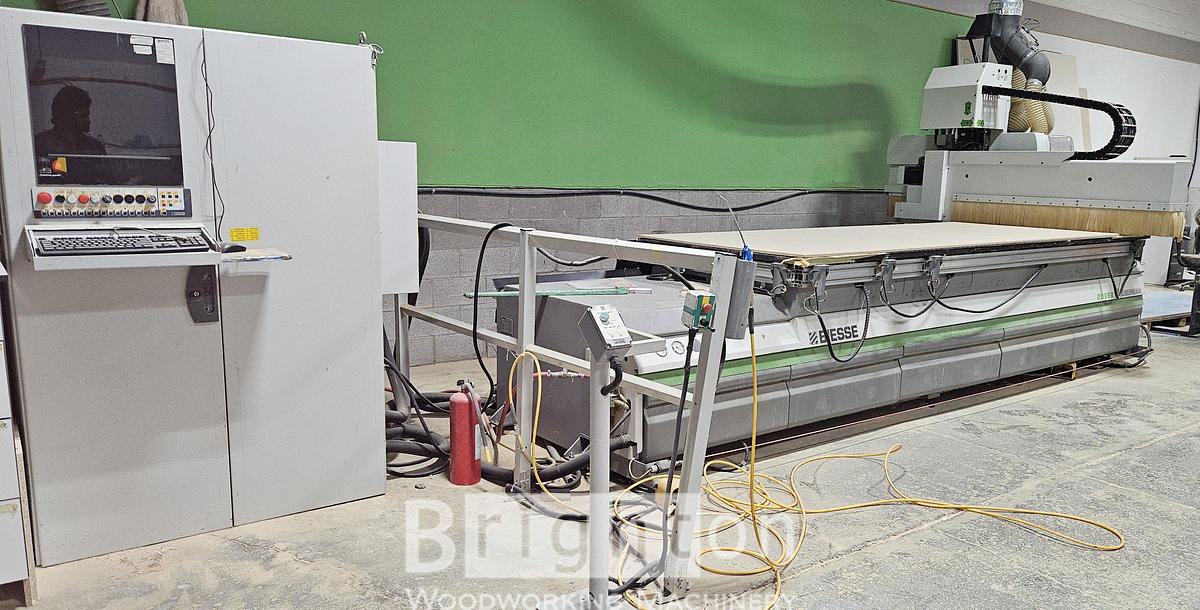

| Control & Software | PC-driven NC control (CNI XP600 or similar numerical control) running Windows-based interface, compatible with major CAD/CAM software like Cabinet Vision, Mozaik or AlphaCAM |
Additional Features
Transform Your Production Floor Without Breaking the Bank:
Are you losing profit to material waste and slow manual handling? Step up your output with the 2006 Biesse Rover B 4.40 FT, a legendary Italian-built workhorse designed to dominate nested-based manufacturing.
Maximum Yield, Minimum Waste:

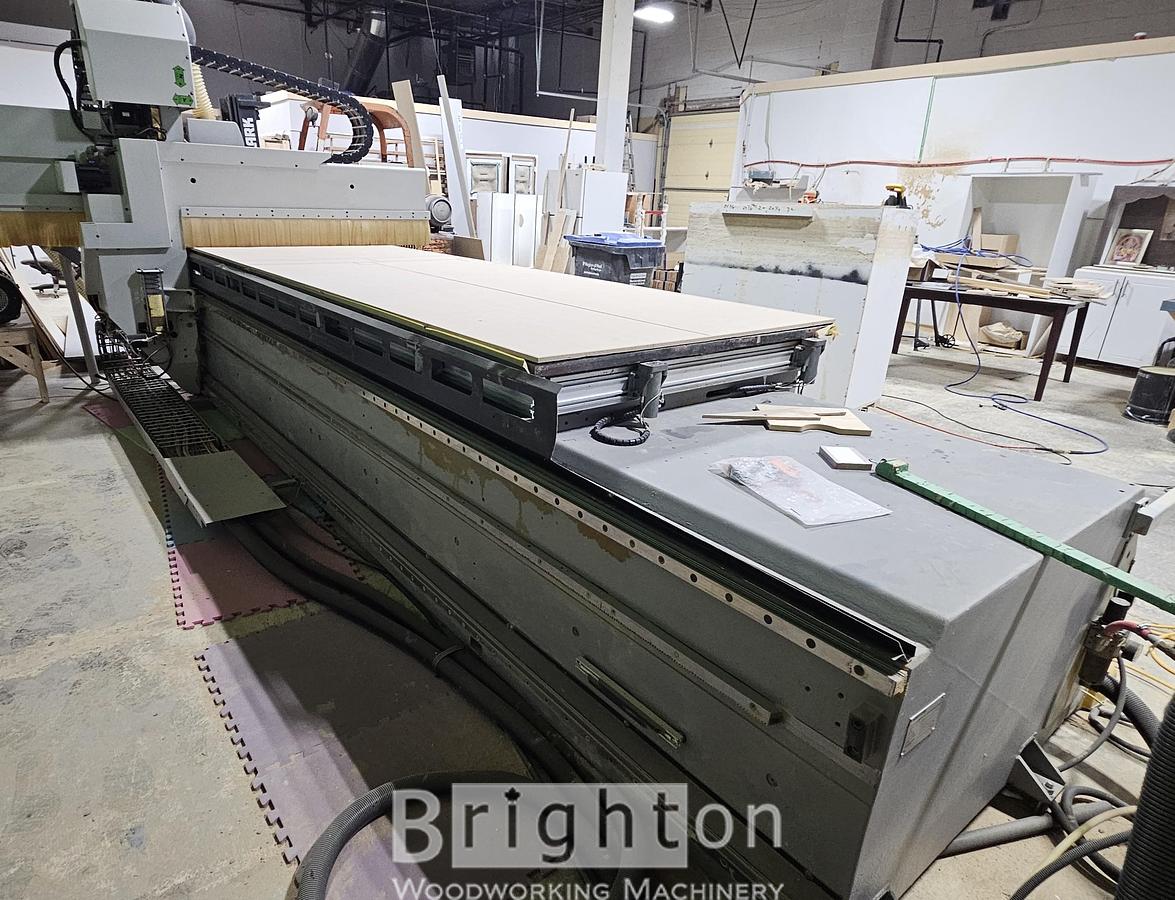

The high-flow vacuum nesting table locks full-sized sheets in place, letting you nest multiple parts, cut complex shapes, and drill vertical/horizontal holes in one seamless cycle.
Built Like a Tank:
Unlike lighter entry-level routers, the rigid structural steel and heavy gantry design of the Rover B absorb high-speed acceleration forces day in and day out, ensuring pristine edge finishes and precise tolerances year after year.
Proven Reliability:
Powered by a trusted HSD electrospindle and quick 10-position ATC, this machine transitions effortlessly from heavy profiling to delicate boring without missing a beat.
