2004 Thermwood CS40 used 5 x 10 flat table cnc #BBM2842
2004 Thermwood CS40 used 5 x 10 flat table cnc #BBM2842
Location:Ontario, Canada
Description
The 2004 Thermwood CS40 is a robust used CNC router with a 5 x 10 ft table, built for demanding industrial applications like precision nesting, cabinetry, and more. With a 3-axis moving-table design, it offers versatility for machining plastics and non-ferrous metals. This machine is equipped with a high-frequency spindle delivering up to 10.5 HP, capable of speeds from 3,000 to 24,000 RPM, ensuring efficient and accurate operations.
Specifications
| Manufacturer | Thermwood |
| Model | CS40 used 5 x 10 flat table cnc |
| Year | 2004 |
| Condition | Used |
| Stock Number | BBM2842 |
| Working Area / Table Size (X × Y) | 5ft x 10ft |
| Number of Axes | 3-Axis |
| Table / Workholding Type | Flat vacuum |
| Automatic Tool Changer (ATC) Type | Linear |
| ATC number of positions | 7 |
| Z-Axis Travel / Working Height | 8.8 inches |
| Spindle Power | 10.5 HP HSD BT30 high-frequency variable speed spindle (3,000–24,000 RPM) |
| Maximum Spindle Speed | 24,000 RPM |
| Control & Software | Thermwood Model 91000 SuperControl (running on dedicated industrial hardware/Windows environment) |

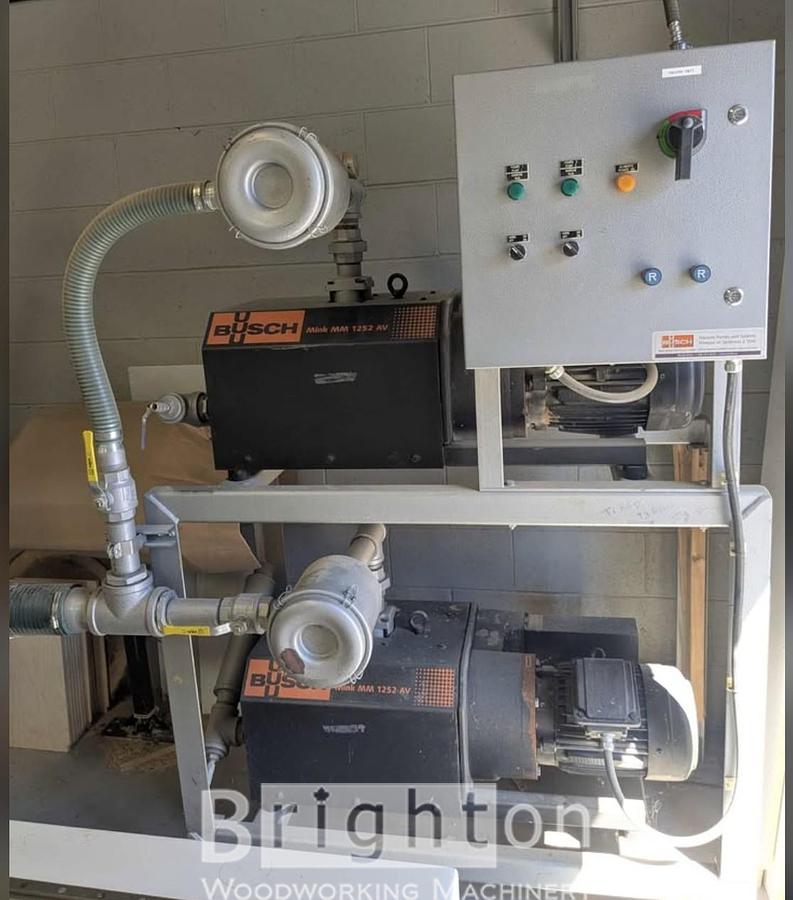

| Part Hold-Down | High-flow vacuum table configuration (paired with dual 7.5 HP Busch vacuum pumps) |

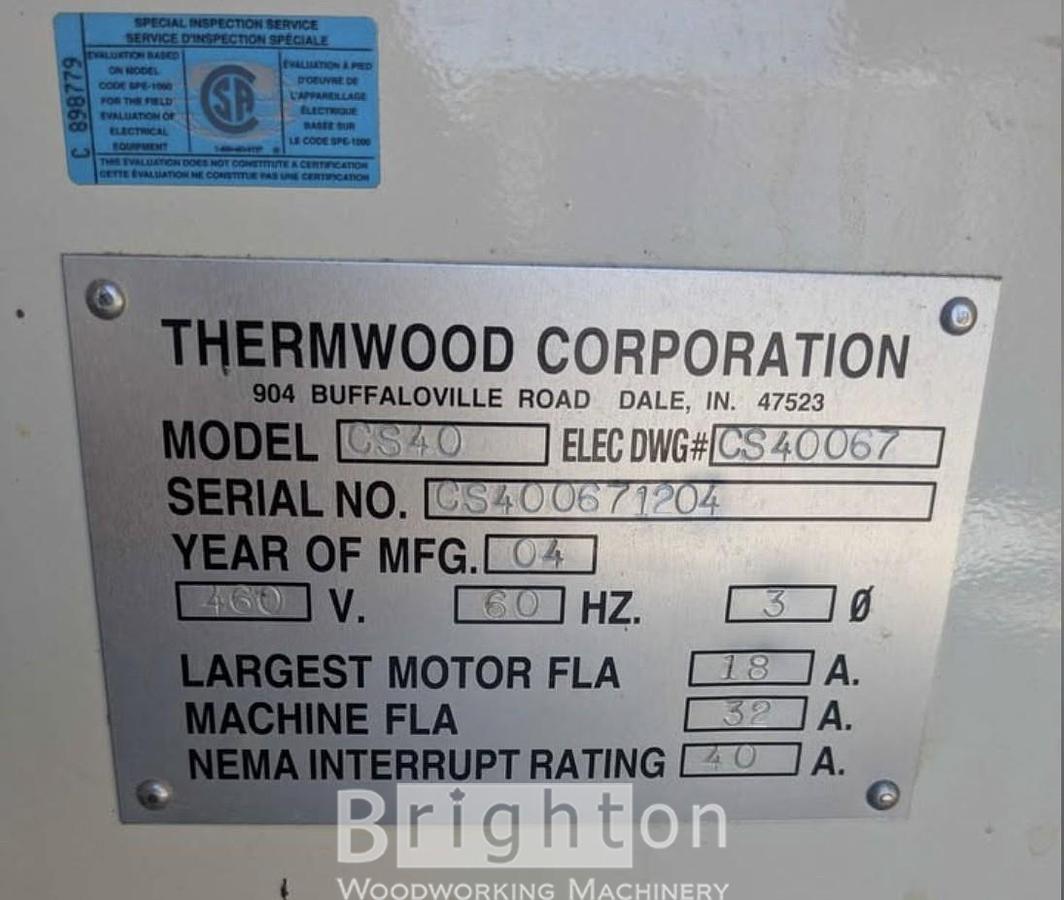

| Electrics | 460 volt, 3 phase machine. Comes with transformers. Can also negotiate Electrical wiring / Shutoff components with purchase |
Additional Features
Industrial Might Meets Proven Reliability:
Stop wasting time on lightweight, hobbyist CNC frames that flex under heavy loads. The Thermwood CS40 is built like a tank from solid, stress-relieved structural steel, weighing in at a massive 9,000 pounds. That dead-weight stability eliminates vibration, allowing you to push feed rates up to 2,100 IPM while maintaining absolute edge-cutting accuracy shift after shift.
Premium Power and Smart Nesting
Equipped with a punchy 10.5 HP HSD spindle, this machine carves through solid woods, dense MDF, plastics, and composites with effortless torque. The generous 5' x 10' vacuum bed grips full-sized sheets tightly, drastically reducing material waste through optimal software nesting. Coupled with an automatic tool changer and automated tool-length measuring, setup times between complex routing operations shrink to near zero.

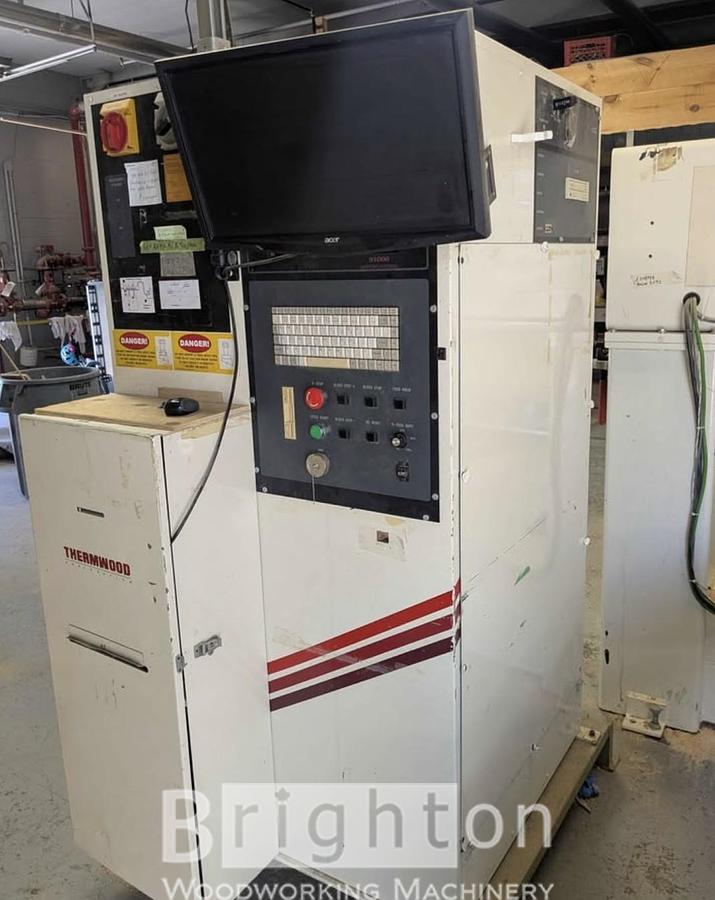

The Legendary Thermwood SuperControl
At the heart of this machine is the robust Thermwood 91000 SuperControl. Unlike generic PC-interfaced retrofits, this proprietary controller is purpose-built for high-speed multi-axis routing—delivering smooth, chatter-free motion curves, massive part program storage, and absolute reliability.
Upgrade and Turnkey Value
Investing in a pre-owned 2004 CS40 gives you tier-one industrial manufacturing capability at a fraction of the cost of a new machine. Many used models feature upgraded solid-state drives (SSD) and refreshed flat-screen interfaces, meaning you get heavy-duty factory performance ready to plug in, load up, and start making chips immediately
