1999 Diehl ESL 20 II used Straightline Ripsaw #BBM2840
1999 Diehl ESL 20 II used Straightline Ripsaw #BBM2840
Location:Alberta, Canada
Description
G. M. Diehl Machine Works ESL-20 is a heavy-duty, precision straight-line ripsaw engineered for glue-joint accuracy.

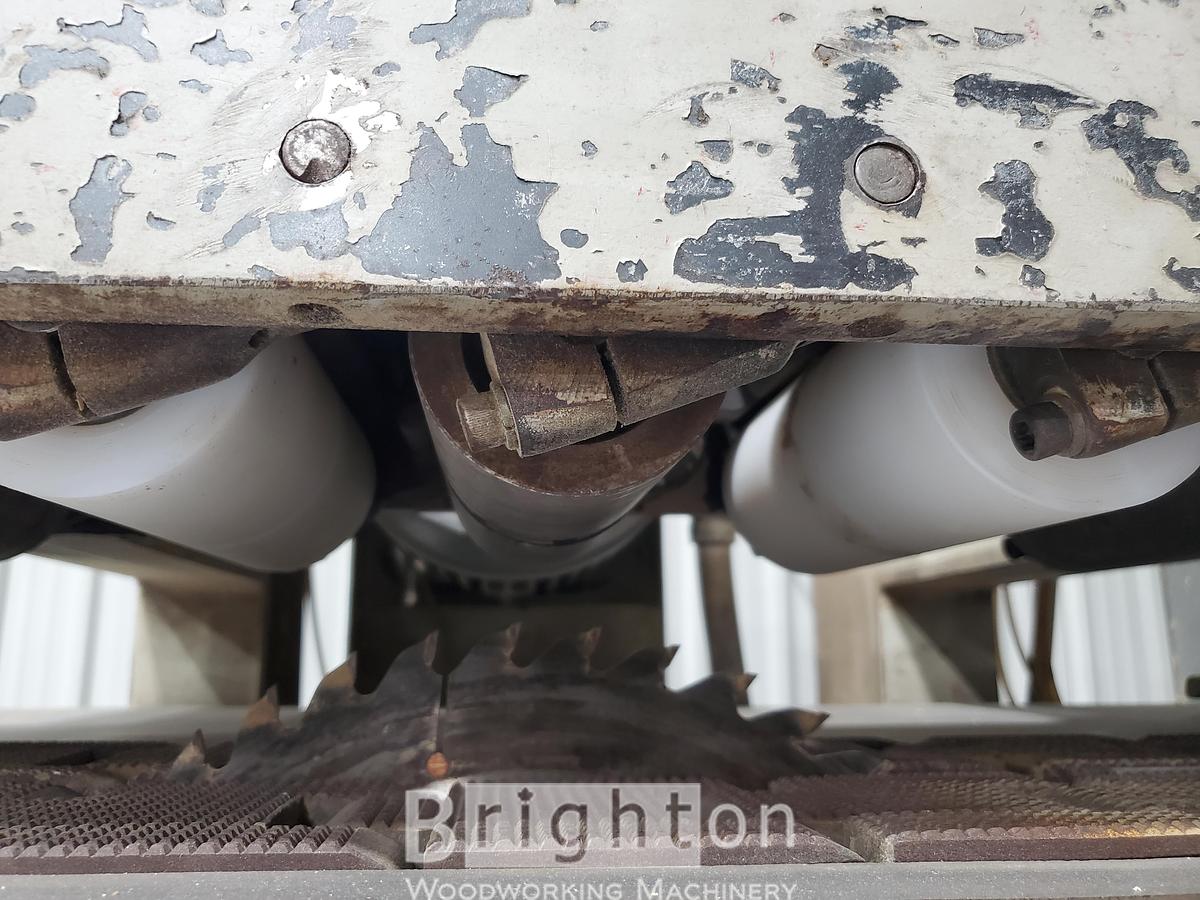

Fixed Arbor, Fixed Feed Speed At 60 FPM, Maximum Stock Thickness is 2 1/2″, Blade Diameter 14″ or 16″, 15 HP Arbor Motor. New Hold Down Rollers. New Bearings On Main Shaft. Very good shape Straight Line Rip Saw. Good for Glue Line.
Specifications
| Manufacturer | Diehl |
| Model | ESL 20 II used Straightline Ripsaw |
| Year | 1999 |
| Condition | Used |
| Stock Number | BBM2840 |
| Maximum Cutting Thickness / Depth | 2-1/2 inches. |
| Main Saw Blade Diameter | 16-inch maximum blade diameter. |

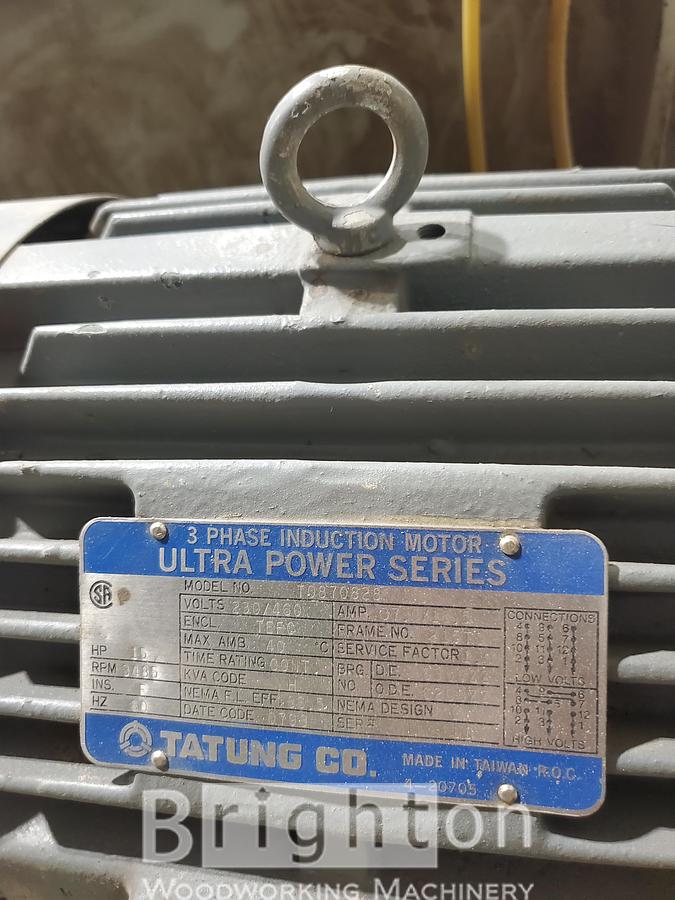

| Main Saw Motor Power | 15 hp |
| Feed System | 60 FPM feed via a 1.5 HP feed motor. |
| Throat Capacity (Cutting Width) | 19 inches of clearance to the right of the blade |
| Table Size | Approx. 59 inches x 36 inches |
| Feed Chain | Multi-V, fully machined, pyramid corrugated single feed chain with automatic pressure lubrication. |
| Safety and Control | Cast iron pressure bar arms with ball bearing rollers, self-adjusting upper/lower anti-kickback fingers, and automatic arbor/brake protection. |
Additional Features
Built Like a Tank: Solid cast-iron construction dampens vibration, ensuring that a machine nearing three decades old still cuts true today just as it did on day one.
True Glue-Joint Accuracy: Eliminates secondary operations. The precision chain and tracking design yield a glue-ready edge straight off the rip, saving labor and material waste.
Operator Safety First: Equipped with dependable dual anti-kickback fingers and an automatic fast-stop brake system to protect both your crew and your stock.
Proven Investment: Buying a vintage Diehl means getting industrial-grade American manufacturing at a fraction of the cost of a brand-new specialty panel saw.
