Boss LS-525M used Shaper w/ Co-Matic AF44 feeder
Boss LS-525M used Shaper w/ Co-Matic AF44 feeder
Location:Uxbridge, Canada
Description

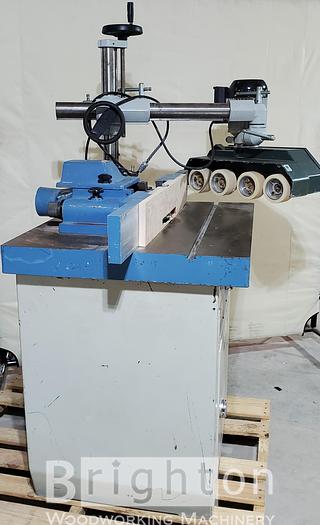

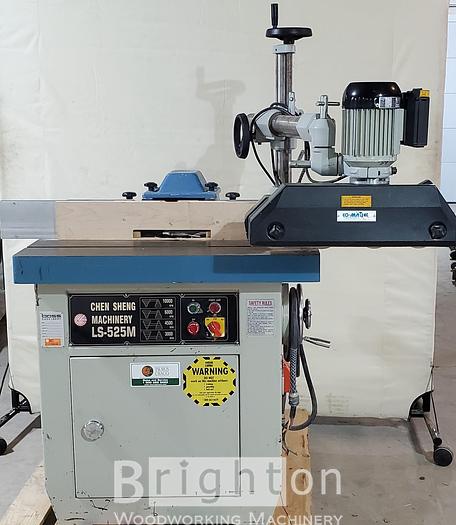

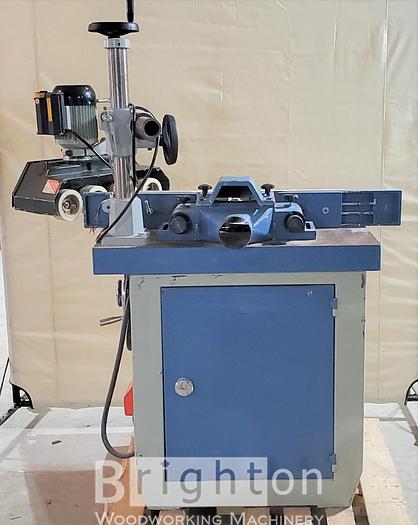

SPINDLE SHAPER 525 SERIES. Fixed table model with 27-1/2"x35-1/2" Table area, and 5HP motor. This pre-owned Boss LS-525M Shaper comes with a 2000 Co-Matic AF44 four wheel feeder.
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!
All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Boss |
| Model | LS-525M used Shaper w/ Co-Matic AF44 feeder |
| Condition | Used |

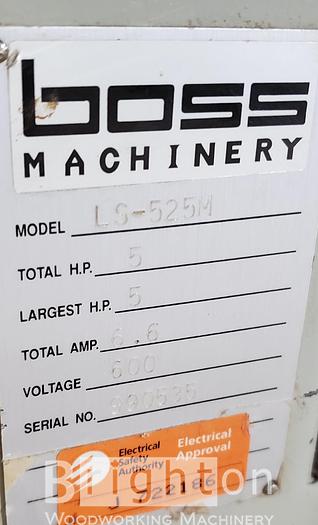

| Serial Number | 990535 |
| Stock Number | CBM2148 |
| Quality | Very Good |
| Electrics | 600 V / 3 Ph / 60 Hz |
| Shipping dimensions | 42"(L) x 38"(W) x 50"(H) |
| Weight | 854 lbs(388kgs) plus feeder weight |
Additional Features

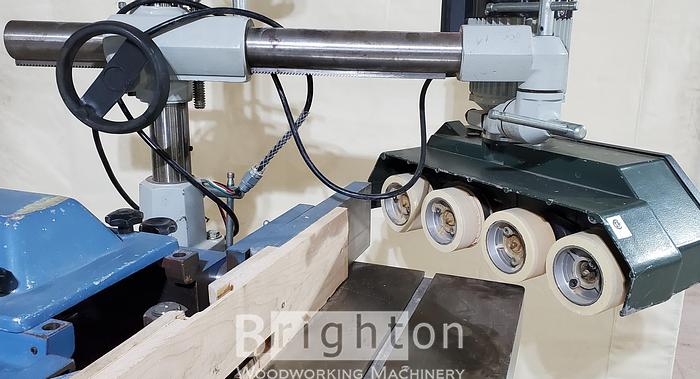

c/w 4 wheel feeder. (can be sold without feeder for reduced price)
Spindle Dia.: 1"

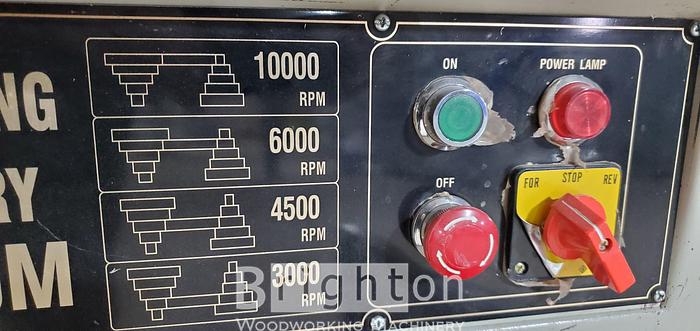

Spindle Speed: 3000 / 4500 / 7500 / 10000 rpm.
Taper of Spindle: MK5

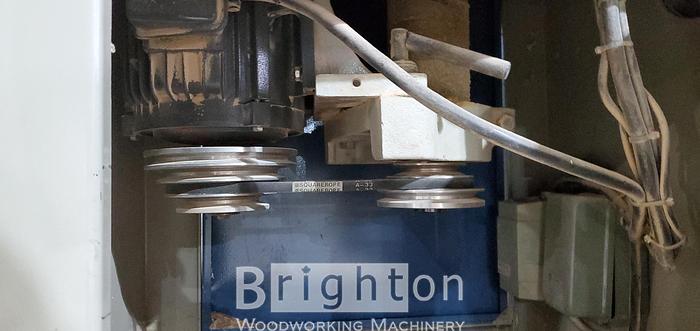

Spindle Motor: 5 HP
Spindle Travel: 130mm (5")
Max. Table Insert Diameter: 220mm (8-5/8")
Table Size: 700 x 900mm (27-1/2" x 35-1/2")
Table Height: 900mm (35-1/2")
