2025 Blue Elephant Elecnc-1540 cnc lathe #BBM2817
2025 Blue Elephant Elecnc-1540 cnc lathe #BBM2817
Location:Ontario, Canada
Description

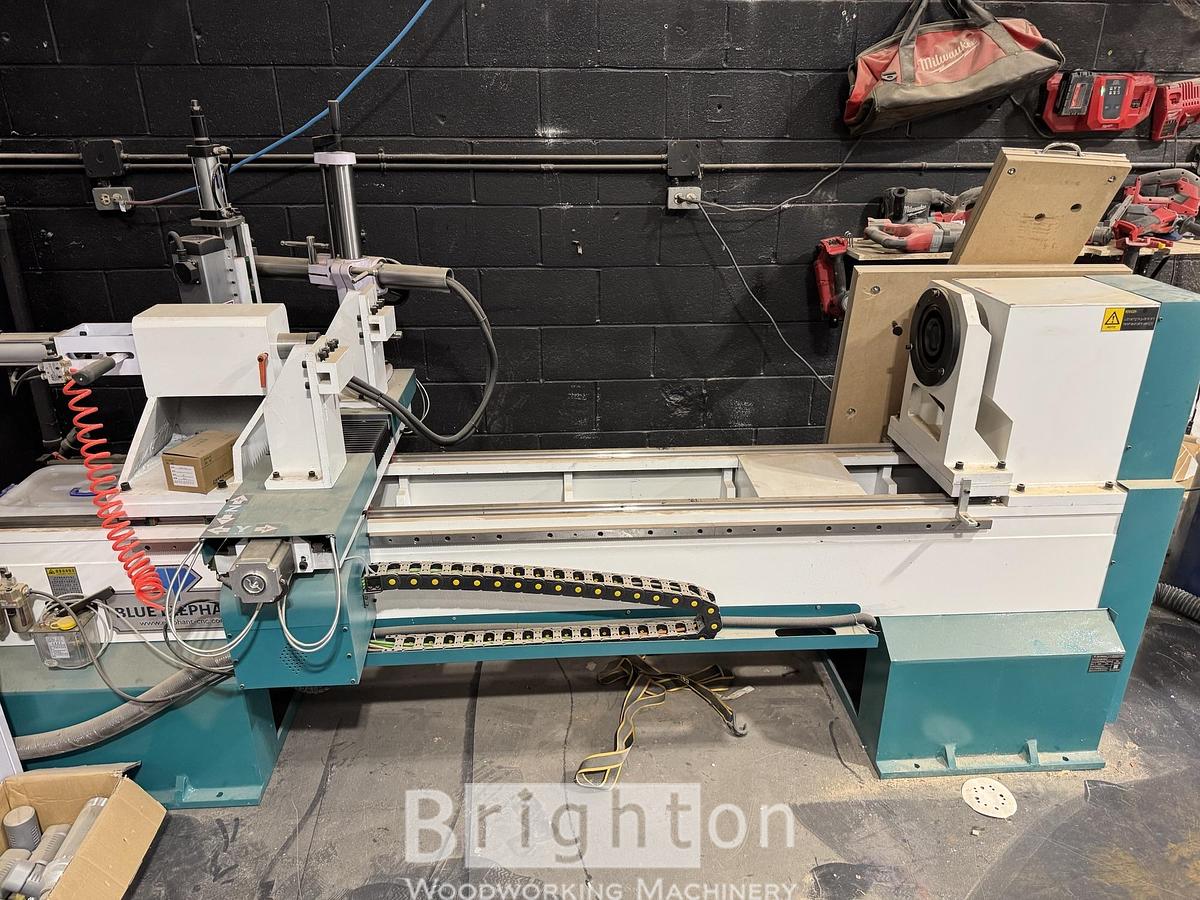

2025 Blue Elephant Elecnc-1540 cnc lathe
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | Blue Elephant |
| Model | Elecnc-1540 cnc lathe |
| Year | 2025 |
| Condition | Used |
| Stock Number | BBM2817 |
| Quality | Very Good |
| Electrics | 220V / 3Ph / 60 Hz |
Additional Features
CNC lathe
Model #: ELE1540
Processing length 200-1500mm
Material diameter 20-400mm
Maximum feed speed 2000mm/min
Application range Stair handrails, railings, stair support
feet, dining table legs, sofa legs, table and chair legs,
bed rails, lamp posts, baseball bats, etc.
Minimum setting unit 0.01cm
Rotating: 4KW servo spindle
Engraving spindle power 3.5kw Changsheng air-cooled
spindle (for groove engraving)
Spindle speed 0-3000r/min
Stepper drive, motor Yako YKA 2811MA, 450B 450C
motor
Working voltage 3 phase 220V AC power supply
Working frequency 60HZ
Control system Ruizhi Tianhong DSP control system
Pneumatic pressure 0.6-0.8Mpa
Total weight 1600kg
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
