2005 Silver SG-150/3A Used Slat & Round Rod Moulder
2005 Silver SG-150/3A Used Slat & Round Rod Moulder
Ontario, Canada
Description
SG-150/3A is a multi-purpose machine that is specially designed for moulding of round rods and slats. It can be used to manufacture louver type profiles, round rods and wooden mouldings, suitable for small and medium size enterprise.
Silver SG-150/3A Slat & Round Rod Moulder Machine
- Bottom spindle: 7.5 HP
- Top spindle: 10 HP
- Bottom saw spindle: 25 HP
- Feeding: 3 HP
- Working thickness: 6 ~ 60 mm
- Working width: 20 ~ 150 mm
- Diameter of saw blade: 180 mm
- Max. O/D of cutter head: 125 mm
- Speed of cutter head: 6000 rpm
- Speed of saw blade: 4800 rpm
- Diameter of spindle: 40 mm
Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!
All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
Specifications
| Manufacturer | Silver |
| Model | SG-150/3A Used Slat & Round Rod Moulder |
| Year | 2005 |
| Condition | Used |
| Serial Number | M129215X3 |
| Stock Number | BM2130 |
| Quality | Very Good |
| Electrics | 600 V / 3 Ph / 60 Hz |
| Weight | 4180 lbs |
| Shipping Dimensions | 106"L x 59"W x 63"H |
Additional Features
One machine with multiple purposes. The flexible knife tool combinations ensure one time completion of slicing up, rounding off or rolling
It is equipped with trying knife. First the lower base level of the plate blank is processed, it is conductive to slicing up and moulding, and it ensures excellent quality.

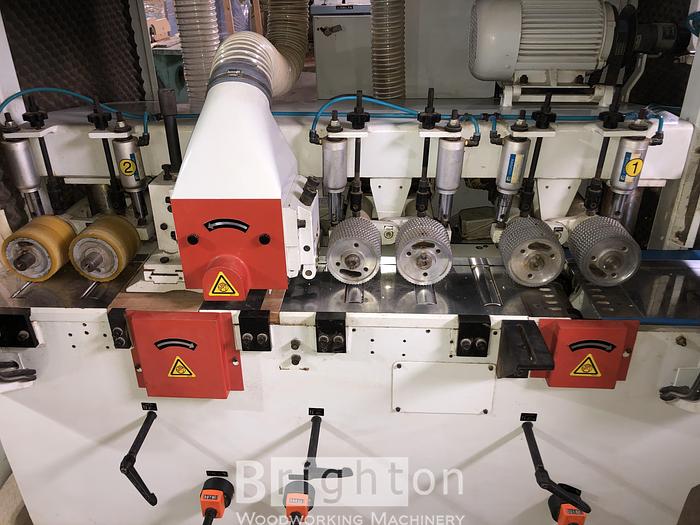

The distance between the upper and lower moulding cutters is only 110 mm. It is easy to adjust, and the moulding precision is enhanced.
Pneumatic pressure feed wheel can be adjusted separately for feeding pieces with various thickness
Variable feed speed from 6-24 m/min
