2015 Homag Optimat ABD050/12/NA used bore, glue, and dowel insertion machine. #BBM2815
2015 Homag Optimat ABD050/12/NA used bore, glue, and dowel insertion machine. #BBM2815
Location:Ontario, Canada
Description

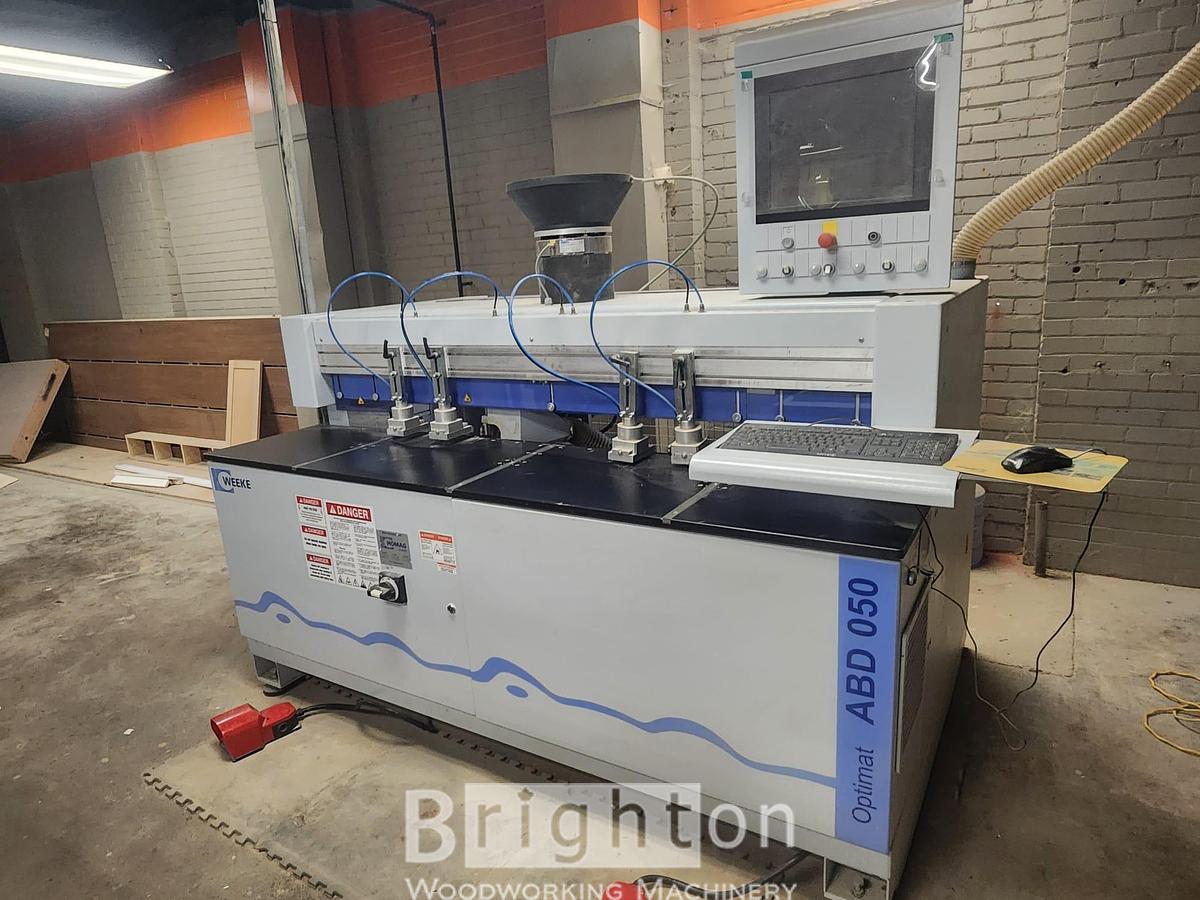

2015 Homag Optimat ABD050/12/NA is an industrial CNC-controlled machine designed for high-speed horizontal drilling, glue injection, and dowel insertion. Maximum part-length capacity of 1,250 mm and is equipped with 4 pneumatic clamping cylinders.
- Unmatched Precision: Eliminates manual layout and drilling errors by automatically referencing, drilling programmed holes, and shooting the dowel into the exact same hole.
- Exceptional Throughput: Processes up to 4 workpieces simultaneously. It features independent working zones so you can load parts in one field while the machine is actively machining in the other, ensuring zero downtime.
- Zero-Glue Mess: The compact, closed-loop glue flow control system applies a highly consistent, adjustable amount of glue to prevent messy runoff and ensure a rock-solid joint.
- Heavy-Duty Construction: Built on a Sorbtech main machine bed that dramatically minimizes vibration, providing long-term reliability and accuracy.
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | Homag |
| Model | Optimat ABD050/12/NA used bore, glue, and dowel insertion machine. |
| Year | 2015 |
| Condition | Used |
| Stock Number | BBM2815 |
| Quality | Very Good |

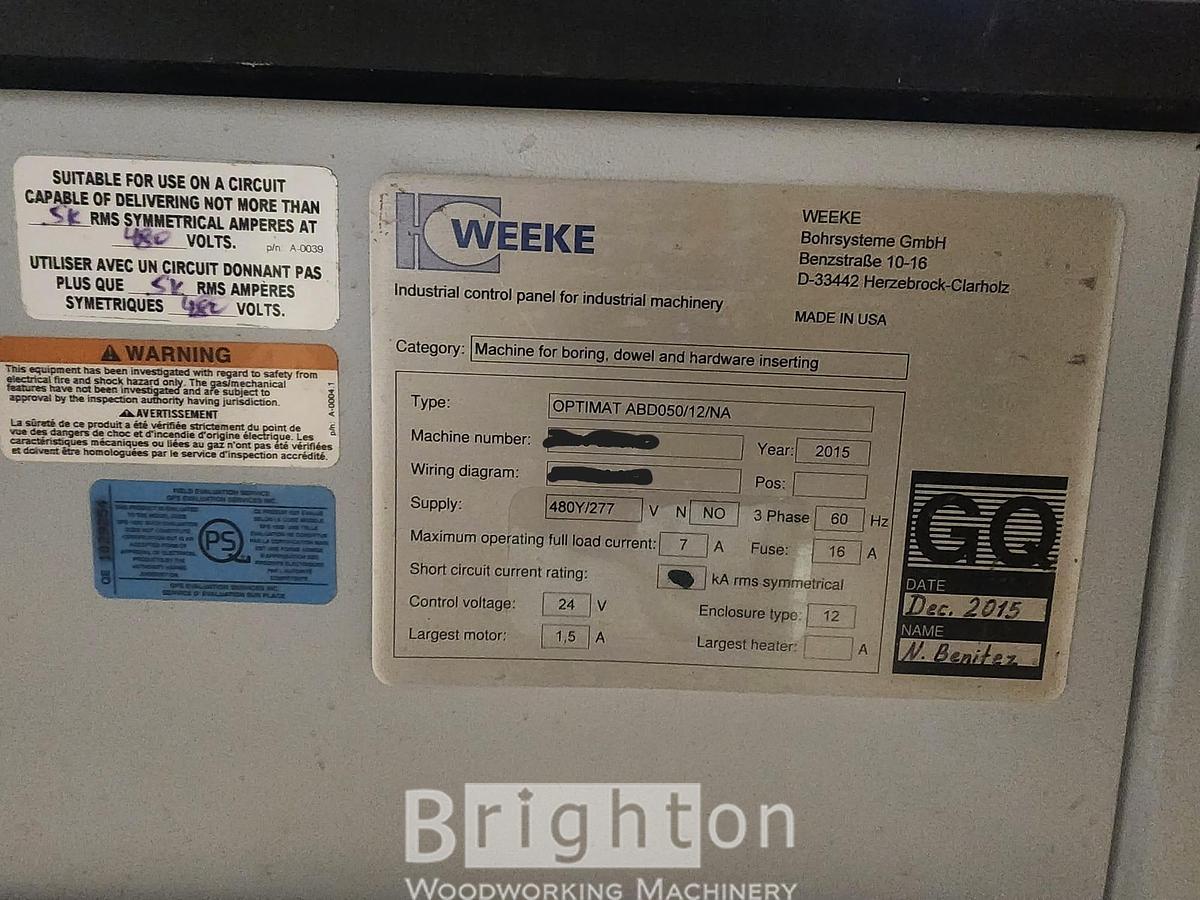

| Electrics | 480V / Ph / 60 Hz with multi tap transformer. |
Additional Features
Key Specifications
• Workpiece Capacity:
o Length: 20 mm - 1,250 mm
o Width: 20 mm - 800 mm
o Thickness: 10 mm - 60 mm
• Drilling Unit: Horizontal high-speed aggregate with a single drilling spindle running at 7,500 RPM.
• Doweling Unit: Includes a vibrating hopper for automatic feeding of standard 8 mm × 30 mm or 8 mm × 35 mm dowels.
• Glue System: Integrated compact, low-noise low-pressure glue pump.
• Software: Powered by Homag woodWOP with a graphical user interface and a PC-based control system (powerControl PC 85).
• Machine Weight: Approx. 1,100 kg (2,425 lbs).
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
