2015 Homag MPH410/25/07 used case clamp #BBM2811
2015 Homag MPH410/25/07 used case clamp #BBM2811
Location:Ontario, Canada
Description
2015 Homag MPH410/25/07 (often branded as Ligmatech) is an electric, manually operated case clamp designed for high-efficiency furniture and cabinetry assembly. It is highly prized in custom shops for eliminating setup time between different cabinet sizes.
---Zero Setup Time: Requires no pre-positioning of press elements or manual adjustment of pressure pads. The alternating steel beams adapt dynamically to alternating case dimensions one after the other.
---Perfect Squareness & Tolerance Compensation: Solid pressure lamellas feature built-in tolerance compensation. This guarantees all-over, even coating pressure on all parts of the corpus and tightly sealed, perfectly square joints.
---Self-Locking Safety & Efficiency: The vertical and horizontal frames are driven by electric motors via self-locking trapezoidal spindles, delivering a precise and consistently adjustable pressing force.
---Ease of Use: Highly intuitive, single-operator push-button cycling allows for seamless, one-by-one case assembly
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | Homag |
| Model | MPH410/25/07 used case clamp |
| Year | 2015 |
| Condition | Used |
| Stock Number | BBM2811 |
| Quality | Very Good |

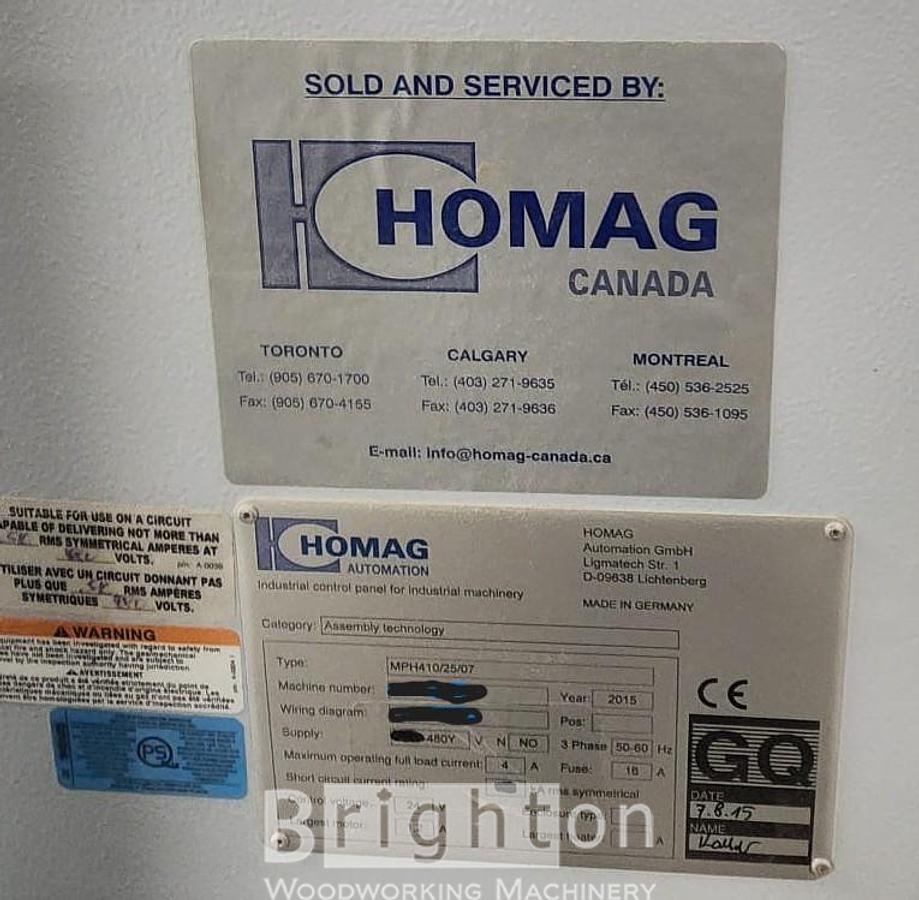

| Electrics | 480V / Ph / 60 Hz with multi tap transformer. |
Additional Features
Key Technical Specifications
• Max Pressing Length: 2,500 mm (approx. 98 inches)
• Max Pressing Height: 1,400 mm (approx. 55 inches)
• Max Pressing Depth: 700 mm (approx. 27 inches)
• Minimum Workpiece Size: 250 mm (L) × 250 mm (D) × 150 mm (H)
• Total Pressing Force: 15 kN (approx. 3,372 lbs/force)
• Pressing Speed: Fast approach at 50 mm/s, pressing speed at 25 mm/s
• Power Requirements: Commonly runs on 460V or 440V, 3-Phase (some units include a 600V step-down transformer)
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
