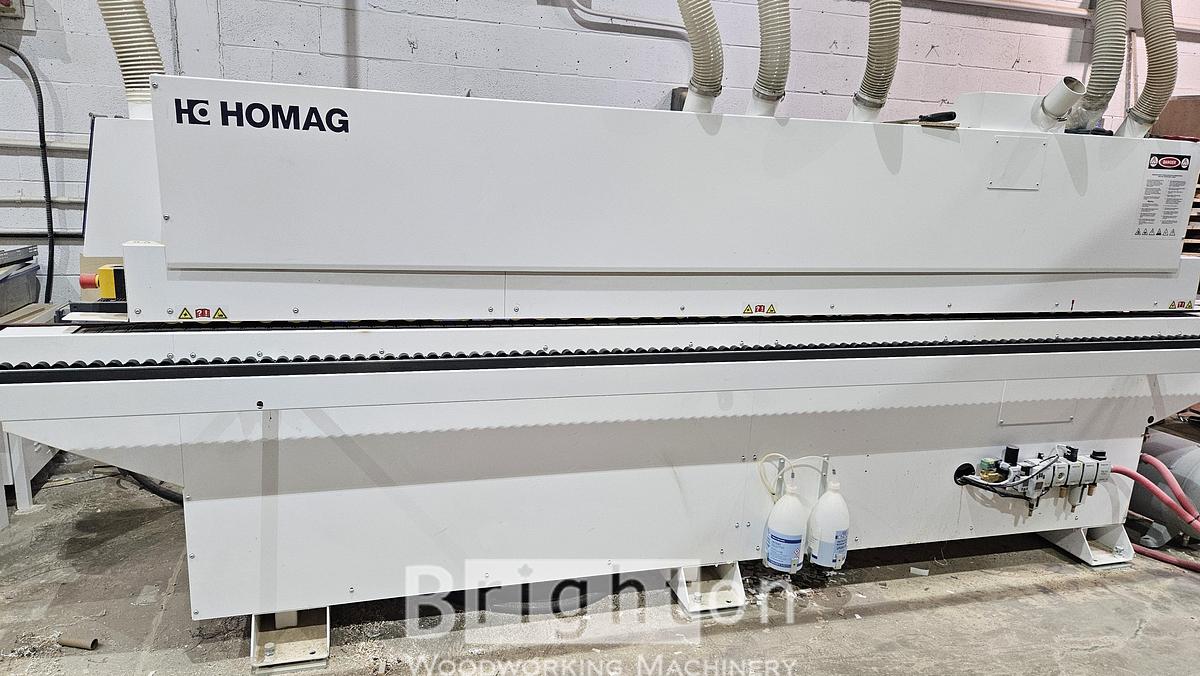

2022 Homag Edgeteq S-200 Optimat KDF 130AT AirTec used edgebander #BBM2810

Working Dimensions & Capacities
• Feed Speed: 8 m/min.
• Workpiece Panel Thickness: 8 mm to 40 mm (extendable up to 60 mm with options).
• Minimum Workpiece Width: 70 mm.
• Edgebanding Material Thickness (Coils): 0.3 mm to 3.0 mm.
• Edgebanding Material Thickness (Strips/Solid Wood): 0.4 mm to 3.0 mm.

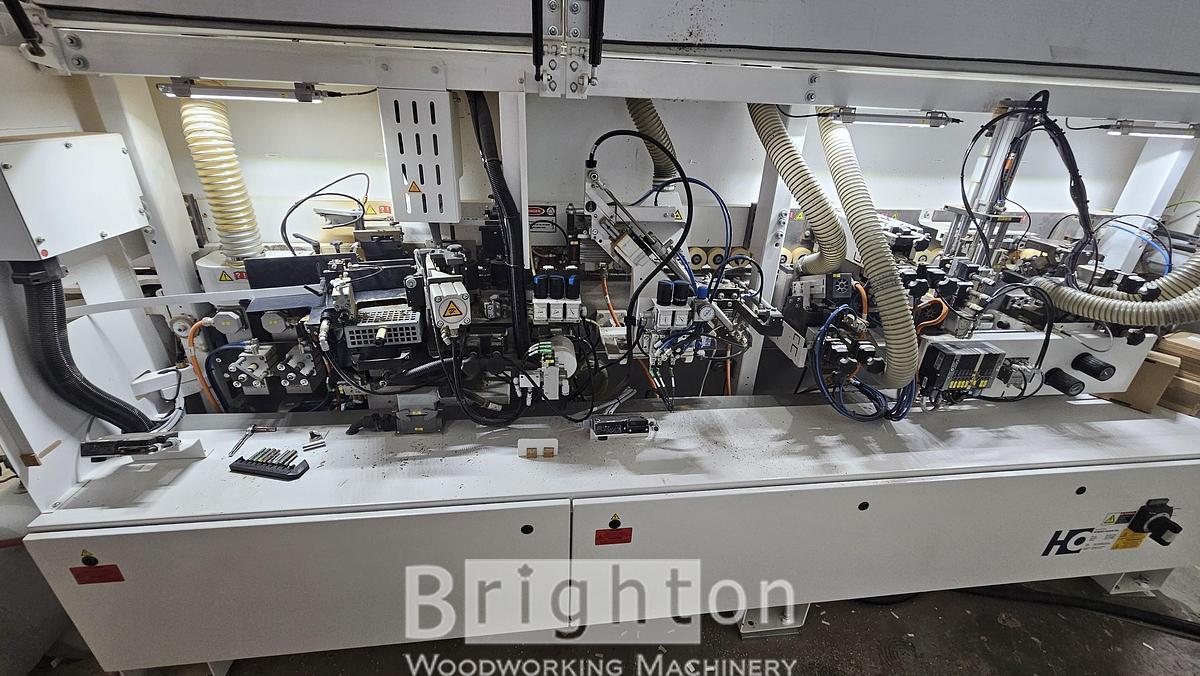

Standard Unit Configuration
• Pre-Milling Unit: Two counter-rotating diamond-tipped cutter heads ensure tear-free, perfectly square panel edges.
• Gluing Unit (QA 65): Quick-change system compatible with standard EVA and moisture-resistant PUR adhesives.
• airTec Unit ("AT" Designation): Integrated hot-air zero-joint technology that fuses specialized co-extruded edgebanding for seamless, glue-free edges.
• Heavy-Duty Guillotine: Cuts up to 3.0 mm PVC/ABS directly from the heavy 800 mm coil table.
• Pressure Zone: One driven main pressure roller and two secondary idle rollers guarantee tight joints.
• End Trimming Unit: Two-motor snipping unit for ultra-precise front and rear flush cuts.
• Top/Bottom Fine Trimming: Multi-functional unit easily adjustable between radius, chamfer, and flush trimming.
• Corner Rounding / Contour Trimming: Fully finishes the ends and profiles, including complete corner processing.

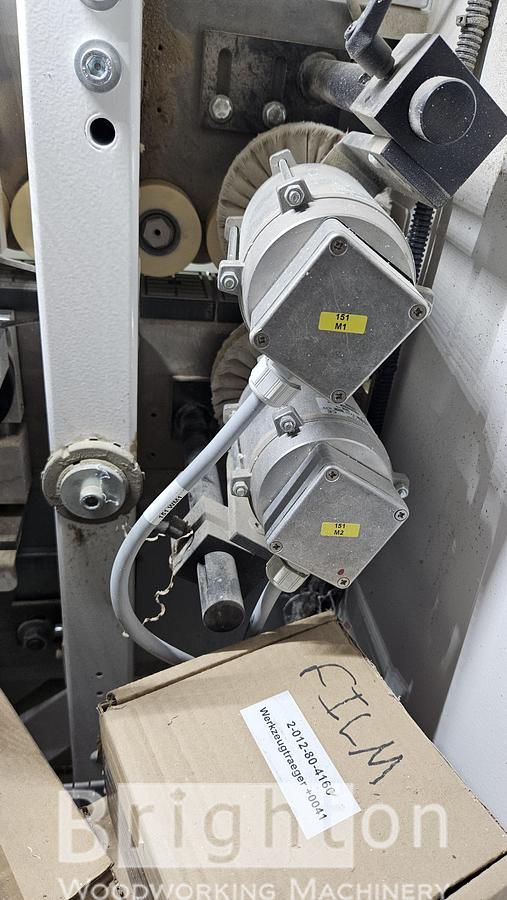

• Post-Processing Stations: Includes profile scraping (radius), flat glue joint scraping, and a dual-motor buffing station.
•
Control & Footprint

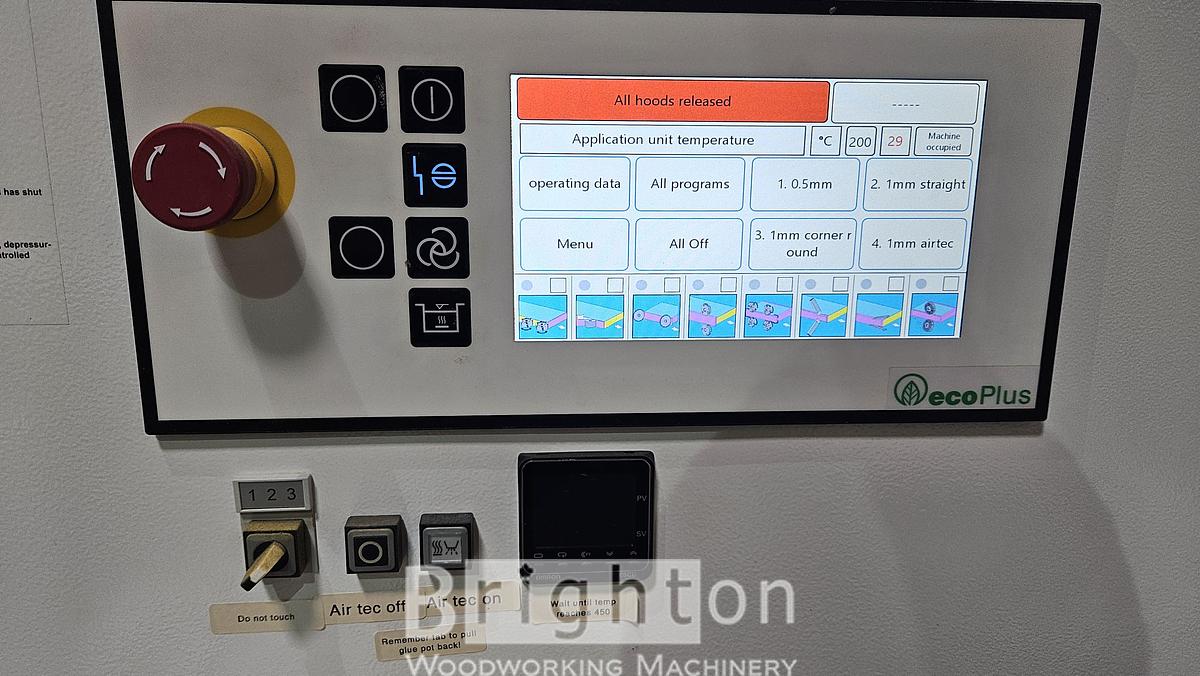

• Interface: easyTouch 7-inch color touchscreen capable of storing 20 custom user programs.
• Machine Length: Compact frame at approximately 3,690 mm to 4,600 mm
• Weight: 1,200 kg.
