Larrick 390 Automatic Shaper #BBM2793
Larrick 390 Automatic Shaper #BBM2793
Location:Ontario, Canada
Description

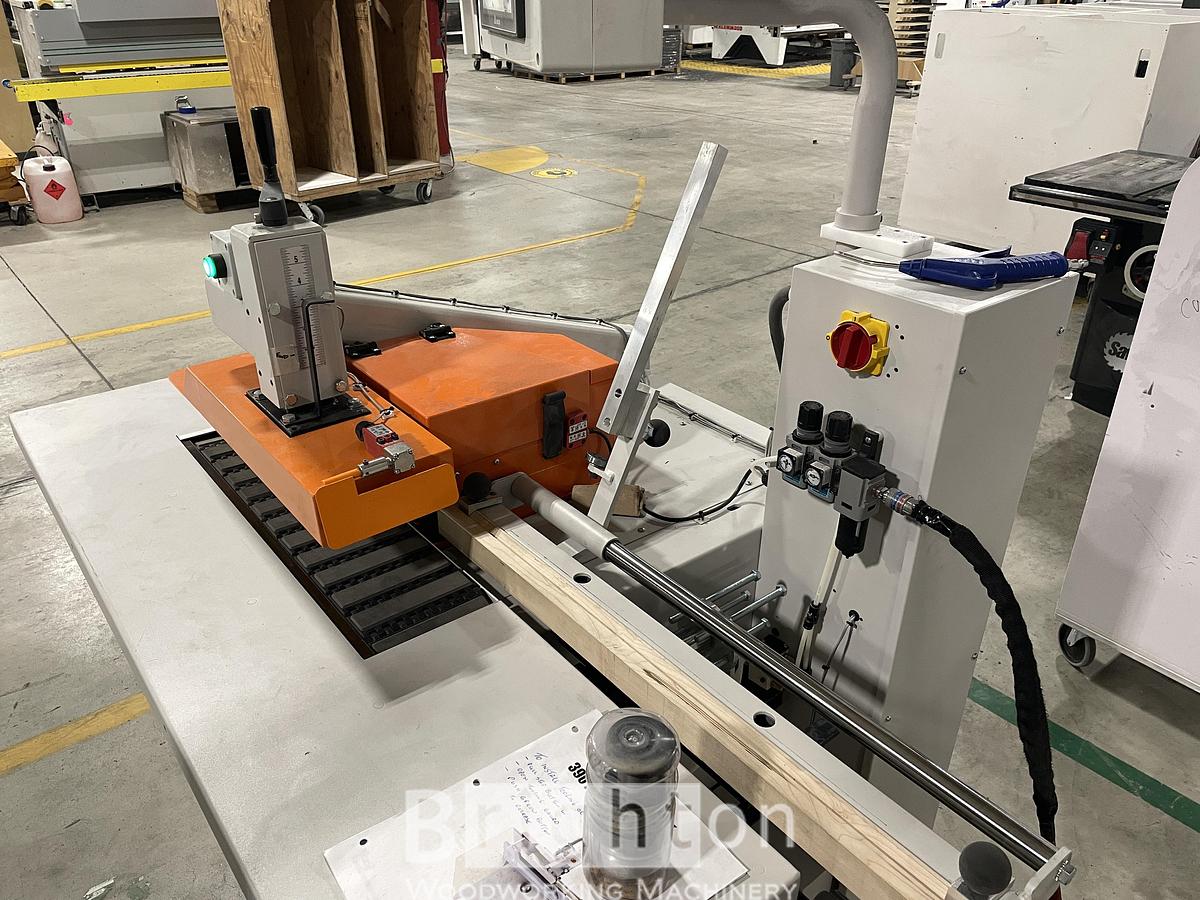

The Larick 390 Ultimate Shaper is an automatic, conveyor-fed machine designed for precision profiling and shaping, specifically popular for handling arched panels and small parts. Built in the USA, it combines the features of a traditional shaper with the high-volume capabilities of an automated system.
- Ideal for Small Parts & Arches: Because it is conveyor-fed, it can easily handle small, intricate, or pre-arched panels that are difficult to manage with conventional machinery.

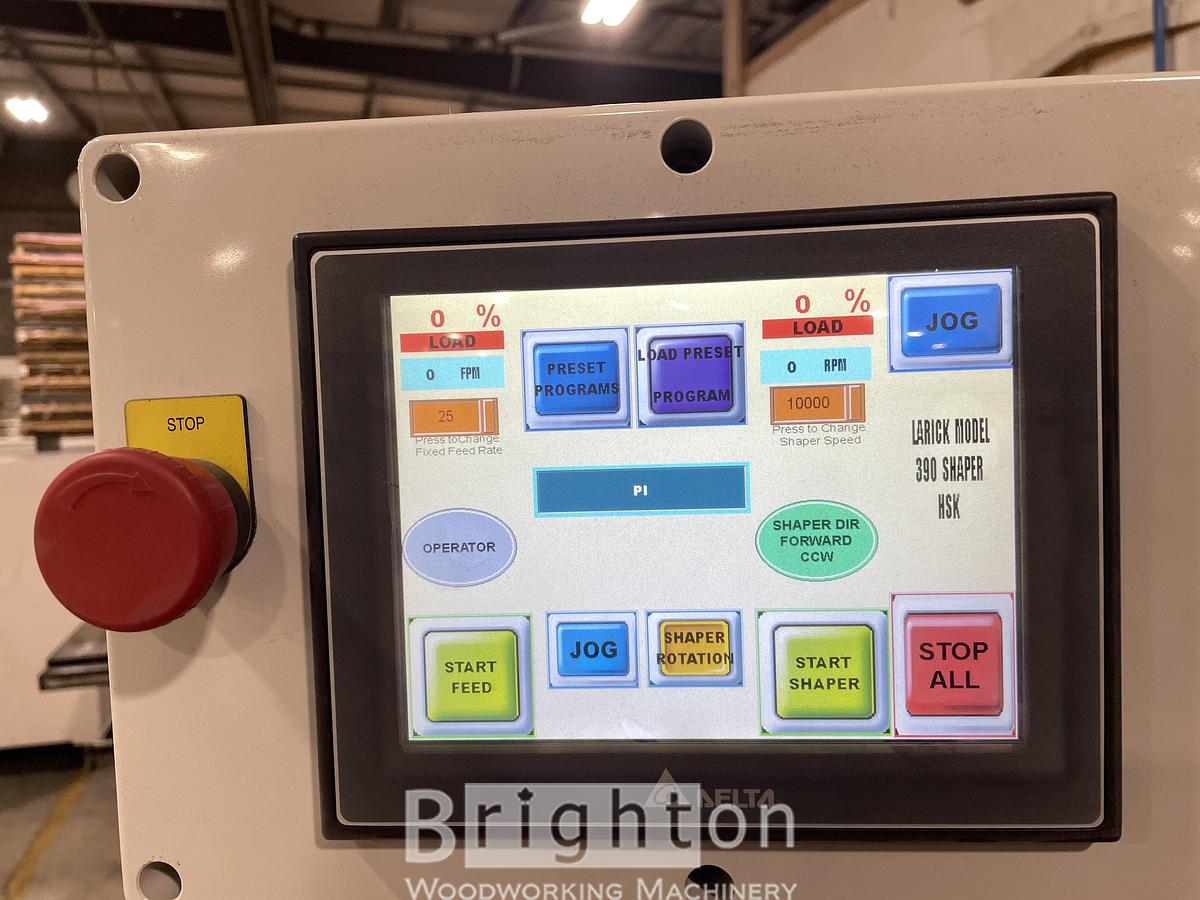

- High Efficiency & Quick Changeover: Features include 5-position fence adjustments and digital position indicators for horizontal and vertical adjustments, making profile changes extremely quick, reducing downtime.
- "Set and Forget" Automation: The 390 can automatically "hog out" (machine) arched panels, increasing efficiency and reducing the need for manual shaping labor.

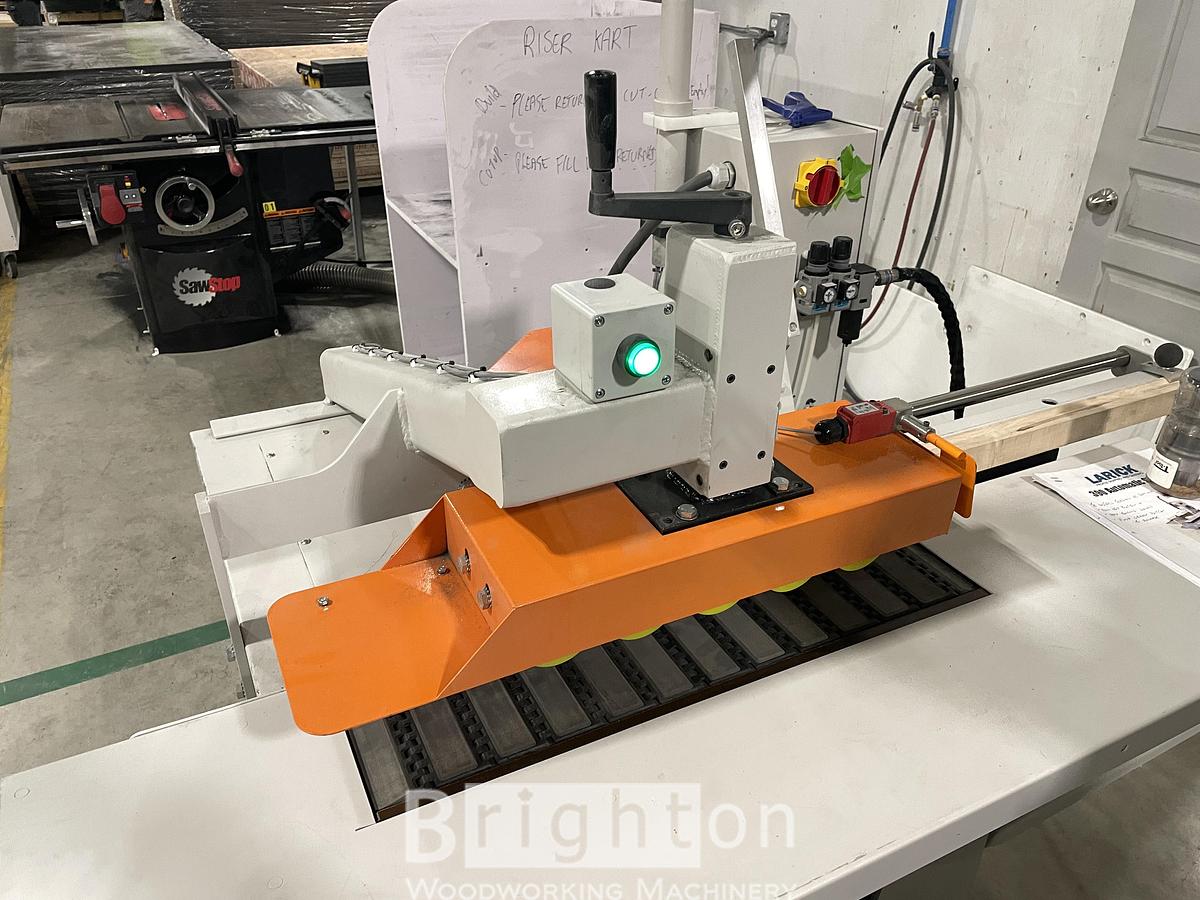

- Built for Reliability: Uses tried-and-proven technology from the Larick 410 shaper/sander, including a 6-inch wide conveyor with staggered hold-down tires for maximum stability.
- Optional Upgrades: Features a standard stack tooling spindle, with options for HSK spindles for faster tooling changes and hopper feeders for higher production volume.
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | Larrick |
| Model | 390 Automatic Shaper |
| Condition | Used |
| Stock Number | BBM2793 |
| Quality | Very Good |

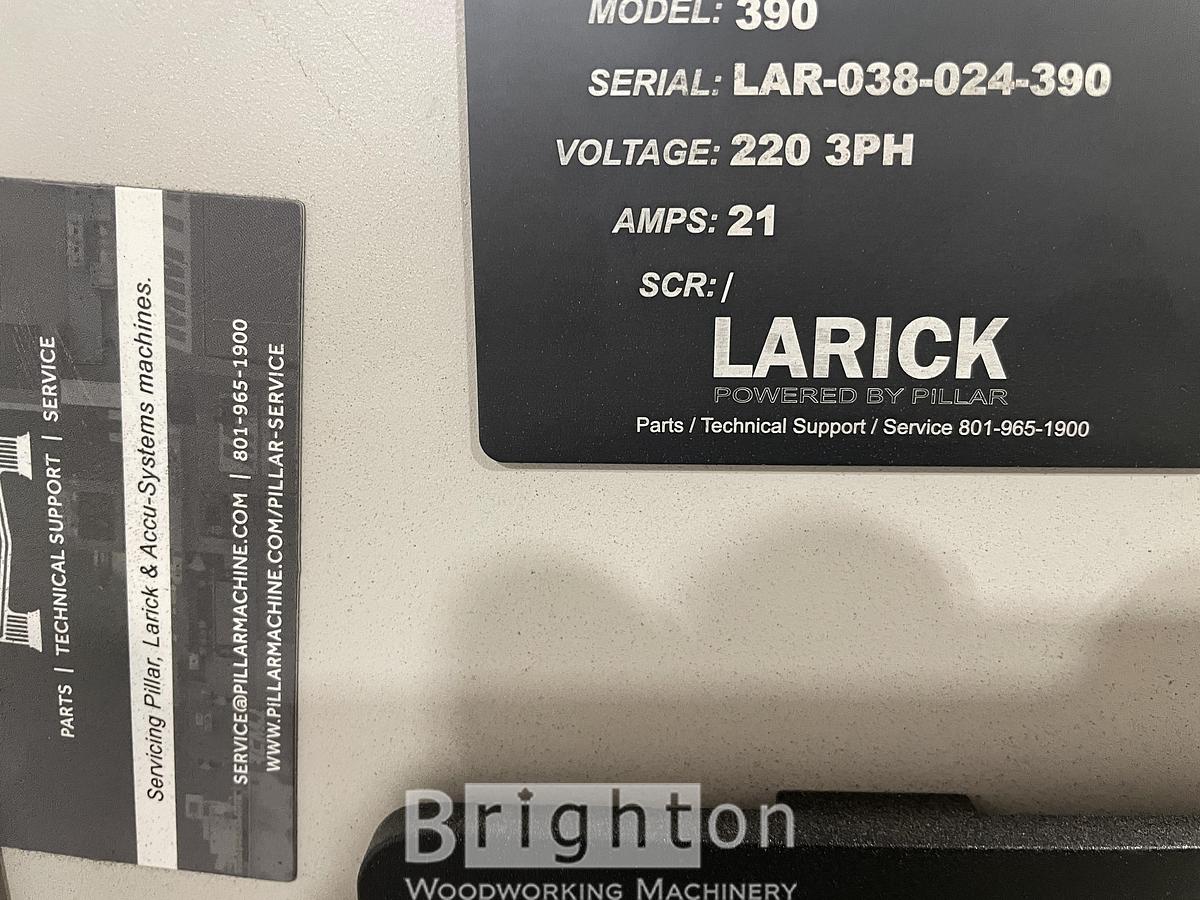

| Electrics | 220V / 3Ph / 60 Hz |
Additional Features
Specifications:
Shaper Motor: 7.5 HP Inverter Controlled Variable Speed Motor (208–230V, 3PH).
Shaper Speed: 4000 to 7000 RPM (some models spec 650–7000 RPM).
Spindle Size: 1-1/4 Inch (standard).
Feed Speed: Variable up to 30 FPM (feet per minute).
Conveyor Width: 6 Inches.
Maximum Part Thickness: 2 Inches (some sources indicate 3").
Floor Space: 55" Wide x 38" Deep.
Features: Floating head shaper, 5-position chipbreaker fence, and staggered hold-down tires.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
