2013 SCM Pratix-S used Flat table CNC #BBM2758
2013 SCM Pratix-S used Flat table CNC #BBM2758
Location:Ontario, Canada
Description
2013 SCM Pratix-S used Flat table CNC. Owner had to upgrade to a large machine. In use today and available in approx 1 to 2 weeks. New machine is being set up.
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
| Manufacturer | SCM |
| Model | Pratix-S used Flat table CNC |
| Year | 2013 |
| Condition | Used |
| Stock Number | BBM2758 |
| Quality | Very Good |
| Electrics | 600V /3 Ph / 60 Hz with included transformer. |
Additional Features
SCM - PRATIX S-12-B: Flat Table Machine (w/ATC/Boring)

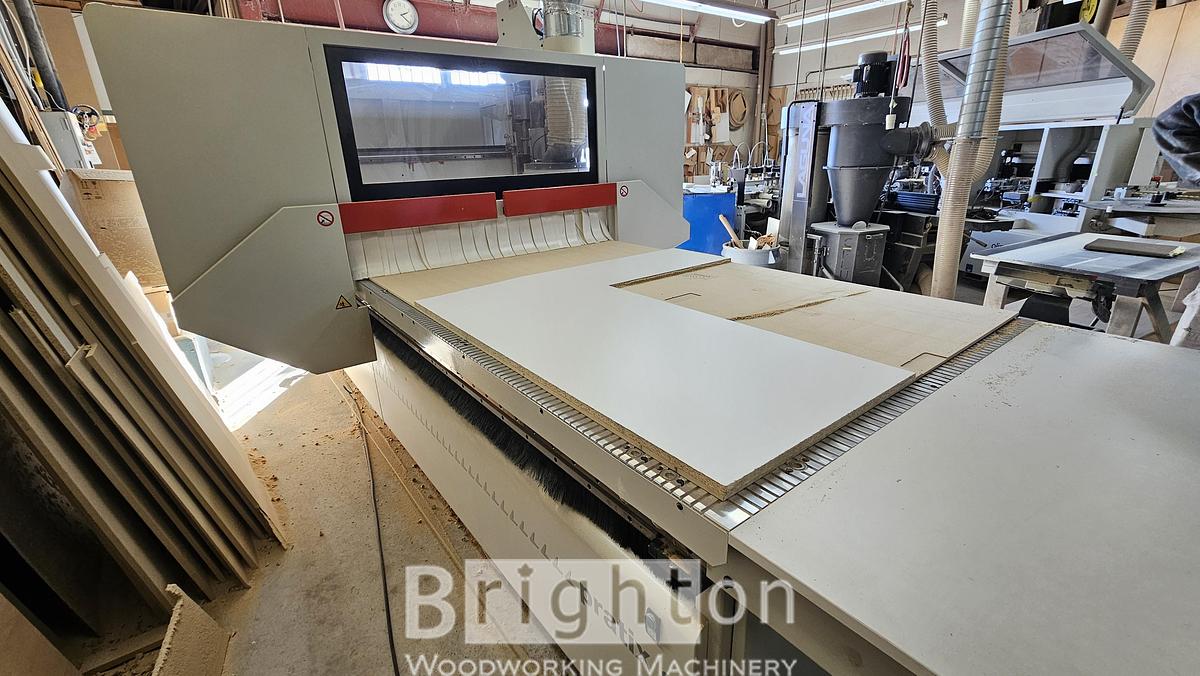

Single 4' x 8' traveling "Bridge Gantry" and stationary aluminum dual vacuum table with: "MATRIX" square grid pattern for fixturing parts.Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested base machining".Part location pop-up pins mounted on the table perimeter.
Working Field"X" Axis is 98" (2,486 mm); "Y" axis is 49.4" (1,255 mm); "Z" axis stroke is 9.8" (250 mm); max. material thickness 5.9" (150 mm).
Positioning Speed"X" & "Y" Axis 115 FPM (35 MPM); "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system.High precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screws "Z" axis; all axes ride on extra large precision profile linear guideways.

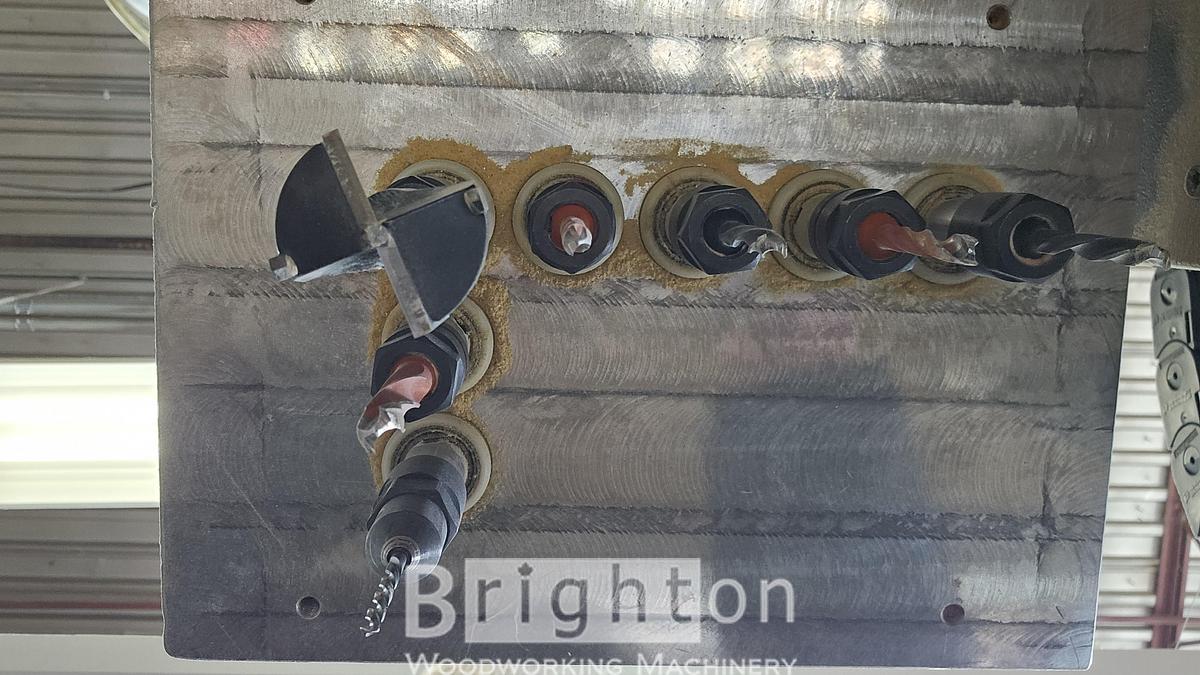

Boring Unit 3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers: (5) Spindles in "X" axis & (2) spindles in "Y" axis.
Machining(1) 9 HP (6.7 kW) Air-cooled electro spindle with: HSK F63 Adaptor; variable spindle speeds from: 1,500 - 24,000 RPM.(1) 8-Position ATC tool rack mounted to the machine.

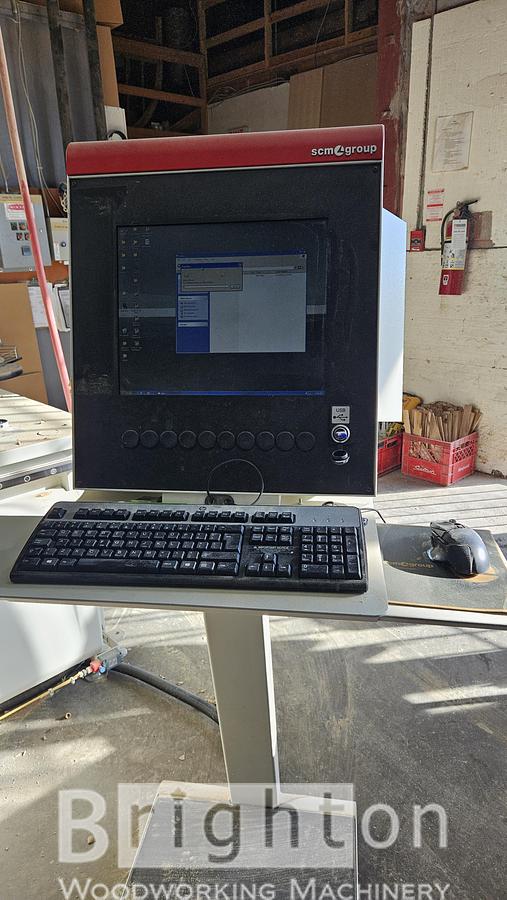

Operator & Machine ControlPC Front End with: "XILOG Plus" + Windows "XP Pro" Operating System; 17" high resolution LCD; ergonomic keypad.USB Ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible.All computer components are mounted on a mobile stand.XILOG Plus Offers incredible list of functions from: (a) Auto-diagnostic to (z) zooming; controlled acceleration & deceleration, encoder feedback, dynamic tool correction via PLC due to active tool wear using space-and-time criteria.
Additionally Equipped with:Onboard mini-CAD with built-in programming for writing: Circles, ellipses & angles with only a few keystrokes.Onboard cycle optimization; onboard calculator; mirror imaging; repeat imaging.
Complete with: 150 m/Hr Vacuum Pump; safety enclosure around the spindle carriage. - Tool length measuring device.(1) Universal remote Pendant; 7" color display allows for the effective management of all machine functions from: Manual Jog Mode to loading & execution of a program; pendant is fitted with: USB Port to allow quick load & setup of new programs. Safety "bump stop" bumpers; emergency stop rope; doc's & manuals.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
