2007 Heian EG-231PBMC - 1637 used CNC
2007 Heian EG-231PBMC - 1637 used CNC
Ontario, Canada
Description
200307 Heian EG-231PBMC - 1637 used CNC
"note: click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"
Specifications
| Manufacturer | Heian |
| Model | EG-231PBMC - 1637 used CNC |
| Year | 2007 |
| Condition | Used |
| Stock Number | BBM2108 |
| Quality | Very Good |
| Electrics | 200/380V / 3 Ph / 60 Hz |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features

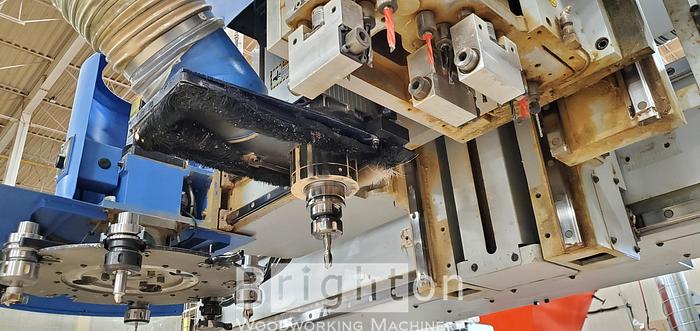

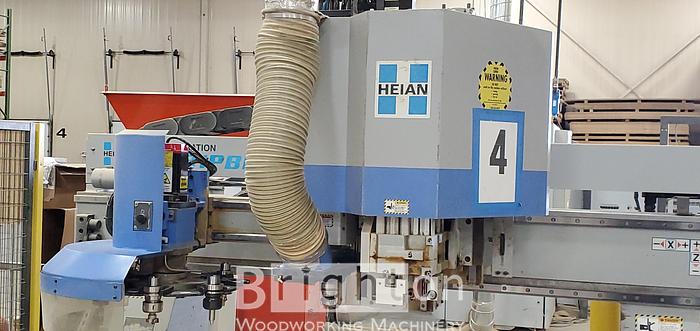

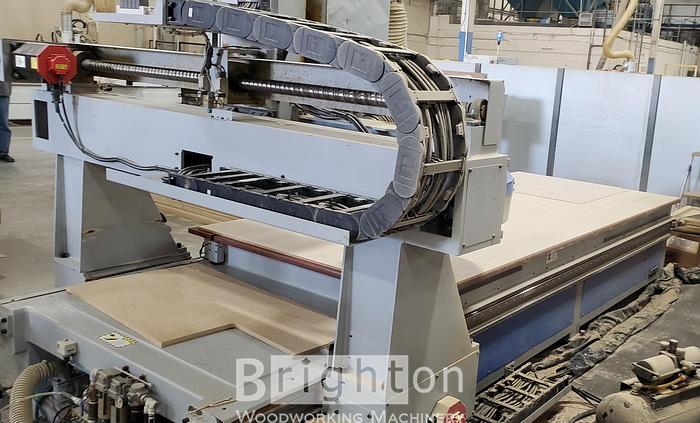

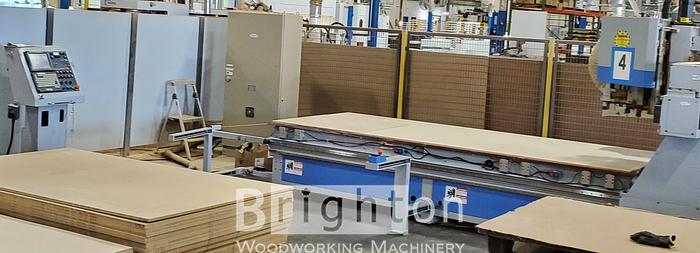

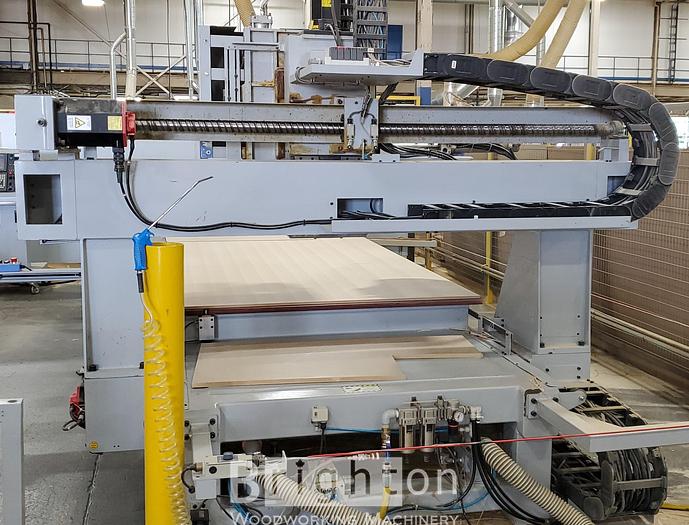

The Heian EG-231-PBMC gantry router is a nested-based machine with productivity and dependability that Heian CNC Routers are known for. The machine is supplied with an 11kw HSK-63 24,000 rpm spindle motor and an L shaped multispindle boring assembly for vertical and horizontal boring. In addition, the space saving gantry design of the EG-231 allows the router to fit into tight manufacturing areas.
* TABLE SIZE...62" X 147"
* WORKING TABLE TYPE...VACUUM CLUMP, GRID MATRIX TABLE
* STROKE OF SERVO X AXIS....79."
* STROKE OF SERVO Y AXIS...157"
* STROKE OF SERVO Z AXIS....13.8"
* MAX RAPID SPEED IN X AXIS....150FT/ MIN
* MAX RAPID SPEED IN Y AXIS....240FT /MIN
* MAX RAPID SPEED IN Z AXIS....60FT/ MIN
* 11KW ROUTER SPINDLE MOTOR (APPROX 15HP)
* 8 BAY TOOL CHANGER
* TOOL TYPE....HSK63F
* 2KW BORING SPINDLE MOTOR...4100 RPM
* T - TYPE FEXIBLE BORING SPINDLE

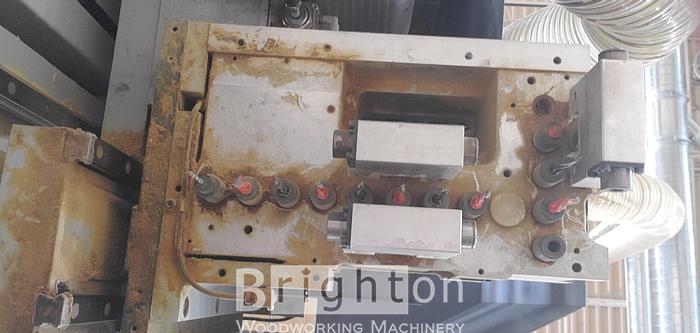

* 13 VERTICLE BORING SPINDLES ON 32MM CENTERS
* 3 HORIZONTAL SPINDLES ON 32MM CENTERS

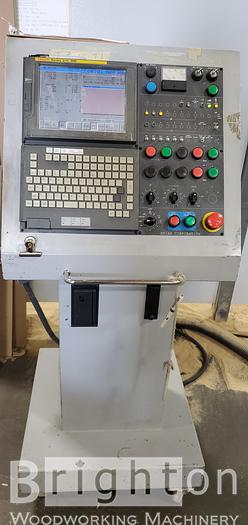

* NC CONTORL...FANUC 210i-MB
* 380 VOLT, 3 PHASE MULTI TRANSFORMER
* COMES WITH ALL TOOLING & MANUALS
* COMES WITH DEKKER VACCUM PUMP & MANUAL
