1999 Heeseman LSM 8 used widebelt sander.

1999 Heeseman LSM 8 used widebelt sander.

Ontario, Canada

orCall (647) 384-9663

Description

1999 Heeseman LSM 8 used widebelt sander.

"note: click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"

Specifications

ManufacturerHeeseman
ModelLSM 8 used widebelt sander.
Year1999
ConditionUsed
Stock NumberBBM2107
QualityVery Good

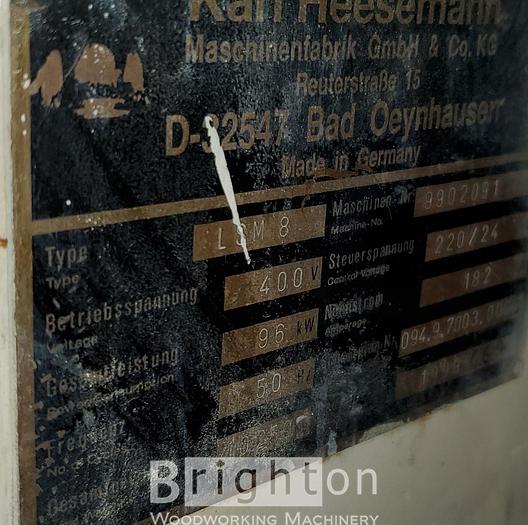

Electrics400 V / 3 Ph / 60 Hz
*All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Additional Features

(Buyer to confirm details. Info taken from the internet on a similar machine and from actual pictures)

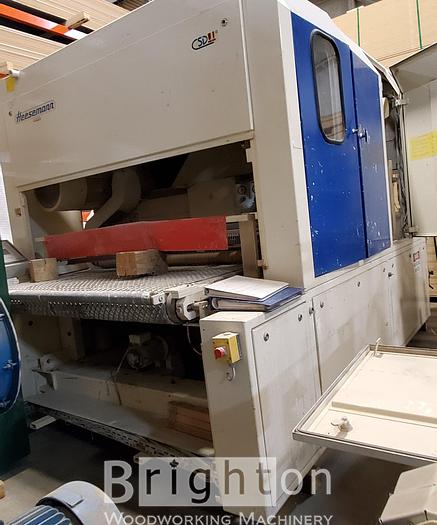

HEESEMANN LSM-8 Wide Belt Sander (4) Heads
54" (1,300 mm) max. width (1) Segmented cross-belt & (1) Longitudinal segmented platen heads.
Head Configuration:

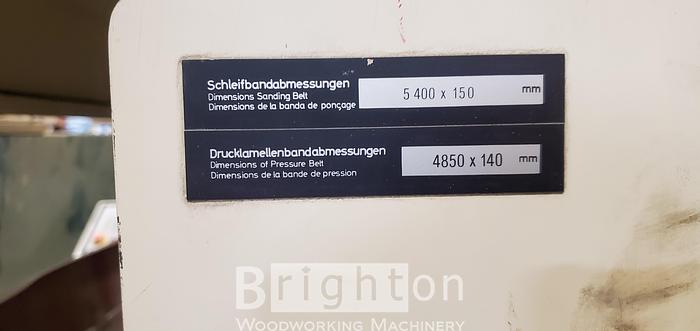

1st Head: Segmented cross-belt, 5/8" wide segments (86 total) with "CTS" control, abrasive belt size 5.9" x 244", inside chevron belt 5.9" x 191", dual speed head with 11 KW motor.
2nd Head: Segmented wide belt polishing platens, 5/8" wide segments with CTS control, 11 KW motor, 126" x 53" abrasive belt size;
3rd Head: Segmented wide belt polishing platens, 5/8" wide segments with CTS control, 11 KW motor, 126" x 53" abrasive belt size;
4th Head: Outfeed rotary panel cleaning brush.
Specifications:

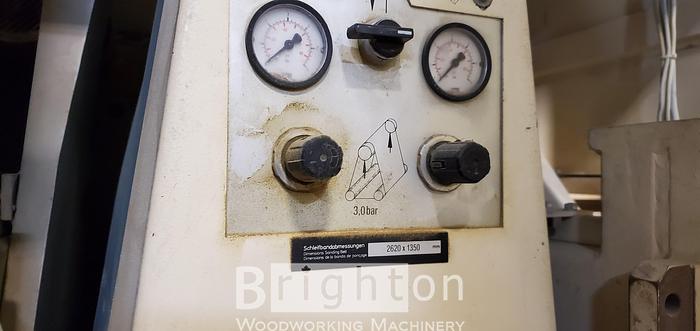

-- All heads have HESSEMANN's patented "CTS" selective pressure adjustment system
--Sensors spaced every 5/8" (16 mm) sense part configuration; (2) mm part thickness variation can be sanded without sand throughs, pressure for each segment can be pre-programmed to provide less pressure on the outer edges or more in the center if required.

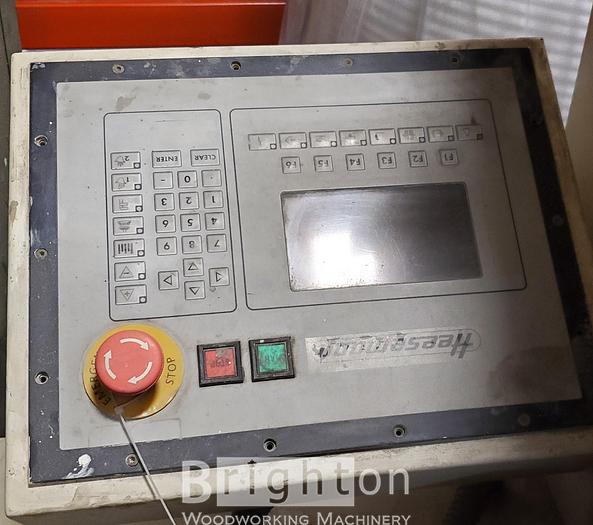

-- The "CTS" computer control will hold approx. (20) programs or part configurations.
Equipped with & Features
Weight 10,260 kg
