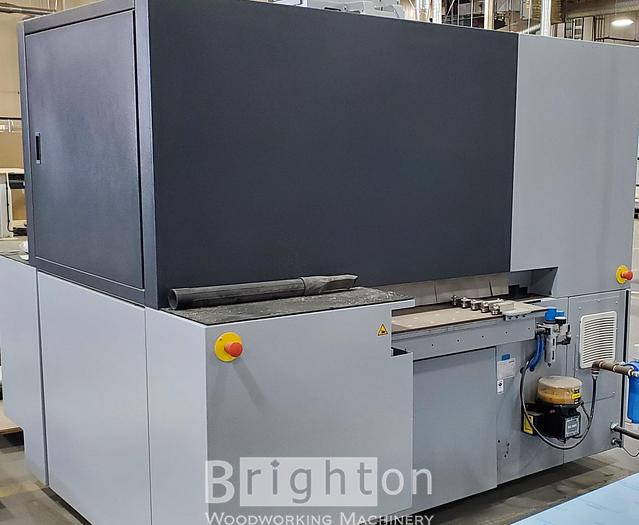

2018 Felder Creator 950 Advanced used cnc machine #BBM2109

2018 Felder Creator 950 Advanced used cnc machine #BBM2109

Location:Toronto, Canada

orCall (647) 384-9663

Description

Compact CNC technology with a space requirement of 5 m², All inclusive: 4 sided formatting as standard, No vacuum pods and console positioning,Easily understandable software

Replacement cost approx $120,000! 2018 Felder Creator 950 Advanced used cnc machine.


For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.

Click <LEASE> for leasing information.

Click <SHIP> for shipping information.


Specifications

ManufacturerFelder
ModelCreator 950 Advanced used cnc machine
Year2018
ConditionUsed
Stock NumberBBM2109
QualityVery Good

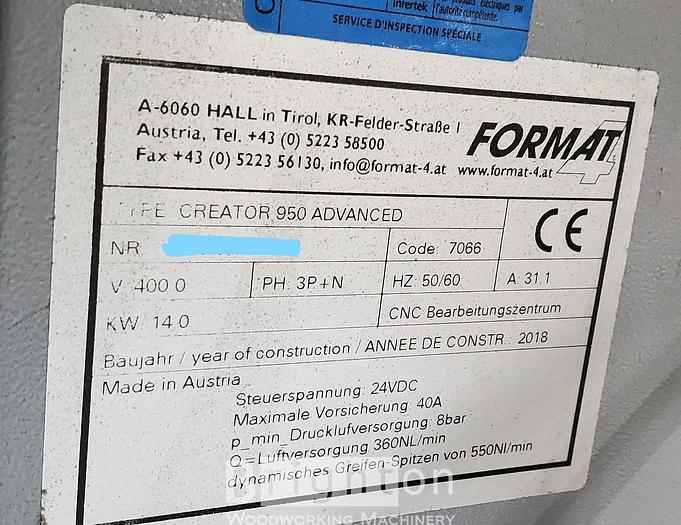

Electrics400 V / 3 Ph / 60 Hz

Additional Features

(buyer should confirm all details)
Special features and details
Travel distance of the axis:
X= 1475mm (grip)
Y=1550mm
Z= 225 mm

Working area:
X= 3500 mm (unlimited)
Y= 950 mm
Z= 80 mm processable workpiece

Closed cable draw in X and Y axis
2nd reference fence cylinder for long workpieces Second stop cylinder for workpieces larger than X=1400mm
Fixed operating terminal on the left hand side of the machine
Optical status indicator of the machine

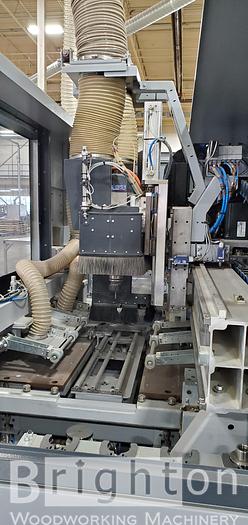

Main spindle 12 kW (S6) HSK F63

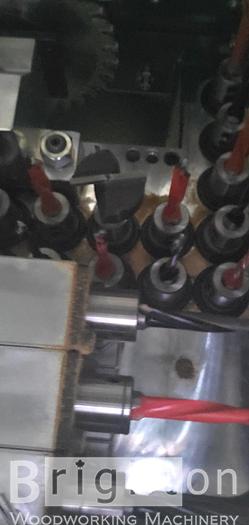

Drill head DH17 6H 1S
- 11 vertical spindles
- 6 horizontal spindles
- 1 slotting saw in X
Four-side formatting possible as standard
Length measurement of the workpiece in X and Y
4 position tool changer for use of aggregates
Controlled centralised extraction connection
Automatic central lubrication system
Fold away support tables for long workpieces (front + rear)
Woodflash machine software

All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
