2006 Extend Light GT-610S used top and bottom planer #BBM2751
2006 Extend Light GT-610S used top and bottom planer #BBM2751
Location:Ontario, Canada
Description
2006 Extend Light GT-610S planer: precision top & bottom milling, robust performance for smooth, accurate results today
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications

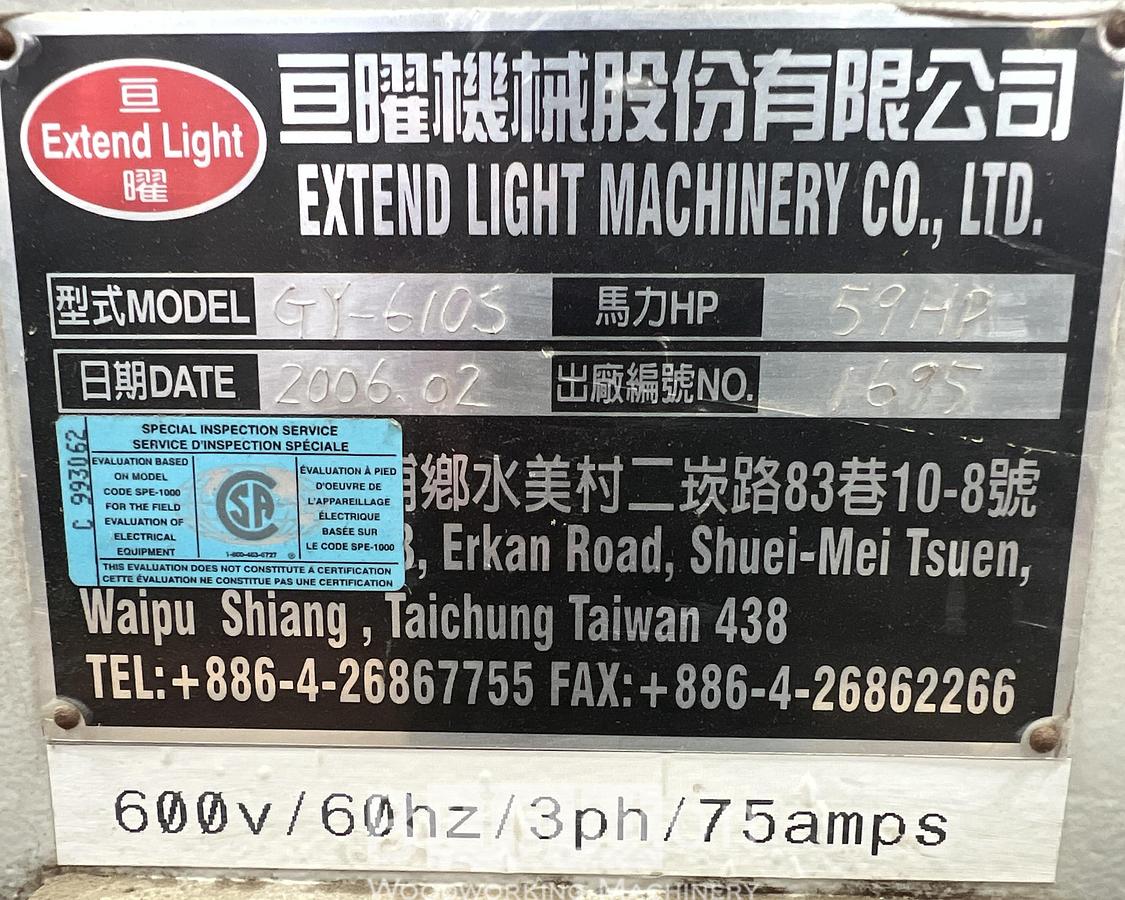

| Manufacturer | Extend Light |
| Model | GT-6105 used top and bottom planer |
| Year | 2006 |
| Condition | Used |
| Stock Number | BBM2751 |
| Quality | Very Good |

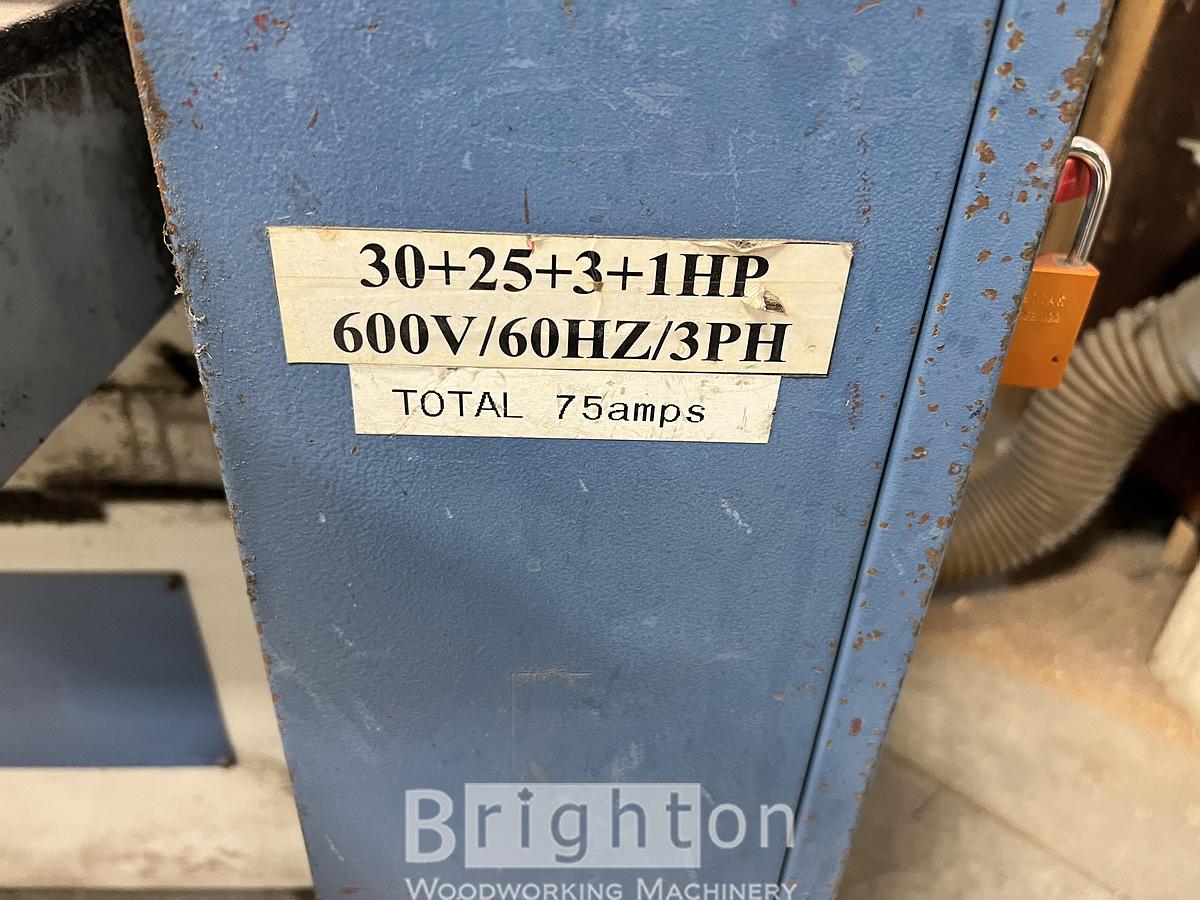

| Electrics | V / Ph / 60 Hz |
Additional Features

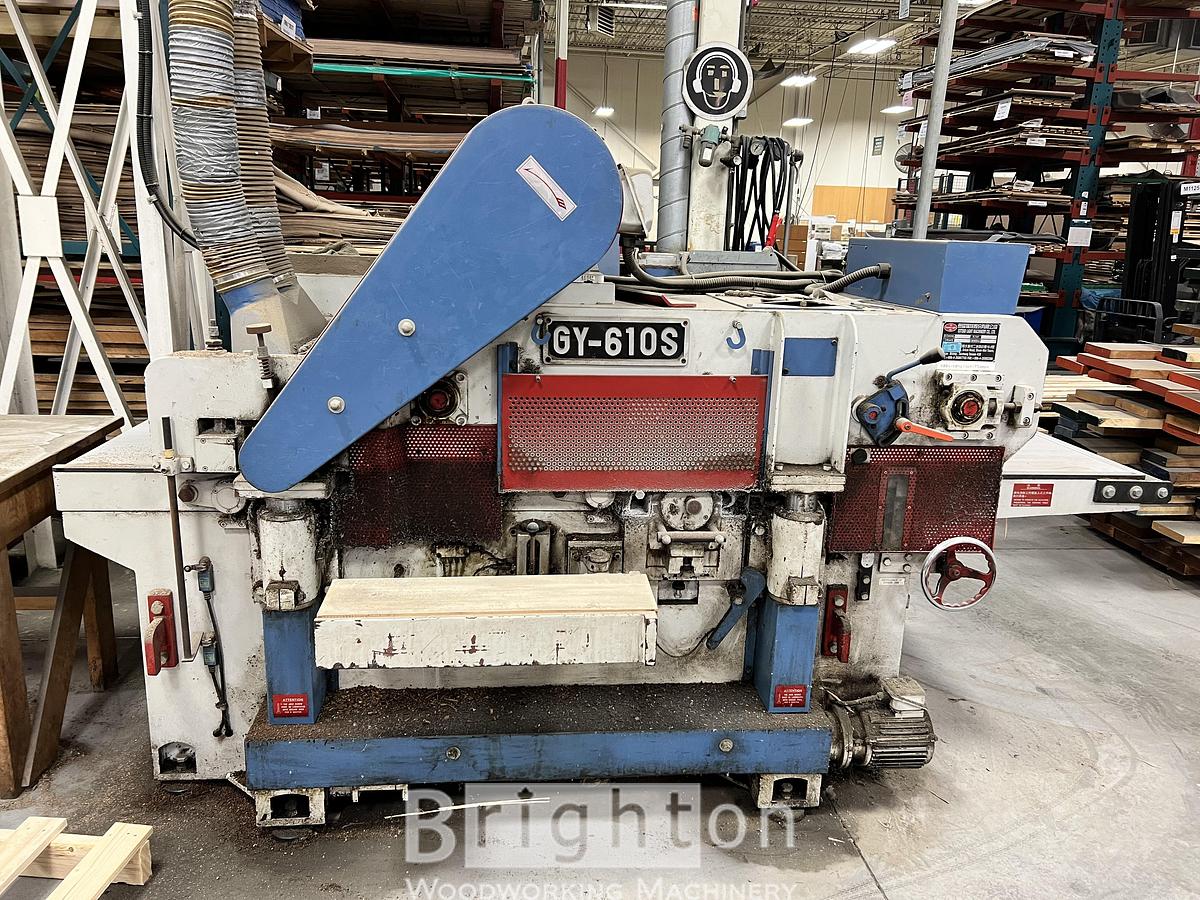

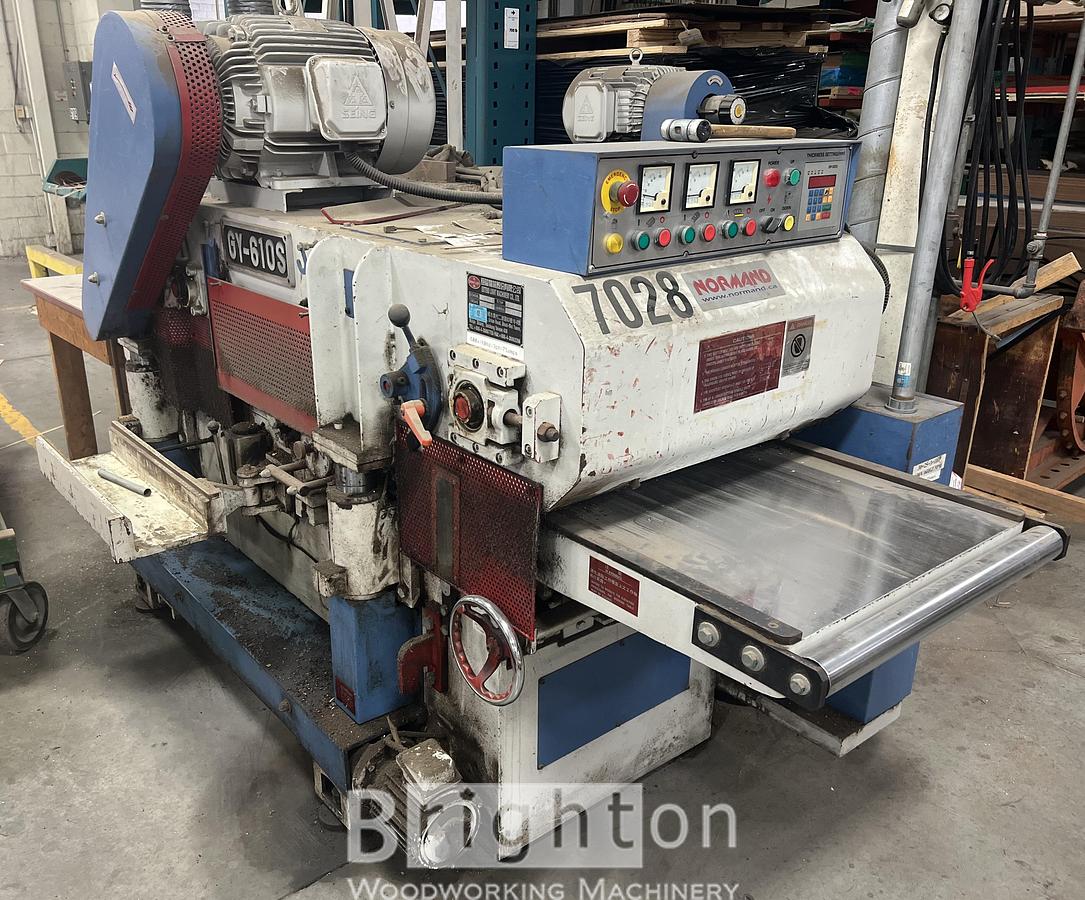

EXTEND LIGHT - GY610S:
Double-Sided Strato Planer 24" x 8" Cap.,
min. material length 12-1/2"
min. thickness 3/8".Equipped with:
25 HP Top & 20 HP Bottom belt drive motors.
Helical Spiral cutterheads that rotate @ 4,600 RPM; (6) rows or spirals of 4-sided carbide inserts 14mm X 14 mm.
Variable feed speed from 20 - 95 FPM; powered by 3 HP drive to lower feed rolls & upper feed mat.

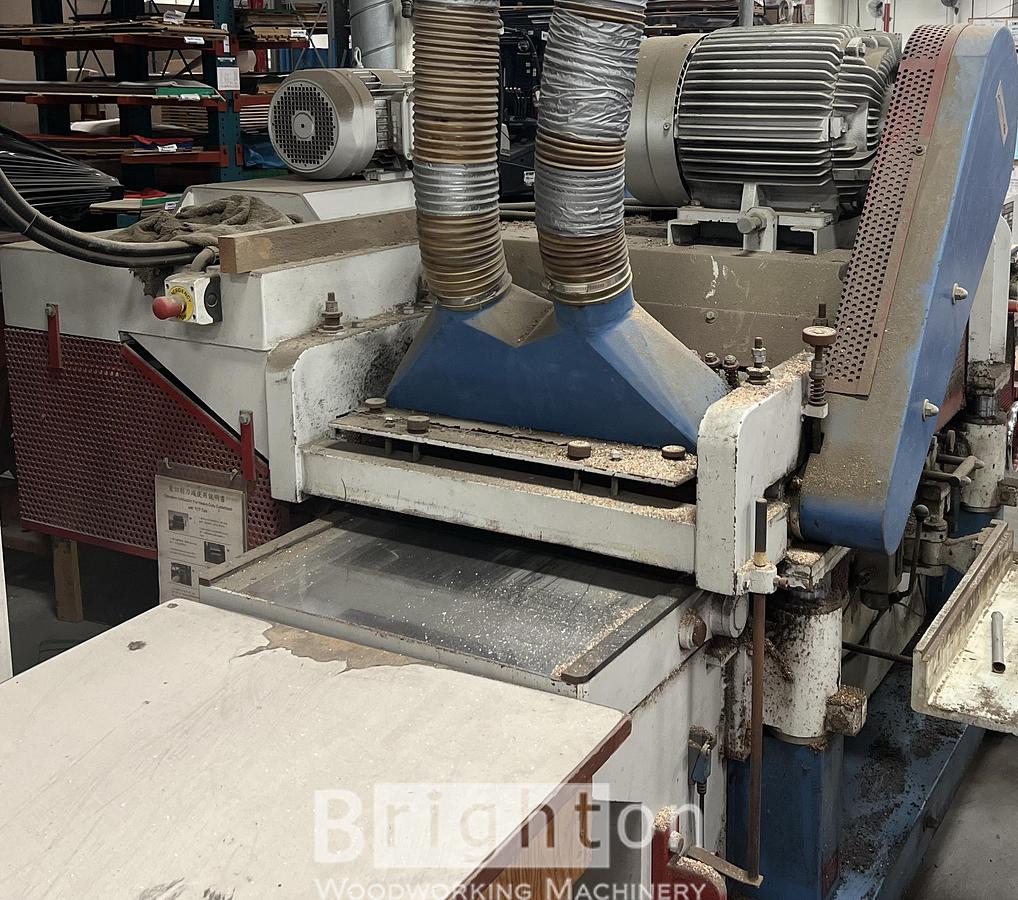

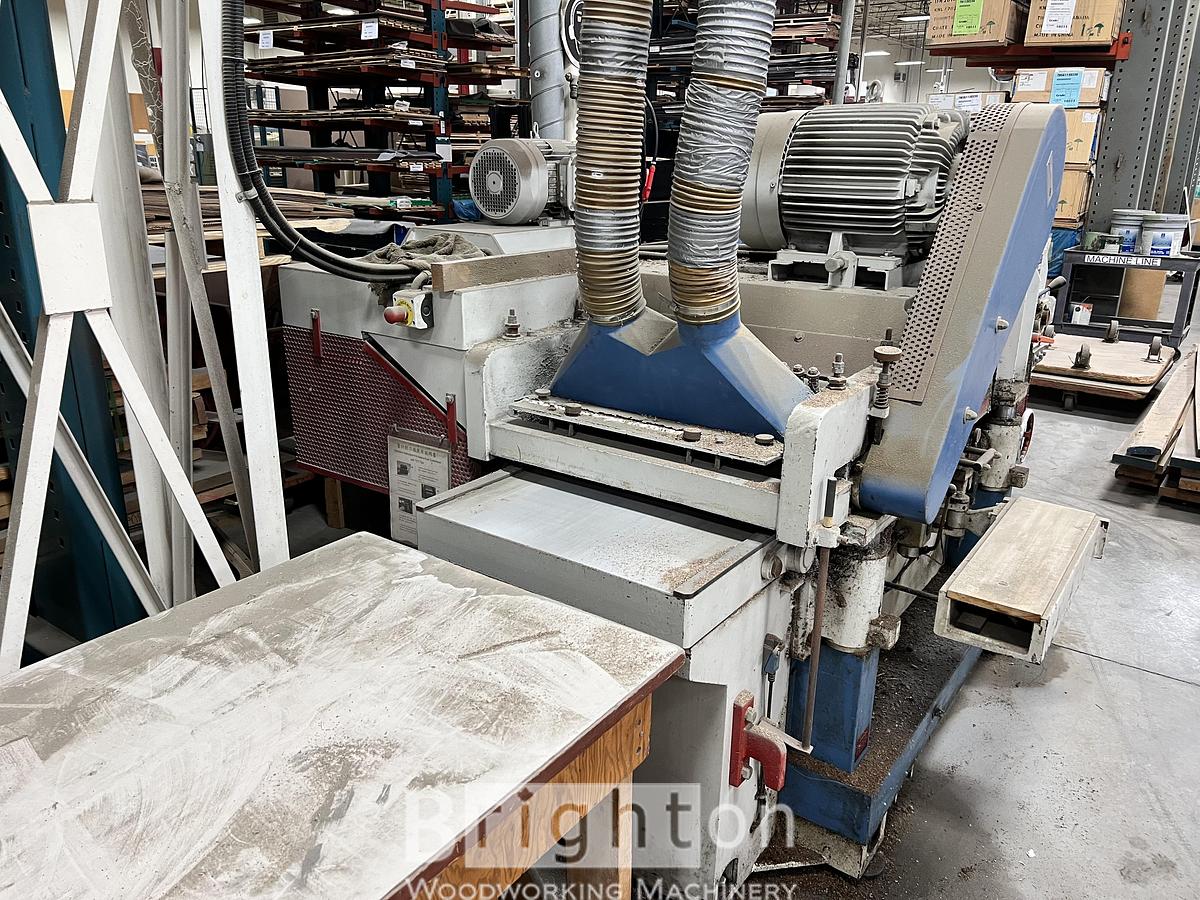

Infeed table: Hard chrome plated for max. wear resistance; relieves upper feed mat with spring loaded spikes; allows cupped bowed or warped boards to feed into the heads for max. straightening capability.
Powered lowering & raising of bed table on: (4) Columns via a 1 HP motor; handwheel for fine adjustment of thickness control.
Spiral cutterheads; digital control for accurate thickness setting.

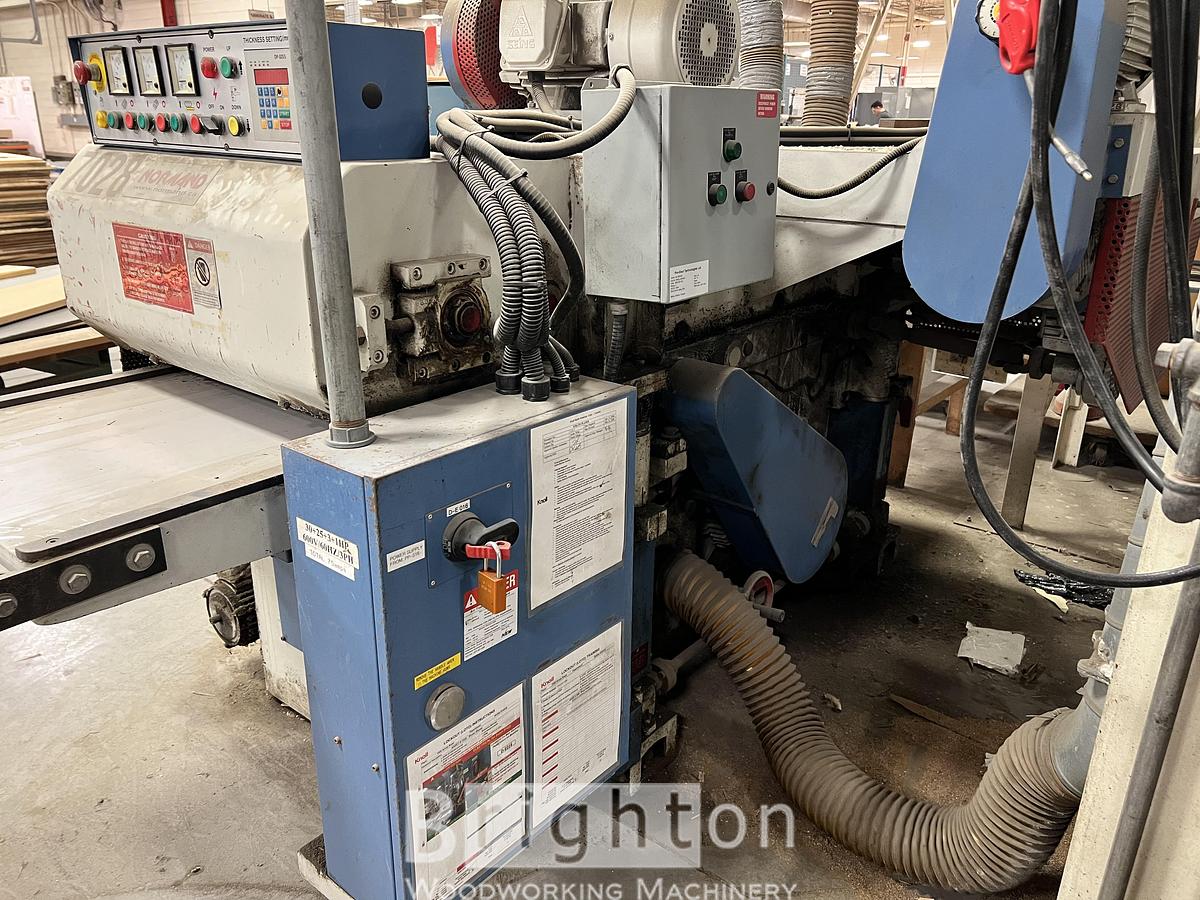

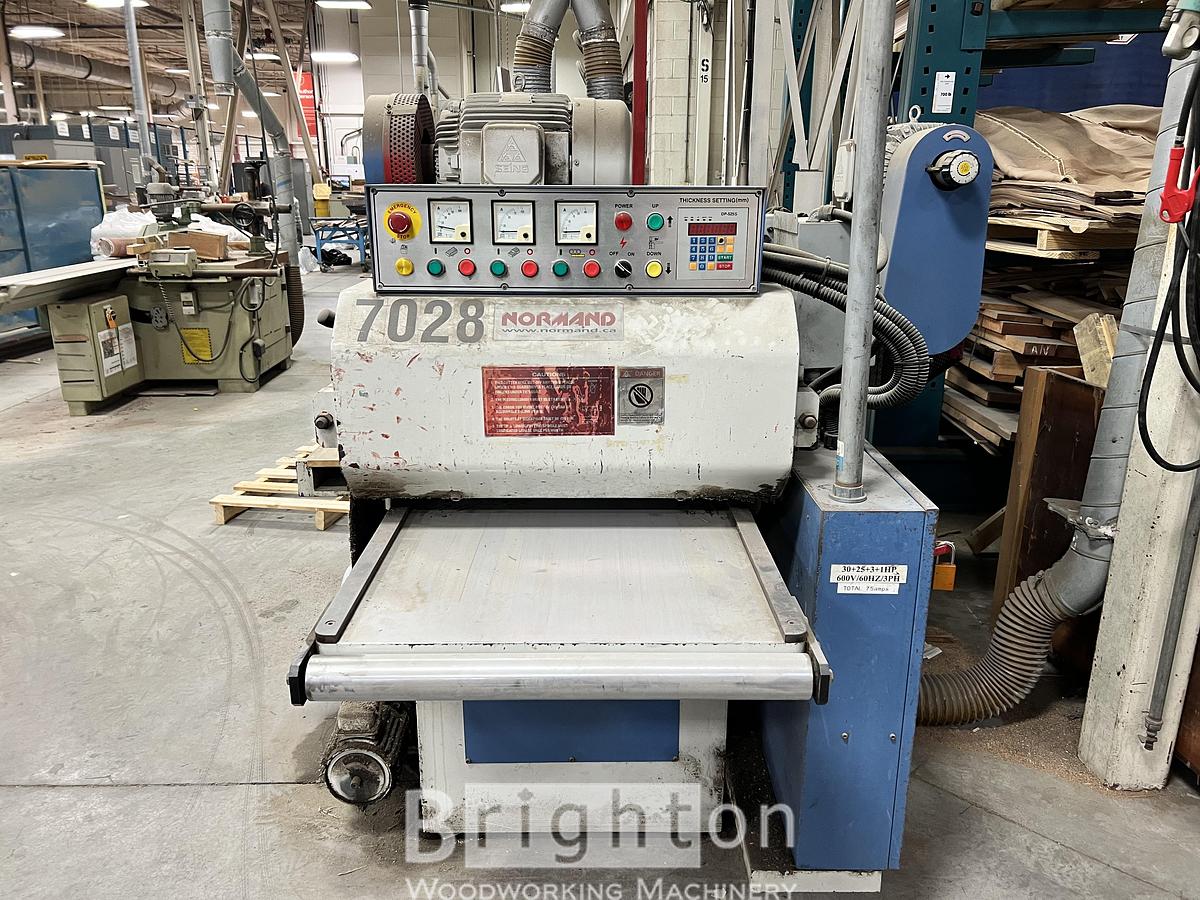

Side-mounted electrical control & Operator Panel.
Automatic feed chain tensioning.
Staggered upper infeed fingers to eliminate small part jambs.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
