2012 SCM Pratix-S used Flat table CNC #BM2087

Sold

2012 SCM Pratix-S used Flat table CNC #BM2087

Location:Uxbridge, Canada

Description

SCM Model Pratix-s used flat table cnc.

"note: click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"

Specifications

ManufacturerSCM
ModelPratix-S used Flat table CNC
Year2012
ConditionUsed
Stock NumberBM2087
QualityVery Good
Electrics400 V / 3 Ph / 60 Hz includes transformer for 600 volt.
*All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Additional Features

Aluminum 5' x 12' traveling "Bridge Gantry" and stationary dual-vacuum table with a "MATRIX" square grid pattern for fixturing parts; grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoilboards for "nested base machining"; part location pop-up pins mounted on the table perimeter.

Working area "X" Axis is 145.2" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.84" (250 mm); max. material thickness 4" (100 mm).

Max Positioning Speed: "X" & "Y" Axis at 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system with high precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screw in "Z" axis; all axes ride on extra large precision profile linear guideways.

Boring Head: 3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) spindles in "X" axis & (2) spindles in "Y" axis.

Main Spindle: (1) 9 HP (6.7 kW) Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM; (1) 10-position ATC tool rack mounted to RH side of the machine base.

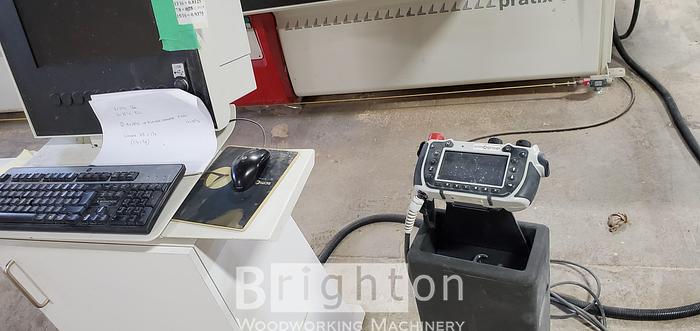

PC Front-End with: "XILOG Plus" + Windows "XP Pro" operating system; 17" high resolution LCD; ergonomic keypad; CD ROM & 1.44 MB disk drives; USB ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible' all computer components are mounted on a mobile stand.

Transformer, vacuum pump included.
