2007 SCM Olimpic K203 Used Edgebander
2007 SCM Olimpic K203 Used Edgebander
Uxbridge, Canada
Description

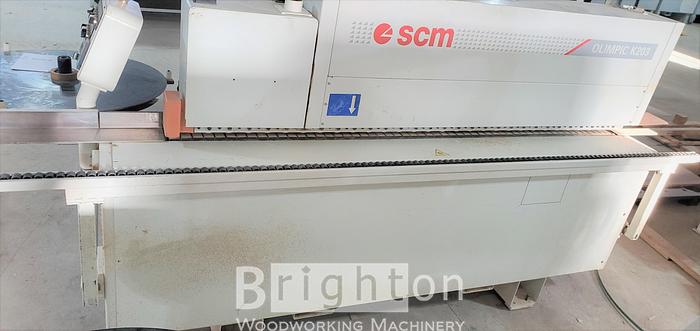

SCM K203 used edgebander. See video of it working.
"note: click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"
Specifications
| Manufacturer | SCM Olimpic |
| Model | K203 Used Edgebander |
| Year | 2007 |
| Condition | Used |

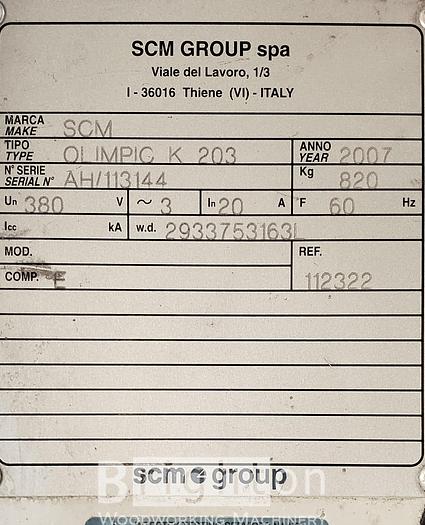

| Serial Number | AH/113144 |
| Stock Number | BM2082 |
| Quality | Very Good |
| Electrics | 380 V / 3 Ph / 60 Hz. |
| Weight | 820kg |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
5/16″ (7.9 mm) Max. edge cap. for strip feeding, 1/8″ (3 mm) for coil feeding; 60 mm min.
panel width and 160 mm min. length, panel thickness 10 – 50 mm.
Equipped with: Automatic coil feed magazine & shear device up to 1.2 mm;
semi-automatic magazine for feeding strips; Teflon coated glue pot (heat-up time 10 Min),
1.2 mm cap. guillotine, 2-roll pressure unit w/mechanical setting.

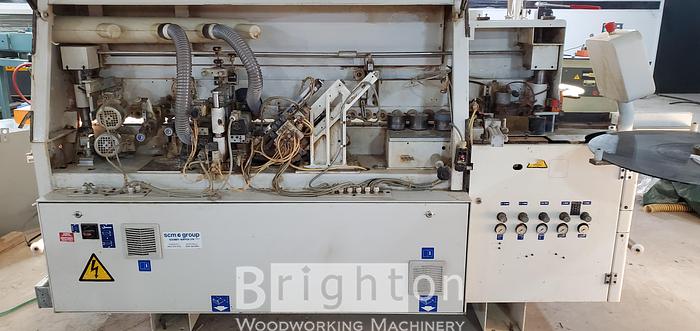

Workstations: Double motor front & rear end trim mounted on THK guides complete w/copying
device (0.4 HP – 12,000 RPM motor ea.), tilts 0° – 15° from the control panel with
(2) preset positions
Top & bottom flush & bevel trims (0.7 HP – 12.000 RPM motor ea.), bevels 0° – 15° with
precision digital indicators for quick setup
Top & Bottom Buffing
27 FPM Fixed feed speed, 0.75 HP feed drive. – Complete with: sound enclosure (dust cover for glue station is missing),
mechanical digital readouts for setup adjustments, frequency inverter, outboard panel
support, and used tooling
