2009 Cefla Mito used automatic Spray finishing system c/w Sorbini cleaning brush machine #BBM2708

2009 Cefla Mito used automatic Spray finishing system c/w Sorbini cleaning brush machine #BBM2708
Location:Ontario, Canada
Description

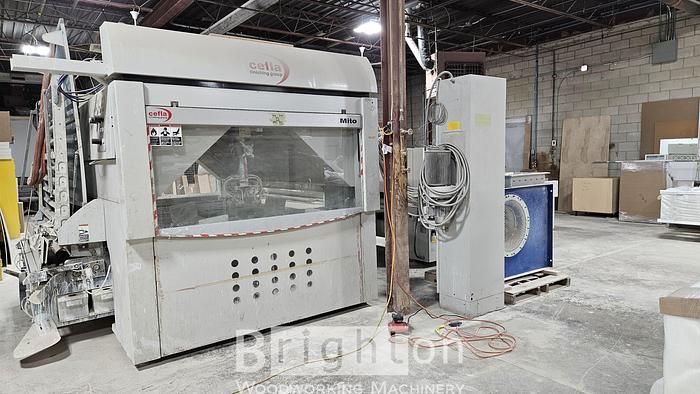

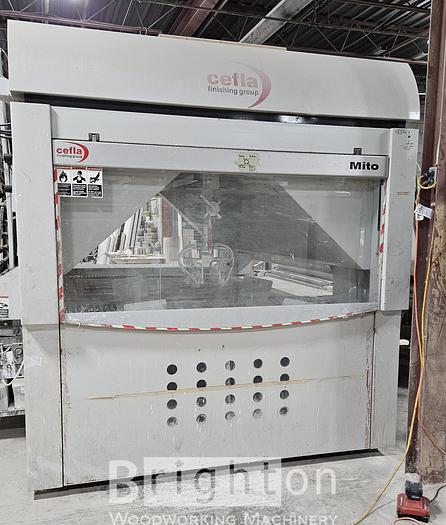

2009 Cefla Mito complete used automatic Spray finishing system
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information
Click <SHIP> for shipping information.
Specifications
Manufacturer | Cefla |
Model | Mito used automatic Spray finishing system c/w Sorbini cleaning brush machine |
Year | 2009 |
Condition | Used |
Stock Number | BBM2708 |
Quality | Very Good |

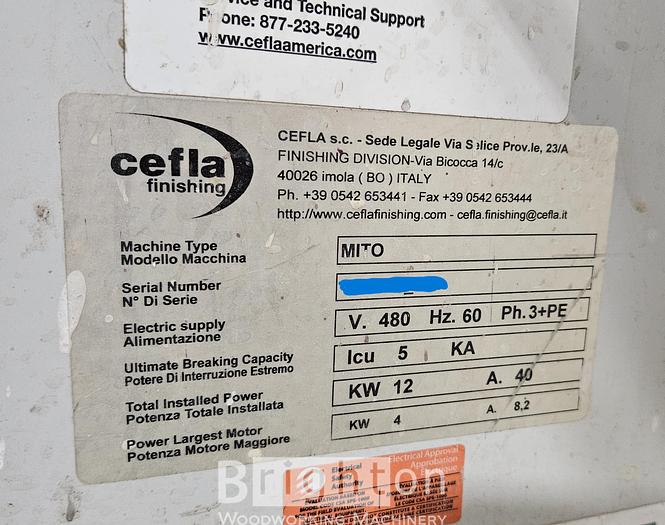

Electrics | 600V / 3Ph / 60 Hz |
Additional Features
Complete Spraying System with SORBINI Cleaning Brush machine.
Reciprocating Feed Through System for Waterborne & Solvent-Borne Coatings: The max. flexibility and technology for the continuous spraying of any kind of raised panels.
Features:

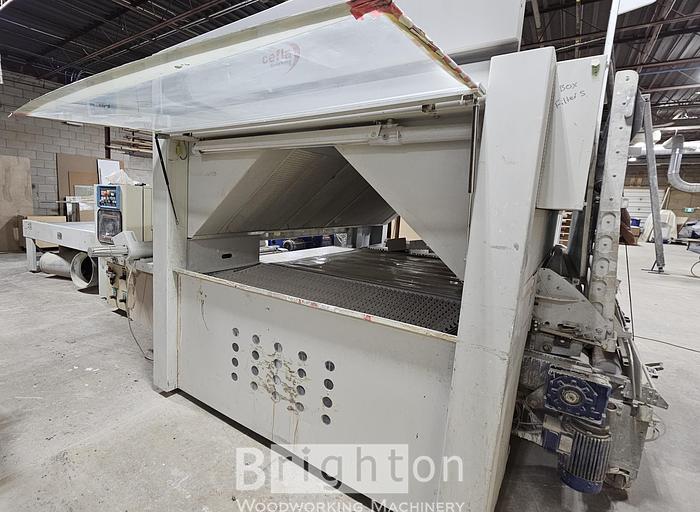

- Machine designed with a solid structure:
LASER 3D; full accessibility, thanks to the wide use of glass superficies, access doors, and extractable parts. -- Conveying System with: CFB Belt with sealed edge, driven by inverter. -- Axis driven by the powerful brushless motor and by a sophisticated toothed belt handling system, with recycling sphere bearings. The best performances in speed, acceleration, and the softness in guns motion allows to achieve the max. application quality.

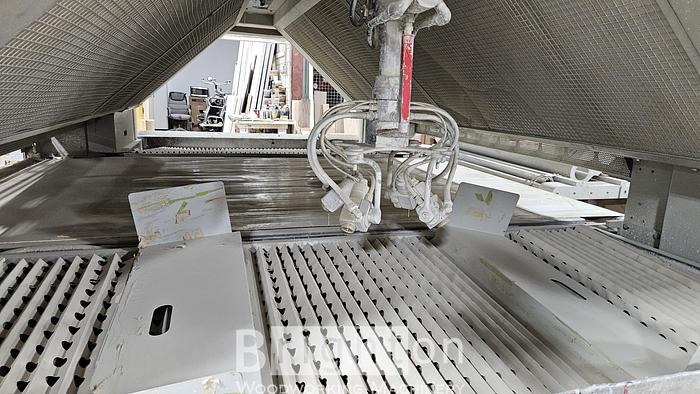

- The central axis holds: (1) Gun supporting arm (removable), equipped with quick-release (predisposed for max. 4 guns); complete with: Manual height adjustment, (3) high pressure lacquer feeding circuits with recycle; lacquer filters with stainless steel fittings.

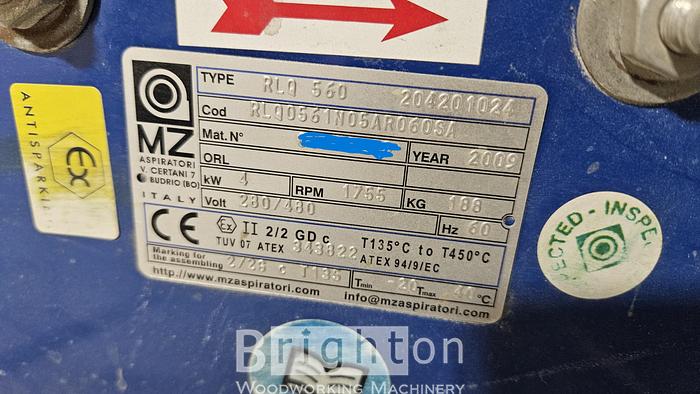

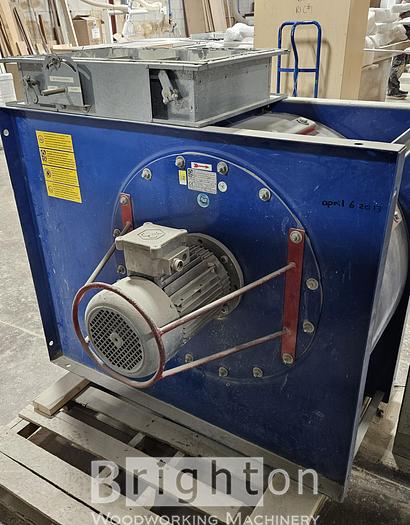

- Exclusive pressurization flows analysis and sophisticated air diffusion plenum with double fan for air intake and filtration results in: Higher lacquer saving, better machine cleaning. Circulation provided by floor mounted MZ RLQ 560, Direct-drive 4 KW , 1755 RPM motor.

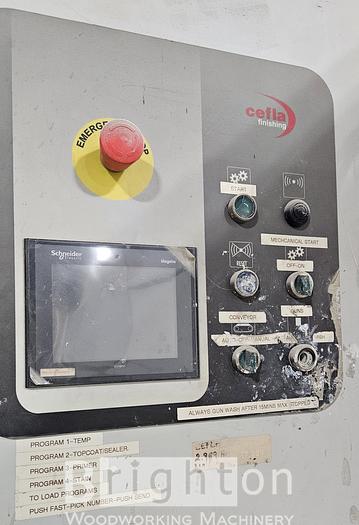

- Tanks with supporting areas for filters by COLUMBUS or ANDREAS-type filters.Electronic Scanner for: Shape reading and workpieces positioning; max. efficiency in managing the guns' spraying.TECHNICAL FEATURES:Total length of the machine: 4,650 mmTotal width of the machine: 3,850 mm (4,210 mm with fan)Machine structure height: 2,500 mmElectronic control unit with: PLC and software for machine managing.Main control cabinet: Pressurized, placed at the machine infeed, along the service side complete of cable and wiring system for connection to all the users.Spraying parameters management is operated by PLC:Working programs setup, measurements of the lacquered surface & lacquer consumption, 5" color touchscreen display for diagnostic and control; possibility to exchange data from and to PLC managing complete Lines.Possibility to manage pumps for color change/washing (up to 4 pumps).

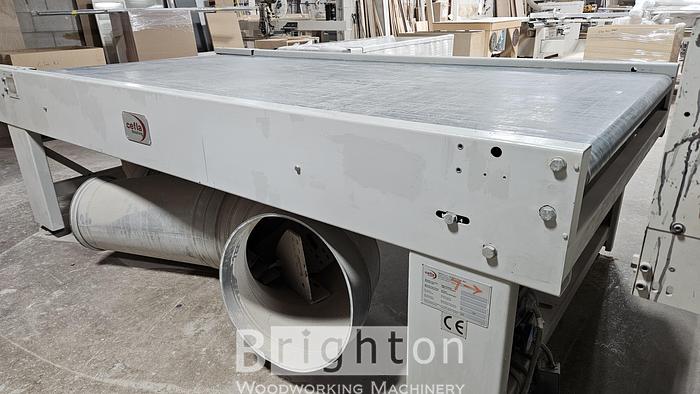

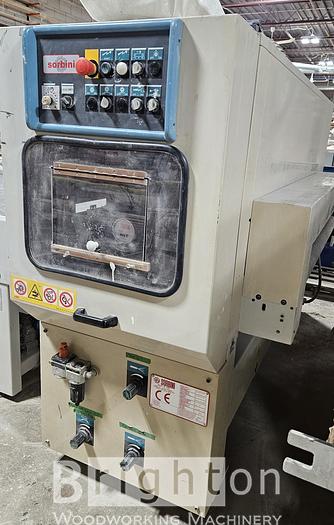

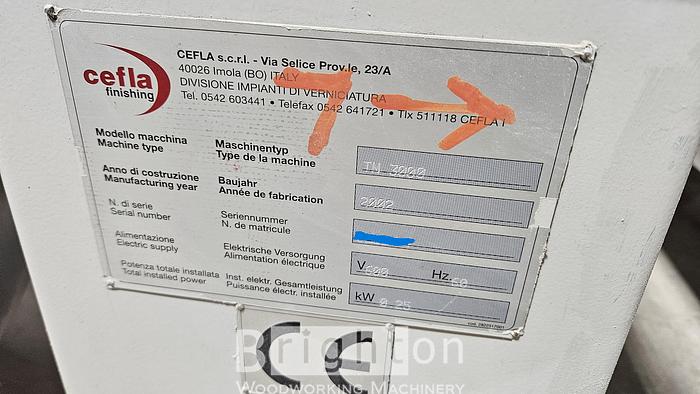

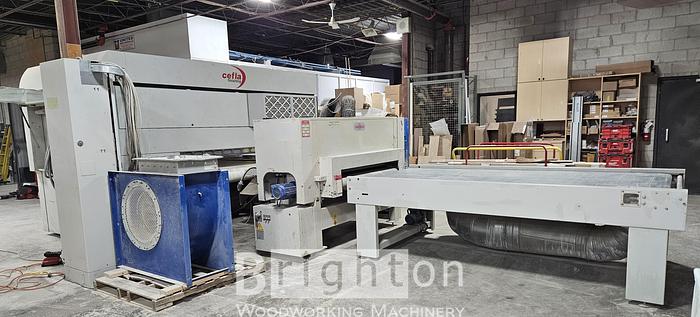

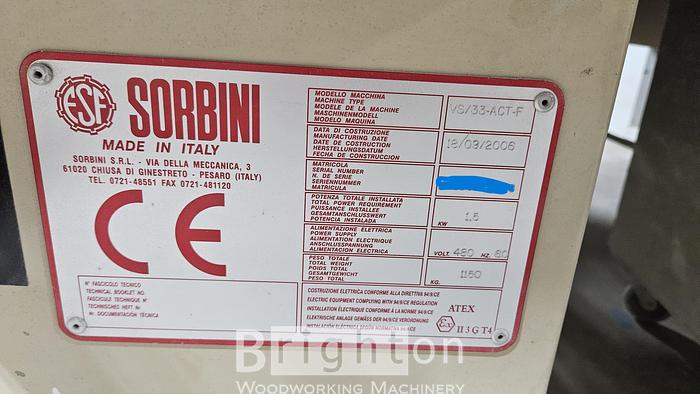

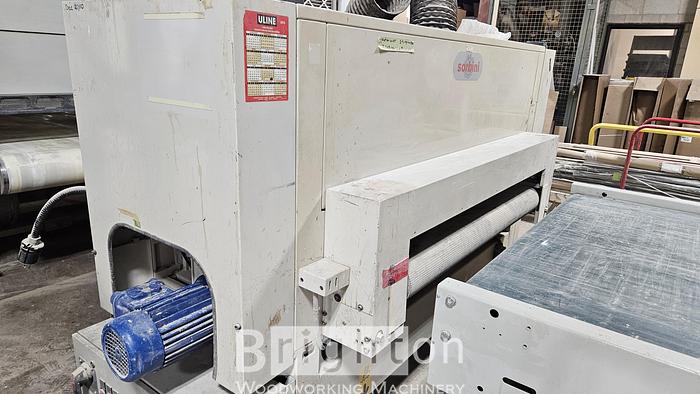

- Comes with: 2006 SORBINI/CEFLA VS/33-ACT-F, 460/3/60 Panel Cleaning Brush with brush for the top roll followed by a nozzle blow off station. (1) Head, 53" width cap. Top brush head; features timed rotating air blowers, air liner blower with nozzles. Upper mounted Anti-static ionization bar; 400 RPM brush speed.With CEFLA TM 3000, 600/3/60 V, infeed belt conveyor. -- Line is disconnected/dismantled per last (8) photos.
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
