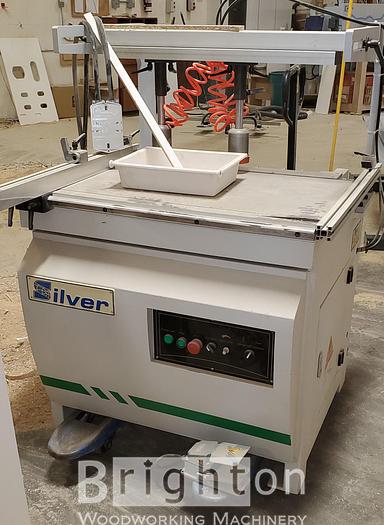

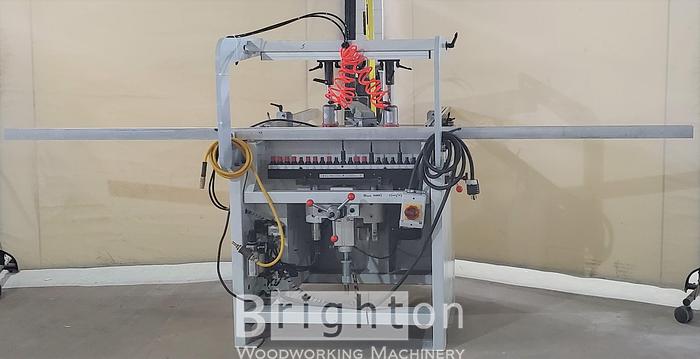

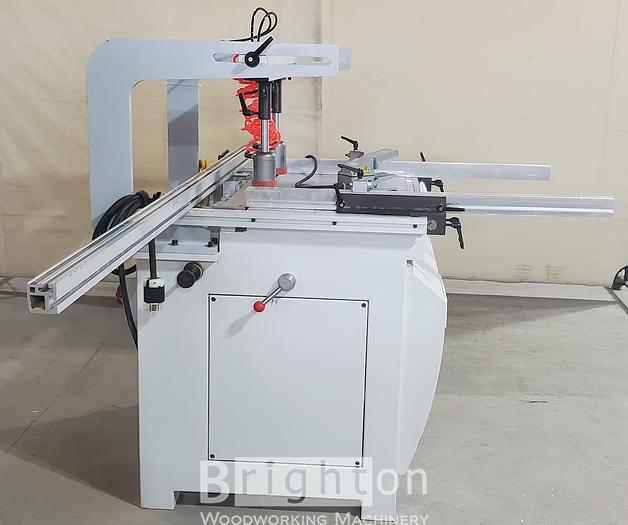

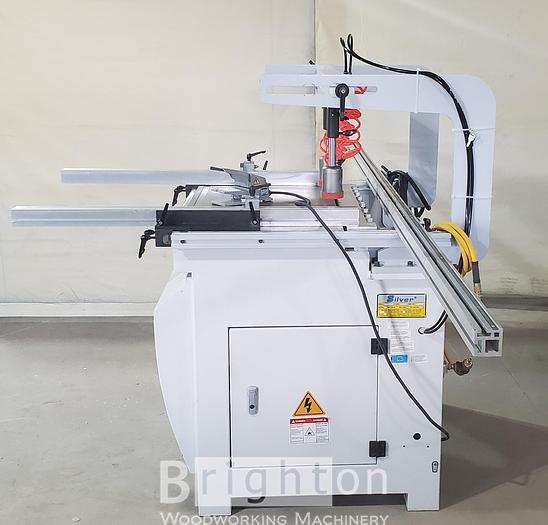

2016 Silver SJK-21A Line Boring Machine

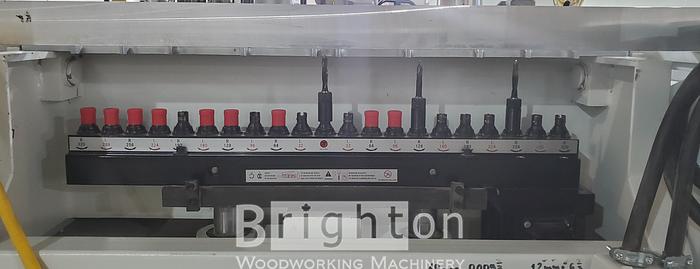

Silver SJK-21 with Horizontal & Vertical Boring on 32 mm centers.(21) Spindles in line on one boring head (aluminum alloy single block), drills vertically from top & horizontally from rear.
"note: click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"

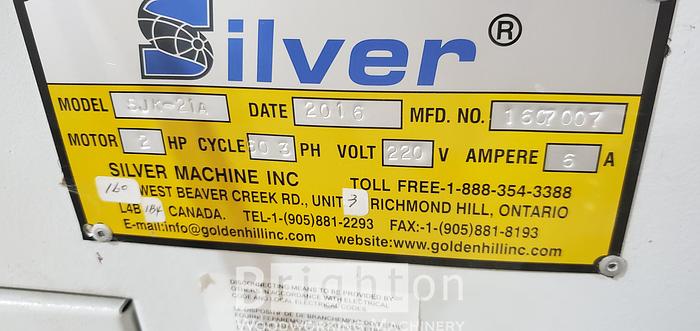

|Model||SJK-21A Line Boring Machine|
|Electrics||220 V / 3 Ph / 60 Hz|
|*||All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.|
SILVER SJK-21 -- Features pneumatic adjustment for horizontal boring.Specifications: -- Max drill dia. is 1.38" (35 mm); Max panel thickness is 2.36" (60 mm); Table size 36" x 19.75" (914 x 502 mm). -- Length of cross fence is 102" (2,600 mm); length of aluminum table fences are 39" (1,000 mm) to the left and 28" (710 mm) to the right with flip stops.Equipped with: -- Depth stop adjustment, (2) holddown air cylinders, and foot pedal operation for clamping/drilling cycle. -- 2 HP - 3,600 RPM TEFC motor with thermal overload protection and low voltage controls.. -- Includes (12) Quick change chucks..
