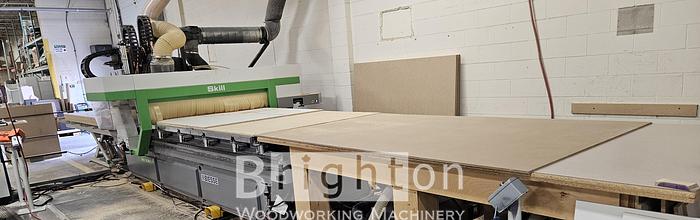

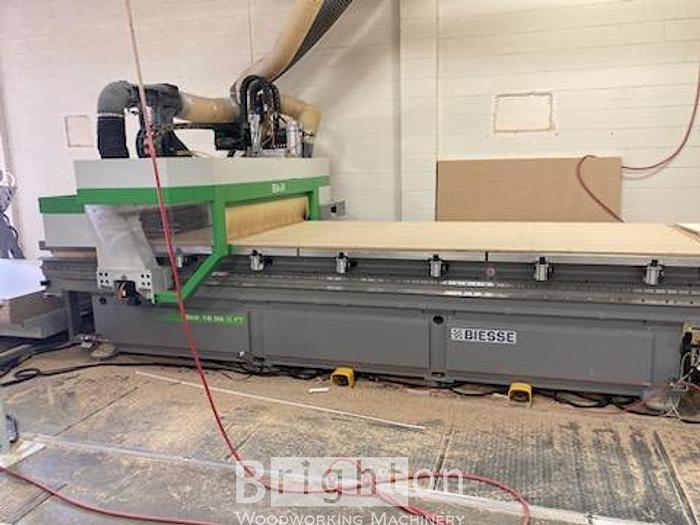

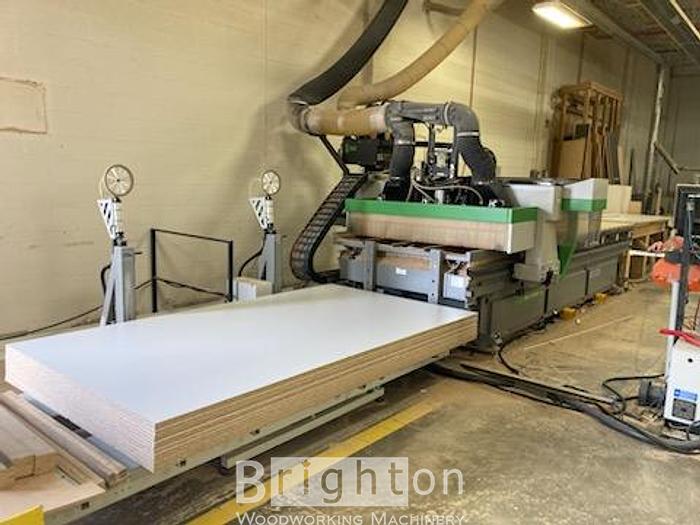

2012 Biesse Skill 1536 G FT used flat table CNC with Load / Offload capability. #BBM2667

Biesse Skill 1536 G FT 5×12 with auto pick and load and offload rake.

The Skill G FT is the new generation of gantry CNC machining centers designed for nesting technology. Rich in function and performance, the Skill provides high quality machining, efficiency and long lasting precision by means of proven construction solutions.

-5` x 12` with “Matrix” grid phenolic surface for nested base manufacturing

-X-axis working capacity: 148.2″ (3765mm)

-Y-axis working capacity: 61.4″ (1560mm)

-Z-axis stroke working capacity: 12.7″ (324mm)

-Maximum material thickness: 6.6″ (120mm)

-X-axis & Y-axis positioning speed: 279 ft/min (85 m/min) by precision rack and pinion system

-Z-axis positioning speed: 98.4 ft/min (30 m/min) by precision ball screws

-All axes use linear guides and ways controlled by digital, brushless AC servo motors.

-Automatic centralized lubrication system

-Two (2) pneumatic pop-up reference rails in Y-axis and two (2) pneumatic pop-up reference stops in X-axis

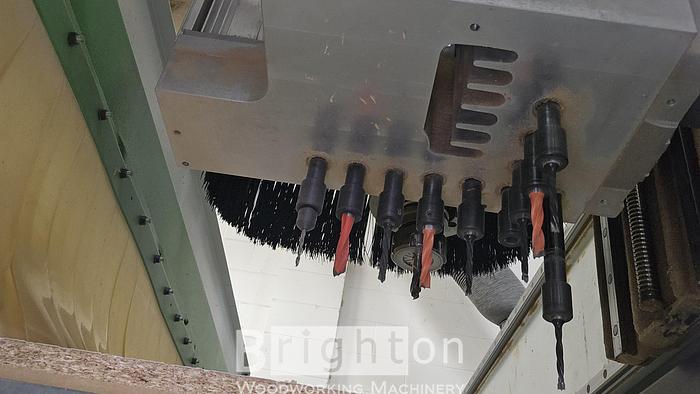

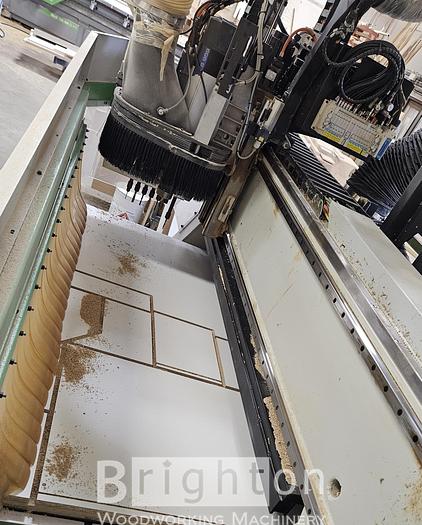

-One (1) variable speed boring head 2.5HP (1.7kW) @ 2800RPM to 4.5HP (3.0kW) at 6000RPM with eleven (11)independent vertical spindles (7 in X-axis and 4 in Y-axis)

-HSD electro-spindle with HSK-F63 adapter, 16.1 HP (12 Kw), air cooled, variable speed 1,000-24,000 RPM

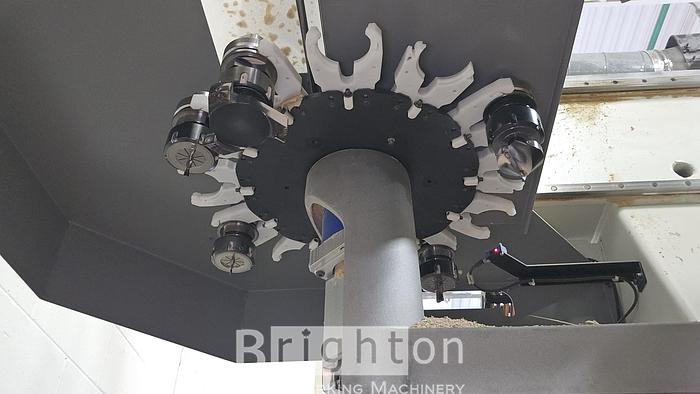

-Twelve (12) position ride along tool changer

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
