2008 Homag Weeke Vantage 33M used flat table cnc #BBM2666

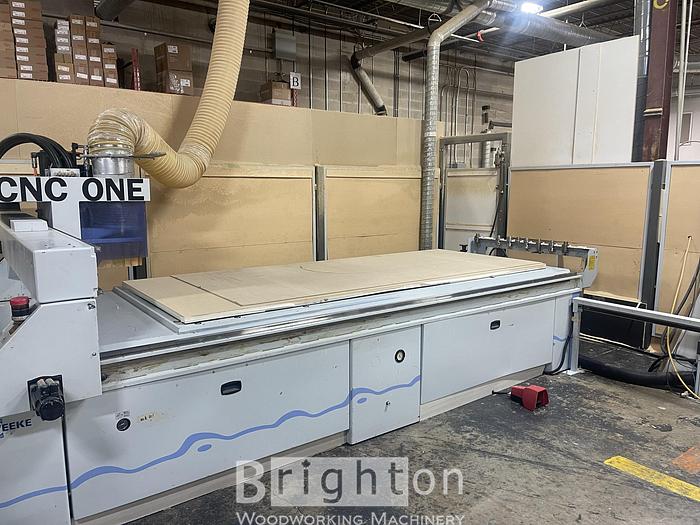

4' x 10' "Flat Table" Bridge Style Gantry machine; working area

cap.: "X" axis 3,700 mm (145.7"), "Y" axis 1,250 mm (49.2"),

"Z" axis stroke 155 mm (6.1"), max. workpiece thickness 85

mm (3.3").mm

The head travels on THK linear motion guides on all axes; "S/C

Tech" double rack & pinion drive in "X" axis, precision ball

screw drive in "Y" & "Z" axis; positioning speed in "X" & "Y"

axis is 96 MPM (315 FPM), "Z" axis is 25 MPM (82 FPM).

Boring unit with: (7) Independent vertical

spindles, 2.7 kW (3.6 HP) motor, programmable variable

speed from 1,500 - 7,500 RPM.

Equipped with: (1) 12 HP (9 kW) High speed constant duty,

variable speed electro-spindle router with HSK F 63 adaptor,

programmable from 1,250 - 24,000 RPM, RH or LH rotation.

(8) ATC positions rack located at the RH end of machine.

PC Front-End with Weeke "Power Control PC 85T" +

WINDOWS XP + WoodWOP 5.0 operating system; 17" TFT

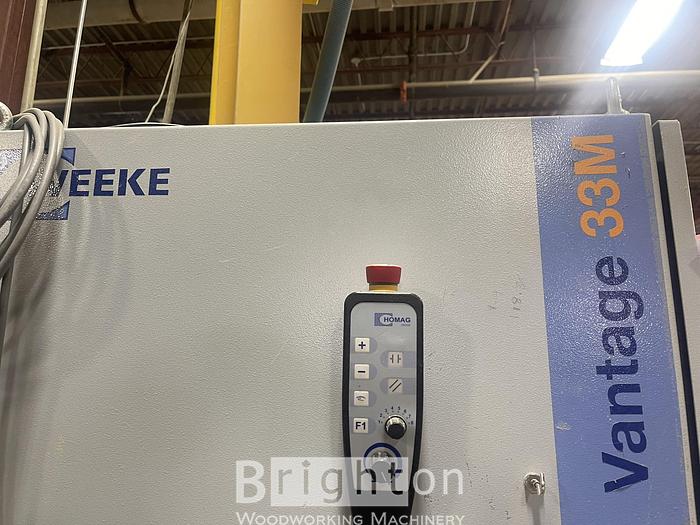

color graphic monitor, keyboard for data entry, PC 85T hand

control pendant; CD R/W & 1.44MB floppy drives, EtherNET

interface for LAN connection to office PC, RS-232 serial

interface, USB ports.

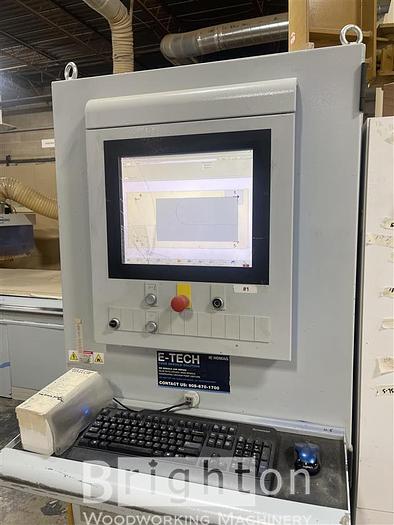

The controller is contained in a separate free-standing, "air

conditioned", dust free control cabinet which can be placed at

either the LH or RH side of the machine.

WoodWOP 5.0 allows the operator to program the machine off-

line with the same intuitive icon driven software that the

operator has on the machine controller.

Equipped with: User Friendly "S/C Tech" MATRIX grooved

phenolic vacuum table with 2-zones & (11) pop-up locator stop

pins; the MATRIX table can accommodate mask, rubber

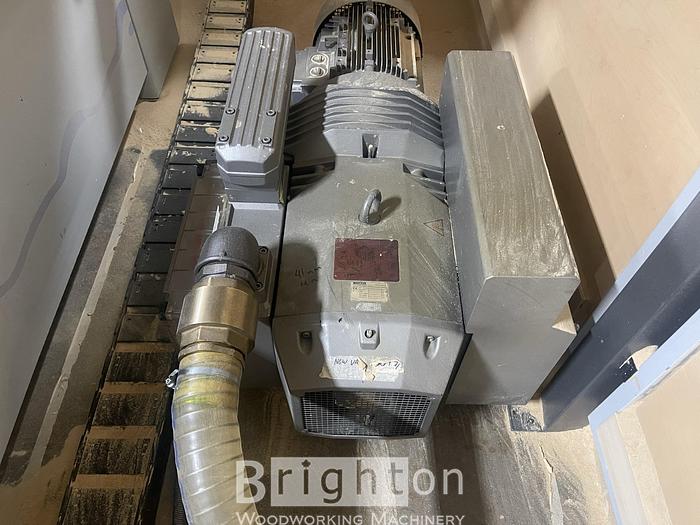

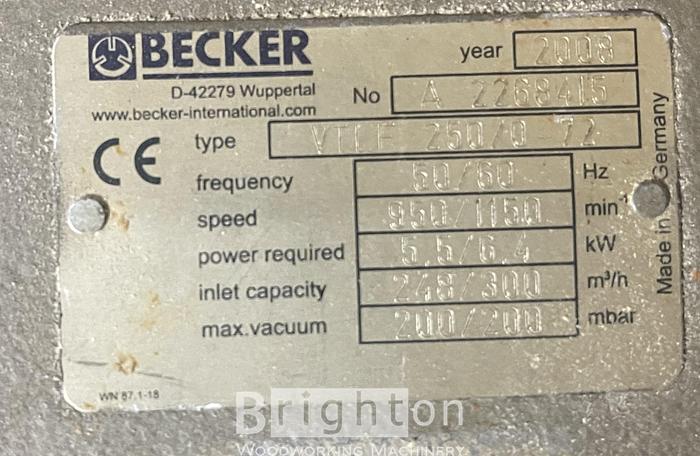

gaskets, vacuum pods, spoil boards. Complete with: (1) 300

m3/h vacuum pump
