2023 Holytek CM-405BEHT-600 lightly used, like new 7.5 hp, 8ft Jointer with helical head. #BM2663

2023 Holytek CM-405BEHT-600 lightly used, like new 7.5 hp, 8ft Jointer with helical head. #BM2663

Location:Uxbridge, Canada

orCall (647) 384-9663

Description

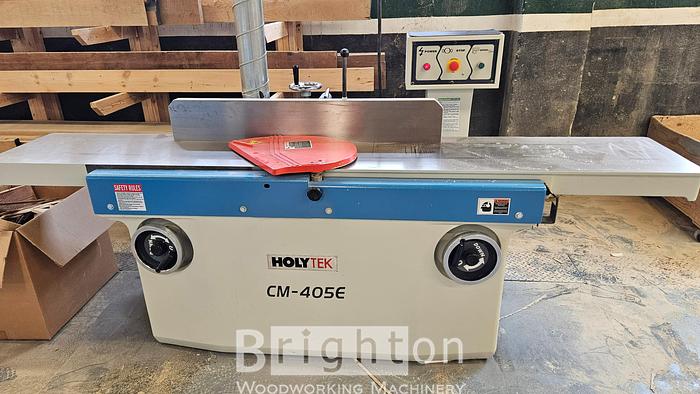

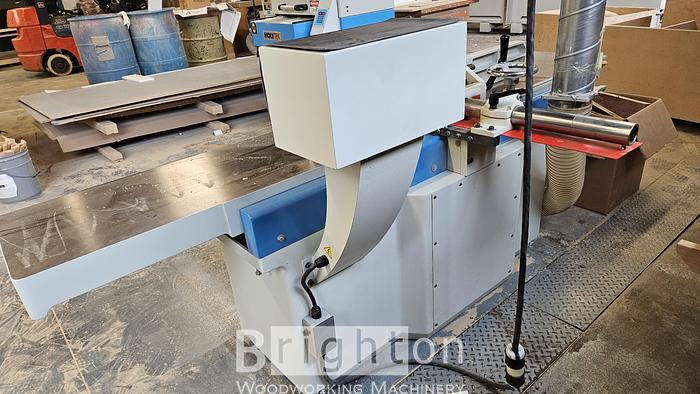

2023 Holytek CM-405BEHT-600 lightly used, like new 7.5 hp, 8ft Jointer with helical head

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.

Click <LEASE> for leasing information

Click <SHIP> for shipping information.

Specifications

ManufacturerHolytek
ModelCM-405BEHT-600 lightly used, like new 7.5 hp, 8ft Jointer with helical head.
Year2023
ConditionUsed
Stock NumberBM2663
QualityVery Good

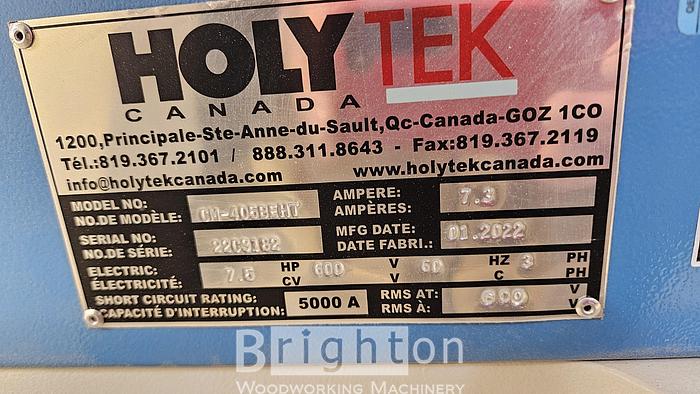

Electrics600V / 3Ph / 60 Hz

Additional Features

Cast iron table and frame guaranteeing robustness and stability.

Durable solid steel spiral cutter head for precise, quality cutting, quiet operation and beautiful finish. Six (6) rows of twenty (20) four (4) edge carbide inserts. Quick change of inserts.

Micro-adjustment of the height of the work table.

Independent adjustment of the table height (left-right) thanks to the steering wheels placed at the front to facilitate and speed up the maneuver.

Table assembled on eight (8) support points including five (5) eccentric points for perfect parallel adjustment.

Table for making grooves up to 15 mm.

Tilting guide from 0 ~ 45° and equipped with stops.

Planing width adjustment on rack with handwheel for quick adjustment.

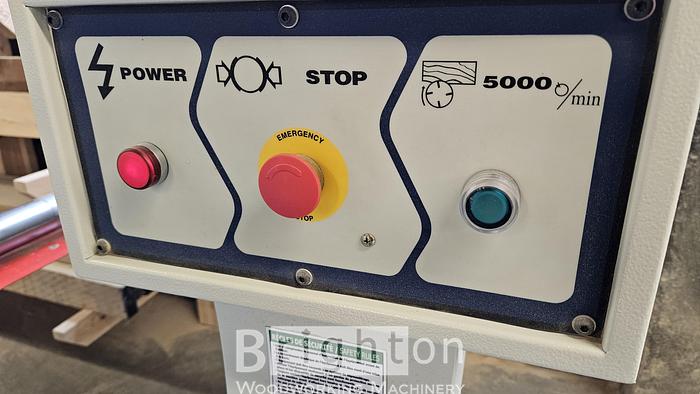

Independent, easy-access control panel with emergency stop button.

Safety guard with adjustable tension ensuring adequate pressure for constant return and maximum safety.

125 mm(D) suction outlet.

Also available: 5CV/230V/60C/1Ph

Specifications:
Motor 7.5HP/600V/60C/3Ph
Cutting head 107(D) x 405(L) mm
Dimensions of the insert knives 30 x 12 x 1.5 mm
Cutting head rotation speed 5000 RPM
Maximum working width 405 mm
Maximum cutting thickness 15 mm
Guide tilt 0 ~ 45°
Work table dimensions 2480(L) x 405(D) x 105(H) mm
Table height 800 mm
Machine dimensions 2500(W) x 1180(D) x 1200(H) mm
Packaging dimensions 2690(L) x 890(D) x 1020(H) mm
Net weight 570 kg / 1254 lb
Gross weight 630 kg / 1386 lb

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
