2023 Holytek LSD-630DHC lightly used, like new 10hp, 24 inch planer with helical head #BM2662

2023 Holytek LSD-630DHC lightly used, like new 10hp, 24 inch planer with helical head #BM2662

Location:Uxbridge, Canada

orCall (647) 384-9663

Description

2023 Holytek LSD-630DHC lightly used, like new 24 inch planer with insert knives

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.

Click <LEASE> for leasing information

Click <SHIP> for shipping information.

Specifications

ManufacturerHolytek
ModelLSD-630DHC lightly used, like new 10hp, 24 inch planer with helical head
Year2023
ConditionUsed
Stock NumberBM2662
QualityVery Good
Electrics600V / 3Ph / 60 Hz

Additional Features

Spiral head diameter 100 mm
Spiral head rotation speed 5500 RPM
Dimensions of the pellets 30 x 12 x 1.5 mm (90) - 6T
Training speeds 6 / 9 / 12 m/min
Maximum width of workpiece 609 mm
Minimum length of workpiece 250 mm
Working thickness 6~200mm
Maximum planing capacity 8 mm
Table dimensions 965 x 635 mm
Sectional drive rollers at the entrance Ø 75 mm (x2)
Suction outlet diameter 150 mm (6")
10hp main motor.
Machine dimensions 1170(W) x 1060(D) x 1240(H) mm
Packaging dimensions 1260(W) x 1160(D) x 1420(H) mm
Net weight 900 kg / 1980 lb

Features:
Heavy duty steel frame ensures stability and eliminates vibration.

Computer-controlled digital elevation using a 1HP motor for fast and precise automatic table positioning.

Three (3) speed drive system of 6, 9 or 12 m/min.

Double sectional drive rollers for feeding heavy-duty workpieces of varying thickness.

Anti-reverse fingers and sectional presser foot.

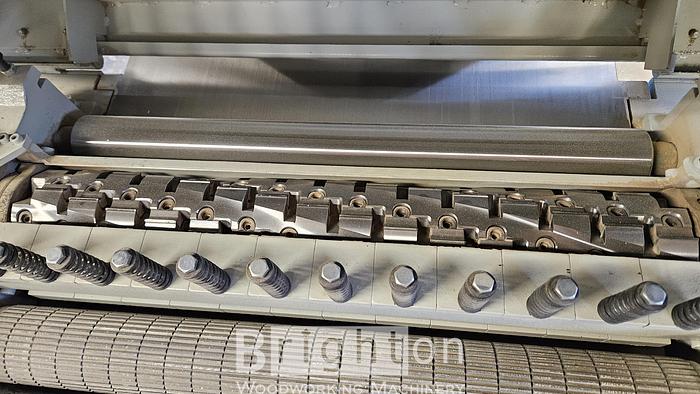

Six (6) spiral head combining quiet operation, robustness and beautiful finish. Two (2) edge insert knives 30 x 12 x 1.5 mm for saving time and money. Easy access head for quick pellet replacement.

Simple lever allowing rapid adjustment of the table rollers according to the type of wood used.

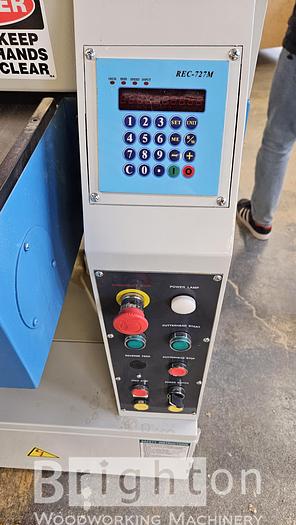

Electronic digital display control panel for cutting thickness (metric or imperial) and emergency stop button.

Control panel positioned on the right for ease of programming with the wood pieces in your hands.

Limit switch for immediate stopping of the machine when opening the hood.

150mm (6") diameter suction outlet.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. Buyer is responsible to make sure all local regulations for installation and use are followed for area in which it is being installed. Govenment regulations may differ, depending on location.
