2004 Ganner Ganno Mat Juinor 323, Used slot Mortiser and drilling.

2004 Ganner Ganno Mat Juinor 323, Used slot Mortiser and drilling.

Uxbridge, Canada

orCall (647) 384-9663

Description

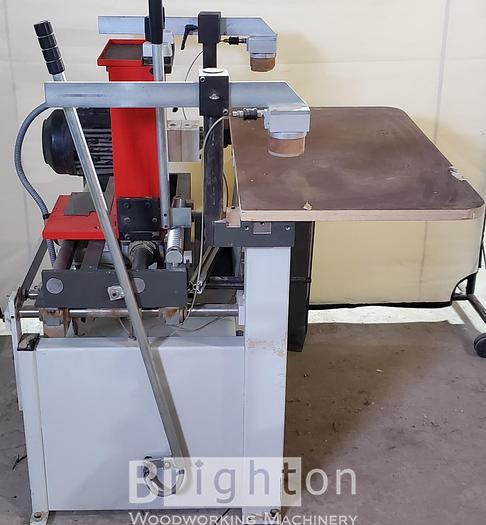

Used slot mortiser, drilling machine.

Ganner Gannomat Horizontal Mortiser & Drilling Machine. "note: click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"

Specifications

ManufacturerGanner
ModelGanno Mat Juinor 323, Used slot Mortiser and drilling.
Year2004
ConditionUsed
Stock NumberBM2020
QualityVery Good

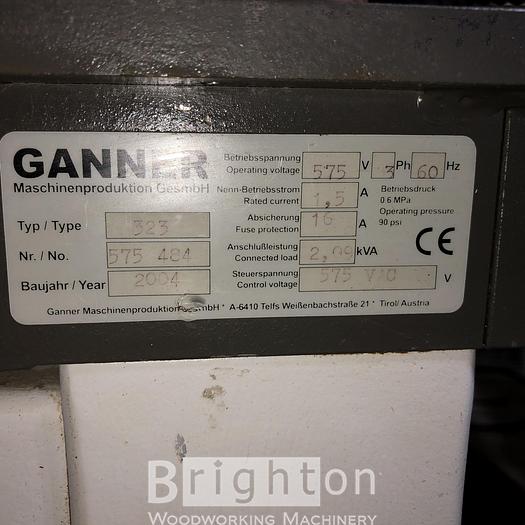

Electrics575 V / 3 Ph / 60 Hz
*All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Additional Features

Used slot mortiser, drilling machine.
Gannomat Horizontal Mortiser & Drilling Machine:
Two-piece chuck for tools up to max. 3/4″ (20 mm) shaft diameter

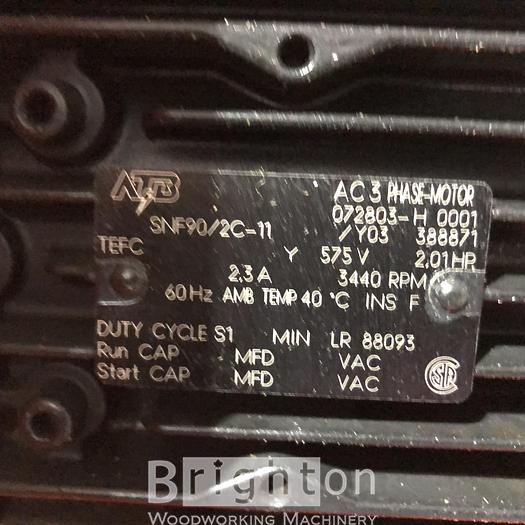

Motor 1,5 kW, 3HP 2800 rpm

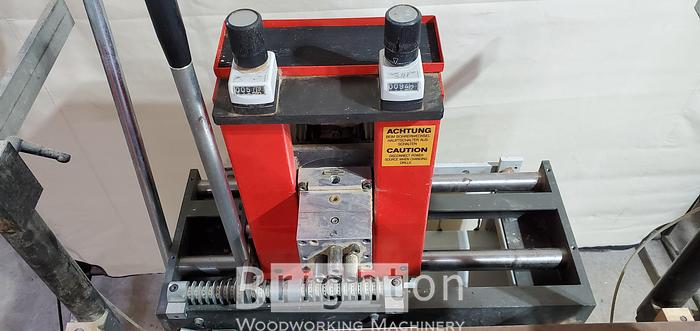

Position setting via digital counter
Position adjustment for 2 levels, pneumatic 4″ (0 – 100 mm)
Drilling depth max. 6″ (150 mm)
Precision raster bar in a 12 mm grid with:
Center locking and crossover 320 mm
2 pneumatic safety cylinders
Slot drilling device can be lowered with 2 programnocks
