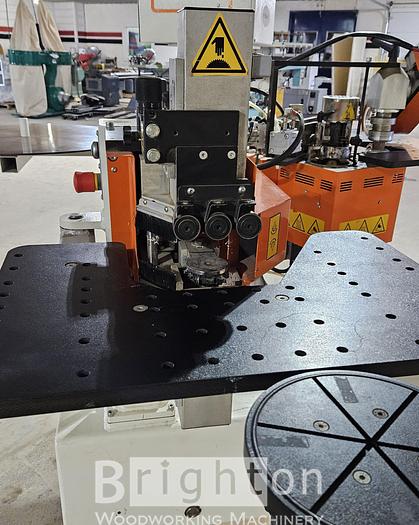

2012 Vitap Eclipse used automatic contour edgebander #BM2592

Sold

2012 Vitap Eclipse used automatic contour edgebander #BM2592

Location:Uxbridge, Canada

Description

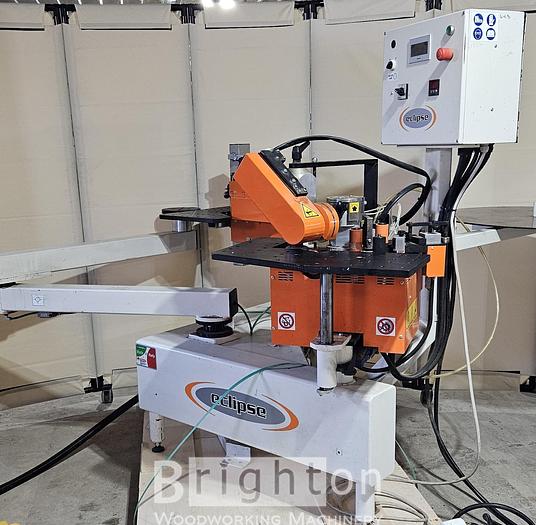

Vitap Eclipse automatic contour edge-banding with glue pot and trimming machine for big and small pieces

For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.

Click <LEASE> for leasing information.

Click <SHIP> for shipping information.

Specifications

ManufacturerVitap
ModelEclipse used automatic contour edgebander
Year2012
ConditionUsed

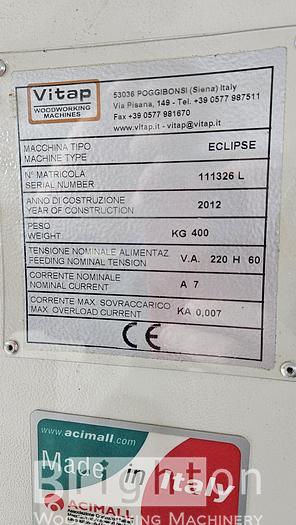

Serial Number111326 L
Stock NumberBM2592
QualityVery Good

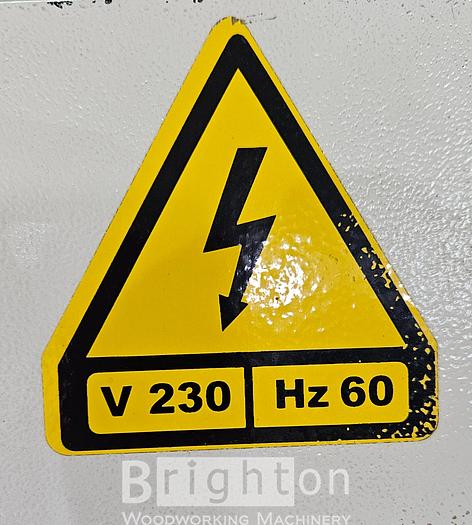

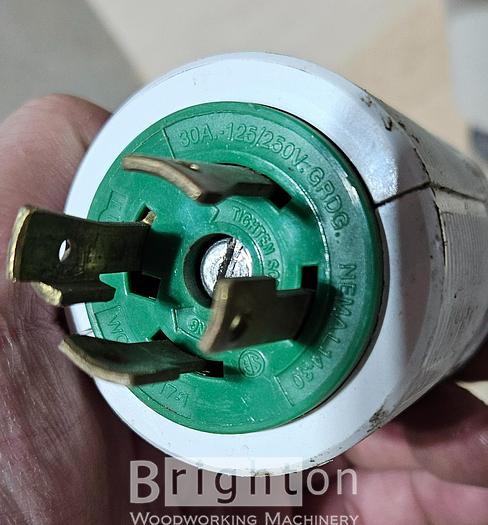

Electrics230V /3 Ph / 60 Hz

Additional Features

Vitap Eclipse automatic contour edge-banding with glue pot and trimming machine for big and small pieces includes:
- Gluing station with
- Glue and tape application on big and small shaped panels
- 1 Kg capacity glue pot
- 2 rollers to copy the shape of the piece
- Utilizes 2 x 800 heating elements with electronic temperature control via thermo regulator
- Glue application amount is adjusted via a knob
- Set up of the glue temperature
- Automatic guillotine for coiled material up to 3 mm x 45 mm
- Guillotine is activated by an electronic encoder for closed edged pieces for the joint of the extremities of the tape or by encoder when the piece has only one side contoured.
- Manual feeder of the panel
- Raise-able working table for small panels
- Electronic counter for cutting off of the tape
- On/off automatic feeder of the panel
- On/off trimming unit
- 2 rollers to copy the shape of the piece

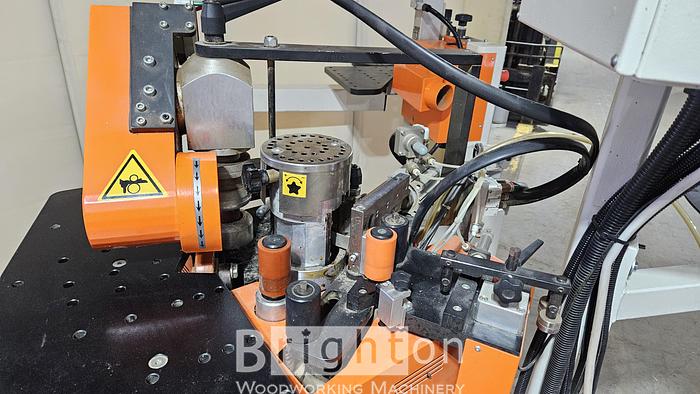

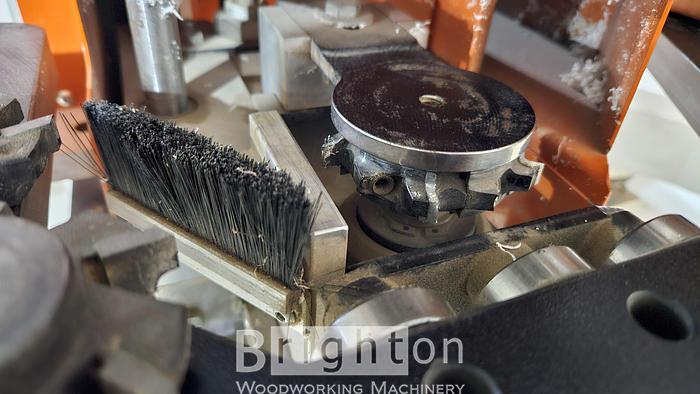

- Trimming station
- Trimming unit with 2 motors 0.5 Kw high frequency 12000 RPM with up/down/front copiers and pneumatic system to lift the motors approaching the pieces to be trimmed
- On/off trimming unit

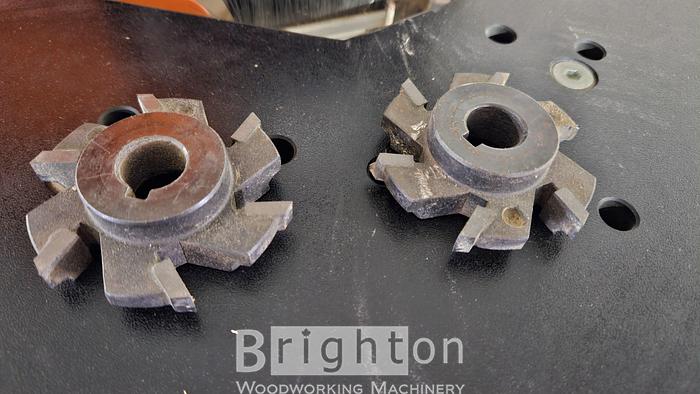

- 2 brazed cutters R=3 bevel =15° D=69 (MIN. 60) Z=6
- Raise-able working table for small panels
- Turning table unit for large panels
- Holding arm with vacuum table to hold the big panels for edging and trimming
- Dust extraction - 80 mm port
- Dimensions: 2100 x 1600 x 1600 mm • Kg 600
- CE standards
- Inside minimum radius - 250 mm (as a general rule – application dependent)
- 16 – 60 mm panel with 1 mm edge tape
- 16 – 40 mm panel with 2 mm edge tape
- 16 – 30 mm panel with 3 mm edge tape
- With I mm edge tape – the minimum outside radius is 30 mm (as a general rule)
- With 2 mm edge tape – the minimum outside radius is 50 mm (as a general rule)
- With 3 mm edge tape – the minimum outside radius is 80 mm (as a general rule)
- Height of the tape = 18 mm minimum to 64 mm maximum

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
