2008 SCM Olimpic K203 Used Edgebander #BM2565

2008 SCM Olimpic K203 Used Edgebander #BM2565

Uxbridge, Canada

orCall (647) 384-9663

Description

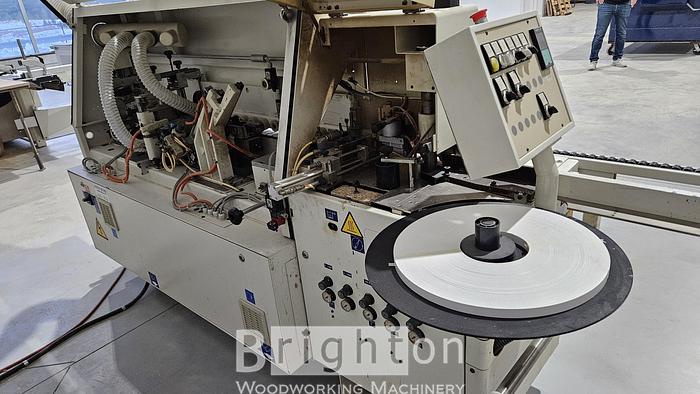

2008 SCM Olimpic K203 Used Edgebander


Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!

Click <LEASE> for leasing information

Click <SHIP> for shipping information.

Specifications

ManufacturerSCM
ModelOlimpic K203 Used Edgebander
Year2008
ConditionUsed
Stock NumberBM2565
QualityVery Good

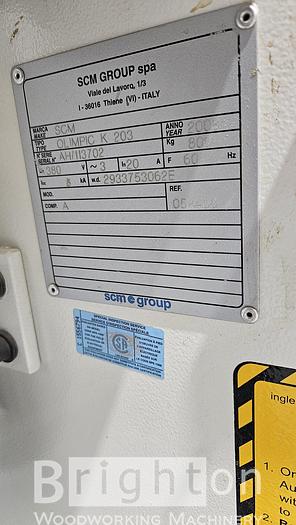

Electrics575 V / 3 Ph / 60 Hz with included transformer.

Additional Features

Very clean, well cared for machine.

5/16″ (7.9 mm) Max. edge cap. for strip feeding, 1/8″ (3 mm) for coil feeding; 60 mm min.
panel width and 160 mm min. length, panel thickness 10 – 50 mm.
Equipped with: Automatic coil feed magazine & shear device up to 1.2 mm;
semi-automatic magazine for feeding strips; Teflon coated glue pot (heat-up time 10 Min),
1.2 mm cap. guillotine, 2-roll pressure unit w/mechanical setting.

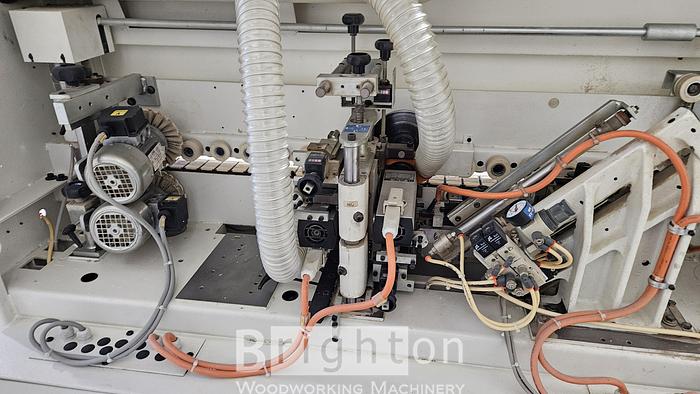

Workstations: Double motor front & rear end trim mounted on THK guides complete w/copying
device (0.4 HP – 12,000 RPM motor ea.), tilts 0° – 15° from the control panel with
(2) preset positions
Top & bottom flush & bevel trims (0.7 HP – 12.000 RPM motor ea.), bevels 0° – 15° with
precision digital indicators for quick setup
Top & Bottom Buffing
27 FPM Fixed feed speed, 0.75 HP feed drive. – Complete with: Full cover sound enclosure,
mechanical digital readouts for setup adjustments, frequency inverter, outboard panel
support, and used tooling
