2015 SCM Pratix-S15B used Flat table CNC with offload rake. #BM2563

2015 SCM Pratix-S15B used Flat table CNC with offload rake. #BM2563

***ORDER PENDING***

Uxbridge, Canada

orCall (647) 384-9663

Description

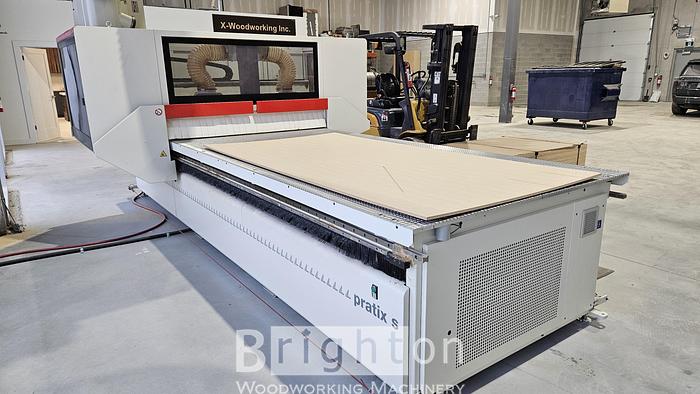

2015 SCM Pratix-S15B used Flat table CNC with offload rake.

"note: click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"

Specifications

ManufacturerSCM
ModelPratix-S15B used Flat table CNC with offload rake.
Year2015
ConditionUsed
Serial NumberAH/118219
Stock NumberBM2563
QualityVery Good

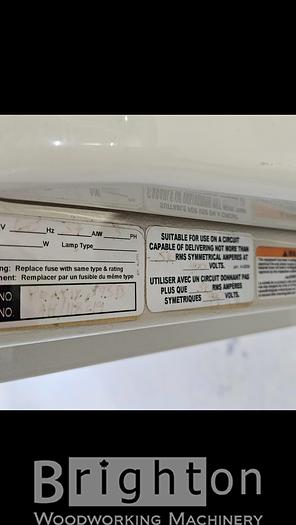

Electrics575 V / 3 Ph / 60 Hz with included transformer.

Additional Features

This cnc machine has been lightly used and very well cared for. Used only in a small shop. Auto offload was not used.
Offload part Rake with dust collection option is included with this machine.
Table extension included with dust collection port.
PDF manual available.

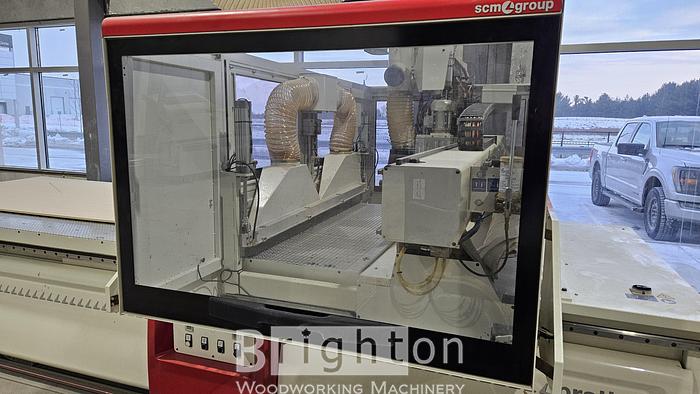

Aluminum 5' x 12' traveling "Bridge Gantry" and stationary dual-vacuum table with a "MATRIX" square grid pattern for fixturing parts; grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoilboards for "nested base machining"; part location pop-up pins mounted on the table perimeter.

Working area "X" Axis is 145.2" (3,686 mm); "Y" axis is 61.2" (1,555 mm); "Z" axis stroke is 9.84" (250 mm); max. material thickness 4" (100 mm).

Max Positioning Speed: "X" & "Y" Axis at 115 FPM (35 MPM), "Z" axis at 82 FPM (26 MPM); closed loop AC Servo drive system with high precision "Rack & Pinion" system in "X" & "Y" axis & ground ball screw in "Z" axis; all axes ride on extra large precision profile linear guideways.

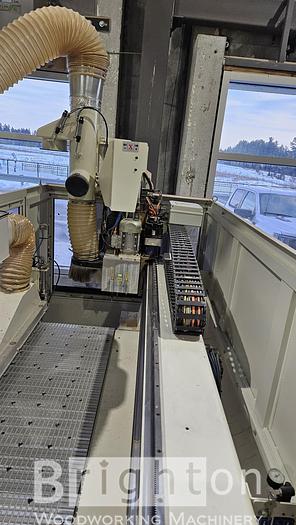

Boring Head: 3 HP (2.2 kW) - 6,000 RPM motor; (7) vertical spindles on 32 mm centers, (5) spindles in "X" axis & (2) spindles in "Y" axis.

Main Spindle: (1) 9 HP (6.7 kW) Air cooled electro spindle with HSK F63 adaptor; variable spindle speeds from 1,500 - 24,000 RPM; (1) 10-position ATC tool rack mounted to RH side of the machine base.

PC Front-End with: "XILOG Plus" + Windows "XP Pro" operating system; 17" high resolution LCD; ergonomic keypad; CD ROM & 1.44 MB disk drives; USB ports, serial ports RS-232 & RS-242 & Ethernet adaptor; programs can be transferred via disk or downloading by wire is possible' all computer components are mounted on a mobile stand.

Transformer, vacuum pumps included.
