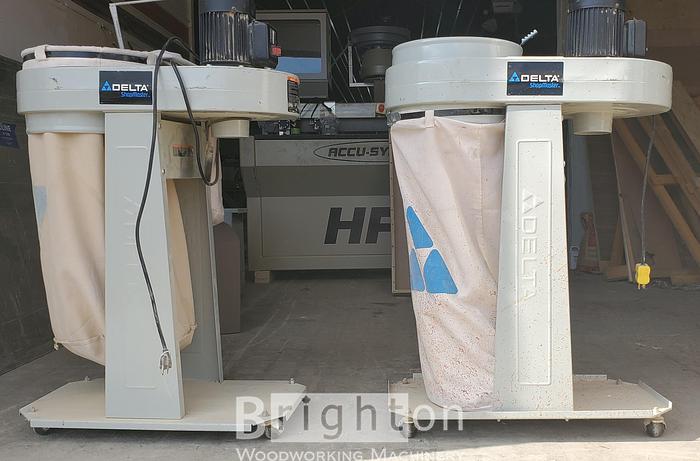

2006 Delta AP 400 Dust Collector

Available quantity: 2

Uxbridge, Canada

orCall (647) 384-9663

Description

This 1 hp, single-stage 650 cubic feet per minute dust collector is powerful enough to draw in dust and chips from several machines at once. It is also lightweight and comes complete with casters making this unit very easy to move around the shop or store for clean-up and storage. The top and bottom collection bags provide 6 cubic feet of collection and filter down dust as small as 30 microns. The vertical induction motor is placed vertically over the curved steel impeller which produces powerful air velocity for efficient dust collection.

"note: click REQUEST QUOTE anywhere you see it on our site to receive an instant auto-quote directly to your email!!"

Specifications

ManufacturerDelta
ModelAP 400 Dust Collector
Year2006
ConditionUsed
Stock NumberBM2010
QualityVery Good

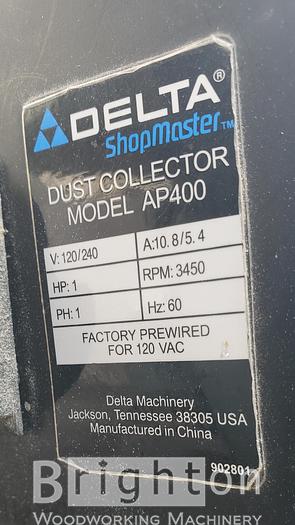

Electrics120 / 240 V / 1 Ph / 60 Hz
*All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.

Additional Features

DELTA DIFFERENCE
1HP TEFC induction motor for long-lasting, smooth performance.
Fined aluminum motor housing keeps motor running cool during long periods of use.
Curved steel impeller produces maximum air velocity for efficient dust collection.
Maximum 650 CFM.
30 micron top and bottom collection bags provide large dust collection capability.
Sturdy steel base with four easy-gliding wheels for moving from machine to machine or for storing out of the way.
SPECIFICATIONS
MOTOR: 1 HP
STANDARD BAG FILTRATION: 30 Micron
MAXIMUM CFM: 650
MAX. STATIC PRESSURE (in water): 30
BAG AREA (SQUARE FEET): 20 (1.9 sq. meter)
CHIP CAPACITY (CUBIC FEET): 2.6 (0.25 cu. meters)
OVERALL DIMENSIONS:
Width: 14"(356 mm)
Length: 27"(686 mm)
Height: 57"(1,448 mm)
WEIGHT: 90 lbs. (41 kg)
