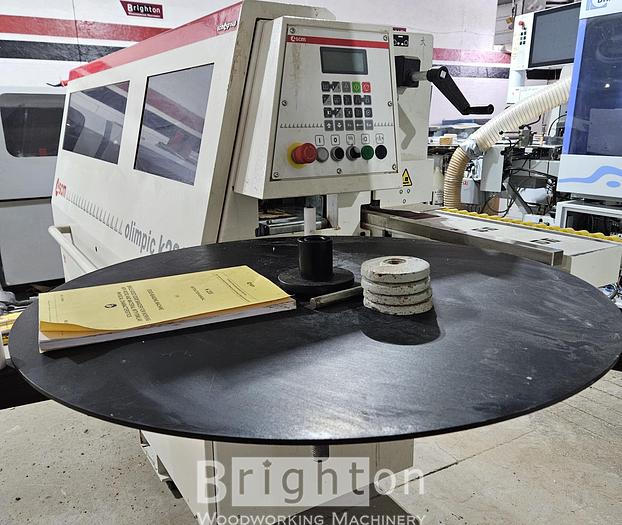

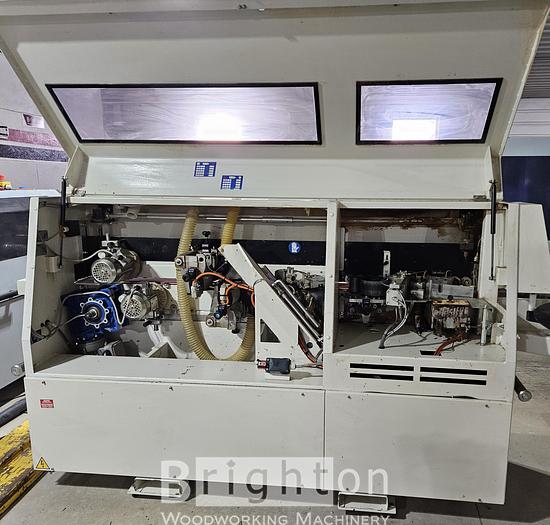

2013 SCM K230 used edgebander #BM2546

SCMI "Olimpic K-230" Edgebander
Edgebanding thickness, 0.4mm - 3mm (0.016" - 0.125”)
Panel height, 3/8” min – 1-15/16”
Minimum panel length, 5 1/2”
Minimum panel width, 2-3/8”
Minimum distance between panels, 22”
Feed speed, 30 FPM
PLC with display and soft keys
Edgebanding infeed table, 32" diameter
Guillotine
3 mm capacity
Gluing station
Glue pot
Glue application roller
Pressure station
One (1) driven roller
One (1) idle roller
Two (2) motor end trimming station
Top/bottom trimming station
0.5 HP motors operating at 12,000 RPM
Top/bottom buffing station
0.25 HP motors operating at 1,620 RPM
Sound enclosure
Outboard roller track support
Forklift cutouts in frame
Estimated dimensions: 128" L x 42" W x 52" H

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
