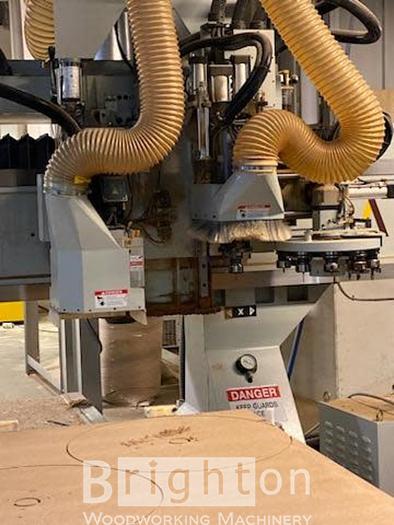

2019 Anderson Exact Plus used nesting CNC machine #BBM2541
2019 Anderson Exact Plus used nesting CNC machine #BBM2541
Auto quote will return with approx CAD$
Description
2019 Anderson Exact Plus used nesting CNC machine
For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.
Click <LEASE> for leasing information.
Click <SHIP> for shipping information.
Specifications
| Manufacturer | Anderson |
| Model | Exact Plus used nesting CNC machine |
| Year | 2019 |
| Condition | Used |
| Stock Number | BBM2541 |
| Quality | Very Good |
| Electrics | V / Ph / 60 Hz |
Additional Features
YEAR: 2019.
Serial number: FAANCEX07265.
FIXED BRIDGE – SINGLE MOVING TABLE
1600 mm x 3700 mm machining envelope Table Strokes 1600 mm Direction Equipped with 1 (one) 18 HP HSK63F Router Head With an
10-Position Ride-Along Automatic Tool Changer And 1 (one) Multiple Spindle Boring Head.
TECHNICAL SPECIFICATIONS:
Table size 3700 mm x 1600 mm (145” x 63”).
Pop-Up Positioning Pins 10 internal pins + 4 external pins.
Vacuum Zones per Table 1 (one).
Axis stroke X axis: 4400 mm (173.2”).
Y axis: 1775 mm (70”).
Z axis: 350 mm (13.8”).
Single Axis Rapid Rate X-axis: 80 meters/min (3,150”/min).
Y-axis: 80 meters/min (3,150”/min).
Z-axis: 30 meters/min (1,180”/min).
Maximum Rapid Traverse All-axis: 113 meters/min (4,448”/min).
Spindle #1 - Router Spindle.
Spindle type Anderson 4-Pole.
Motor power 13.5Kw (S6): 11Kw (S1).
Spindle speed (RPM) 1000-22000.
No. of changeable tools 10.
Spindle nose HSK63F.
HSK 63F tool holders 10 sets (Holder & Locknut).
Aggregate Torque Ring INCLUDED.
*Collet size (5)½”, (5) 3/8” (5) ¼” & (5) ¾” (total # of collets: 20).
Spindle #2 - Line Boring Unit:
Spindle type: Line Boring Unit.
Motor Power: 2 HP.
Spindle speed: 4,500 rpm.
Vertical Drills: 9.
Drill Shank Dia: 10 mm.
Vacuum hold down system 2 (two) Becker Pumps with H-Rack: Power (per pump) 9 HP.
Flow (per pump) 168 cfm.
Total Pressure 24" Hg.
Machine footprint Floor area 220” x 134”.
Height 116”.
Net Machine Weight 9,000 Kg* (19,840 lbs.) *not including pump(s).
* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
