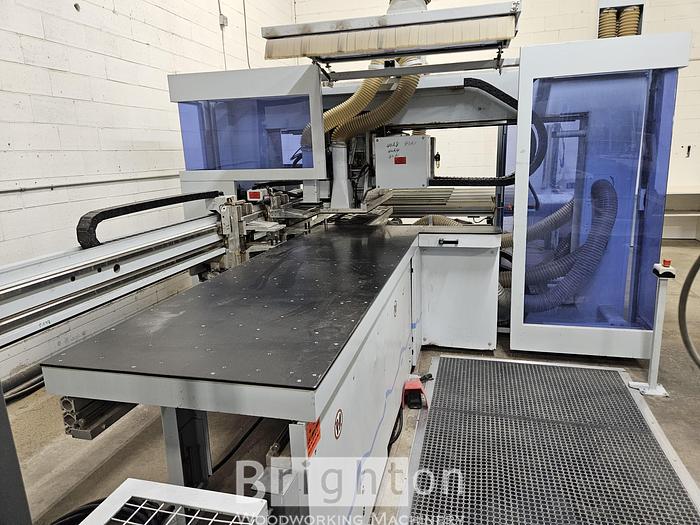

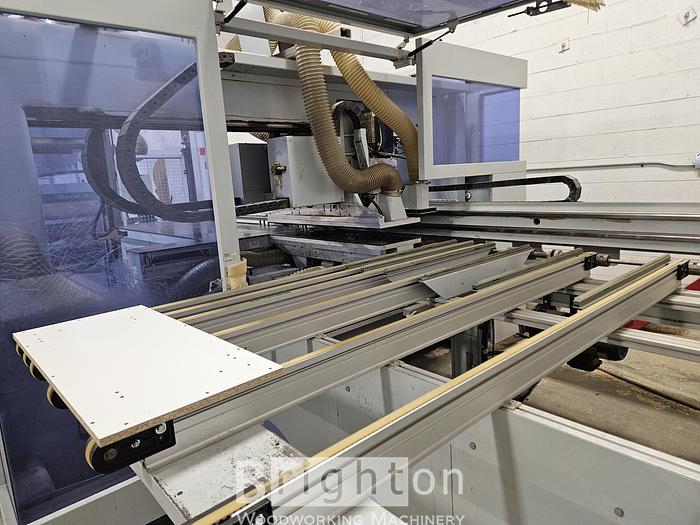

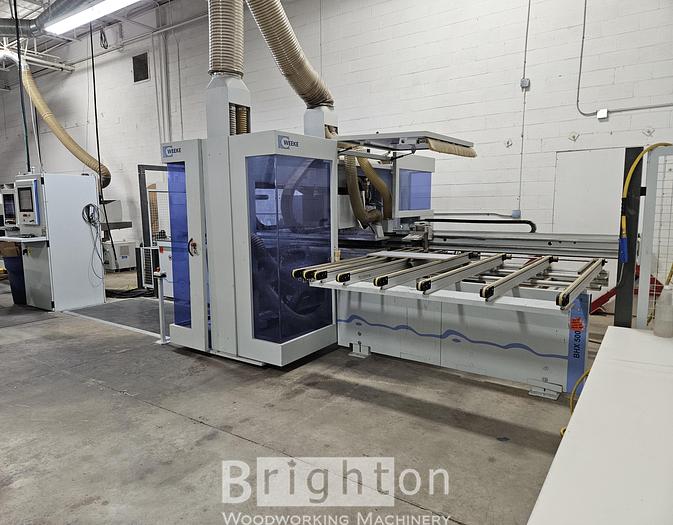

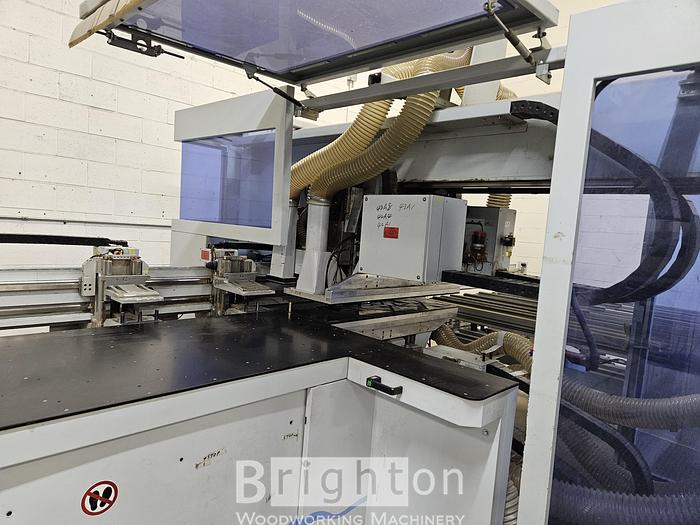

2008 Homag Optimat BHX 500 used CNC machining system #BBM2518

Specs as taken from Manufacturer's website.

Vertical drilling unit with drilling spindles (separately called, with a variable range of speed), there are respectively 32 spindles in the upper and lower machining support. Mechanical spindle lock to ensure reliable drilling depth.

Moving range: see attached rigging plan

• Rise in Z direction: 60 mm

• Drilling depth: max. 38 mm

• Direction of rotation: right / left

• Speed: 1500 rpm. up to 7500 rpm, with frequency control

• Drive: 2 x 2.7 kW

• Hole for fastening the drill: d = 10 mm

• Total drill length: 70 mm

• Drill diameter: max. 35 mm

• Distance between spindles: 32 mm

• Type of spindles: controlled separately

Horizontal drilling unit with drilling spindles (separately called by the program), are located, respectively, with 10 spindles in the upper and lower machining support.

Moving range: see attached rigging plan

• 8 spindles each: in the X-direction
