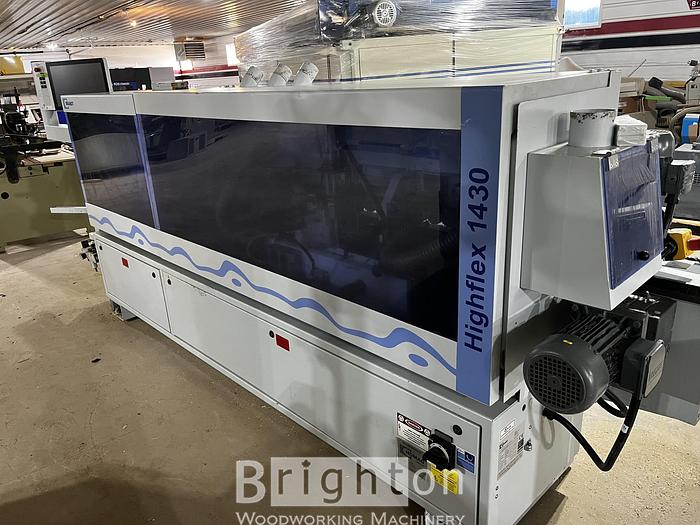

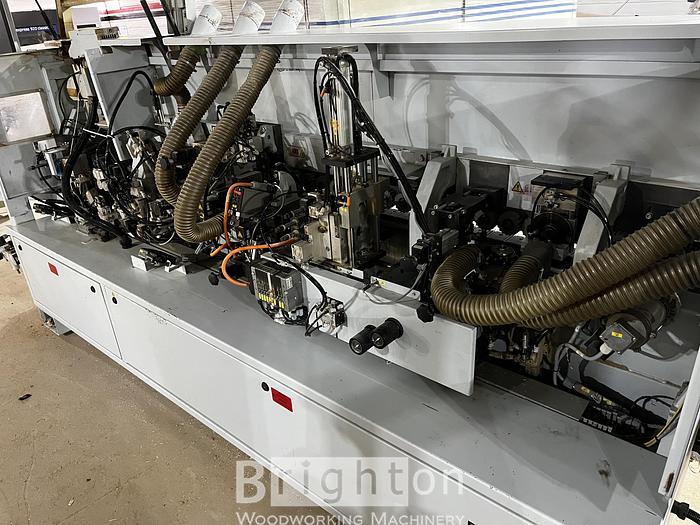

2016 Homag Brandt Highflex KDF 1430 Used Edgebander #BM2514

-Minimum panel length, 160 mm/6.375″, minimum panel width, 70 mm/2.75″, panel thickness, 8 mm (0.3″) – 60 mm (2.375″)

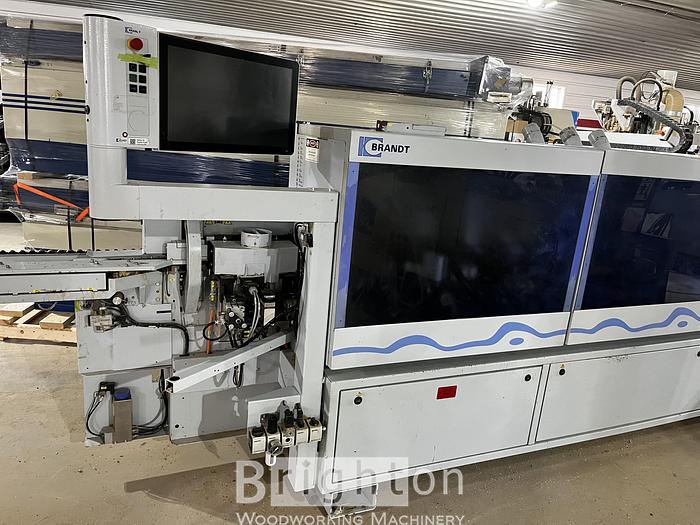

-Edge strip capacity, 0.4 – 8 mm, coil capacity, 3 mm x 45 mm (H), variable feed speed, motorized upper beam positioning, touch screen PLC
-Two (2) motor pre-milling station, 3 HP motors operating at 12,000 RPM, (1) CW & (1) CCW rotation
-Automatic edge magazine, strip or coil stock, strips 0.4 mm – 8 mm (0.016 – 5/16″), coils up to 3 mm PVC, guillotine
-Gluing station, premelt hopper, glue pot with application roller, pressure station, (1) driven roller, (2) idle rollers
-2-Motor end trimming station, 0.5 HP motors, 12000 RPM, chamfer up to 15 degrees

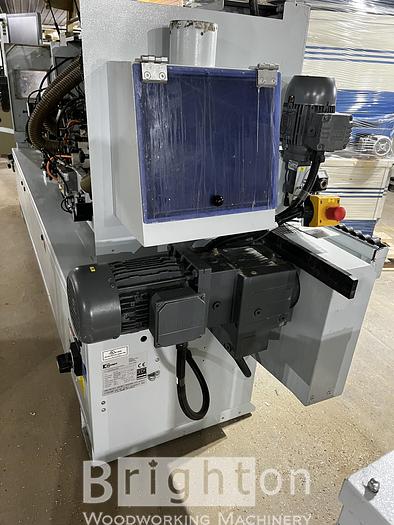

-Corner rounding station, 0.5 HP motor, 12000 RPM, motor brake, 12 – 60 mm panel thickness, 3 mm maximum edge thickness

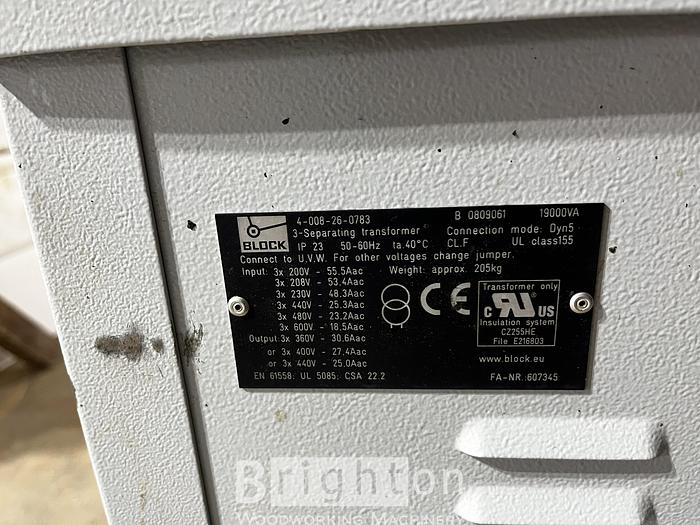

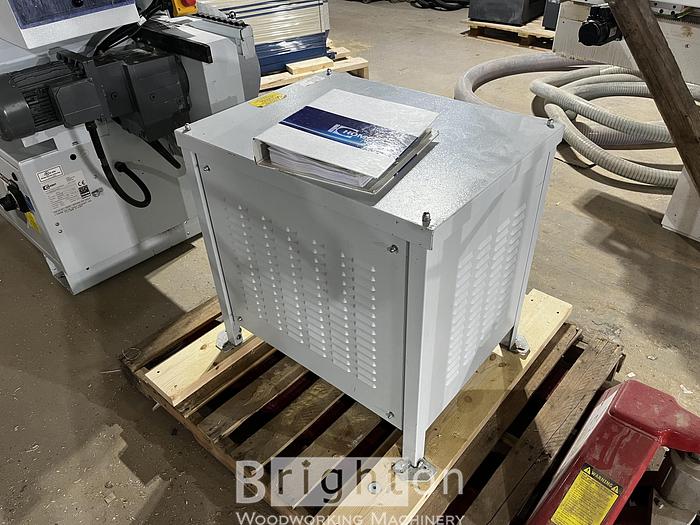

-Top/bottom profile scraping station, external collection box, external transformer
Buffers

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
