2022 Cantek ****SOLD, waiting for pick up***MX 340 Used Edgebander LIKE NEW! #BM2485

2022 Cantek ****SOLD, waiting for pick up***MX 340 Used Edgebander LIKE NEW! #BM2485

Uxbridge, Canada

Description

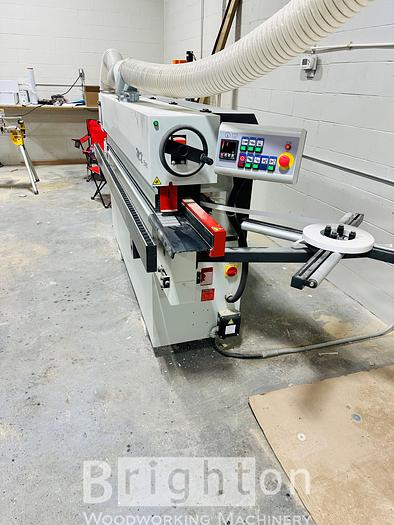

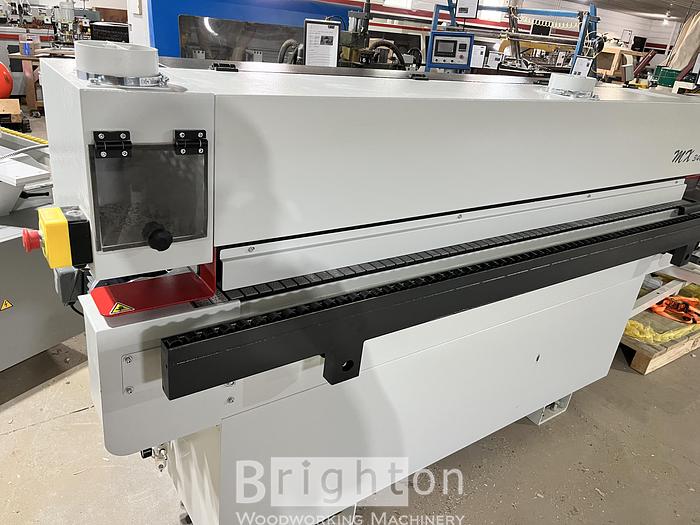

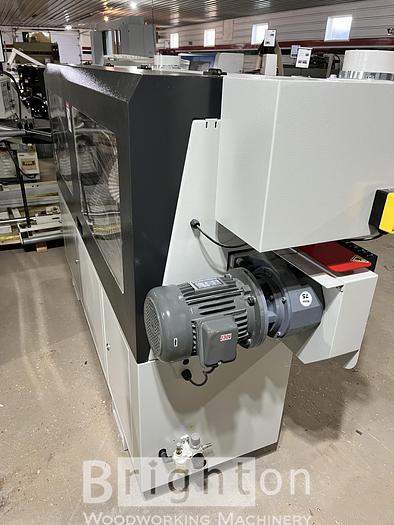

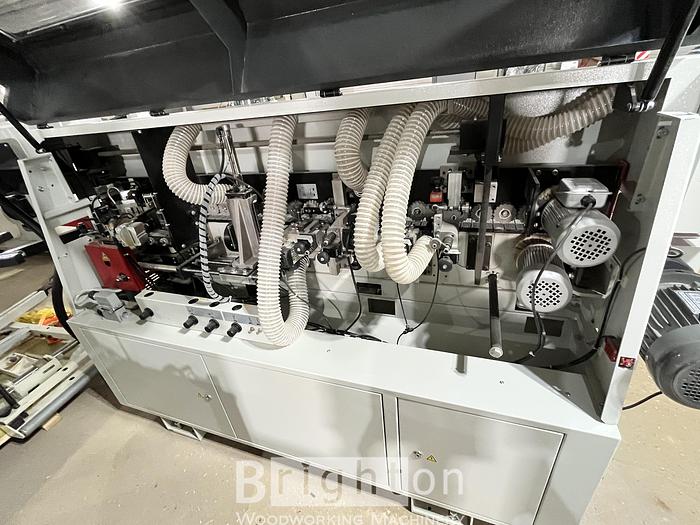

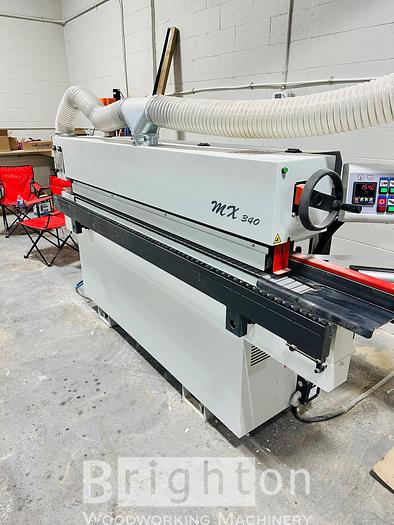

2022 Cantek MX 340 Used Edgebander (like New!!)

5.3 kW total HP, 1.5 kW largest HP

26A


For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.

Click <LEASE> for leasing information.

Click <SHIP> for shipping information.


Specifications

ManufacturerCantek
Model****SOLD, waiting for pick up***MX 340 Used Edgebander LIKE NEW!
Year2022
ConditionUsed
Stock NumberBM2485
QualityVery Good
Electrics230V / 3 Ph / 60 Hz

Additional Features

The MX340 from Cantek is designed to be a compact, and durable edgebander offered at an affordable price. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.
Pre Heat
End Trimming
T/B Trimming
Radius Scrape
Buffing

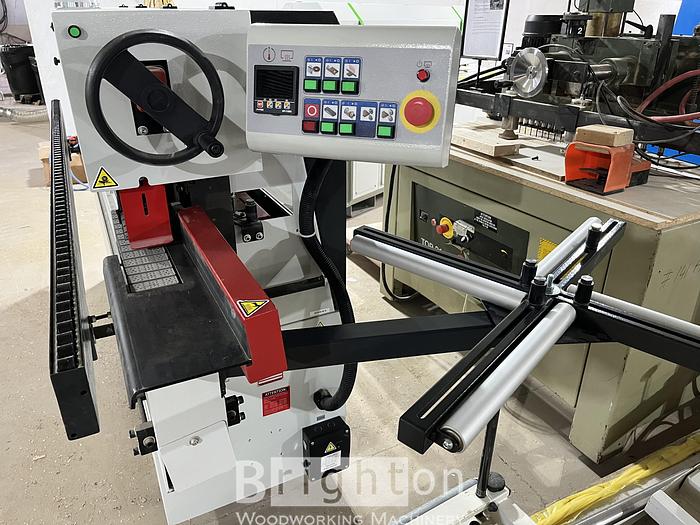

PLC control system with LED display and keypad
Work-piece is fed by chain
Edge coil support plate: Ø 800 mm, for PVC/ABS
Edge feeding is Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material can be hand-fed
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
Teflon-coated hot-melt glue pot
Spring loaded pressure unit with (2) pressure rollers
High frequency 12000 RPM end trimming unit, with Ø100 mm TC-Saw blades
High frequency 12000 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
Radius scraper with 2mm radius
3000 RPM top & bottom buffing units
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration

Feeding speed 9 meters/min.
Panel thickness 8~45 mm
Edge thickness 0.4 ~ 3 mm
Min. panel width 100 mm
Min. panel length 210 mm
Working table height 850 mm
Dust collection outlet Ø 127 mm (5”)
Electrical consumption 5.5 KW
Electrical requirement 15 amps (Voltage must be +/- 5%)
Voltage 230/3/60
Machine weight 520 kgs
Machine dimensions 2950 x 1370 x 660 mm

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
