2005 Heesemann LSM8 used widebelt finishing sander #BBM2474

2005 Heesemann LSM8 used widebelt finishing sander #BBM2474

REDUCED FOR QUICK SALE!

Location:Ontario, Canada

orCall (647) 384-9663

Description

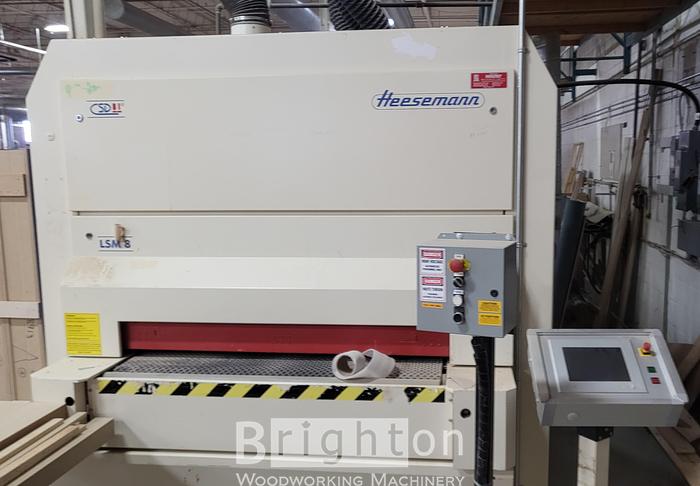

2005 Heesemann LSM8 used widebelt finishing sander

One drum, 2 platens.


For pricing please click “REQUEST QUOTE” wherever you see it on our Brighton Woodworking Machinery website at www.brightonmachines.com.

Click <LEASE> for leasing information.

Click <SHIP> for shipping information.

Specifications

ManufacturerHeesemann
ModelLSM8 used widebelt finishing sander
Year2005
ConditionUsed
Stock NumberBBM2474
QualityVery Good

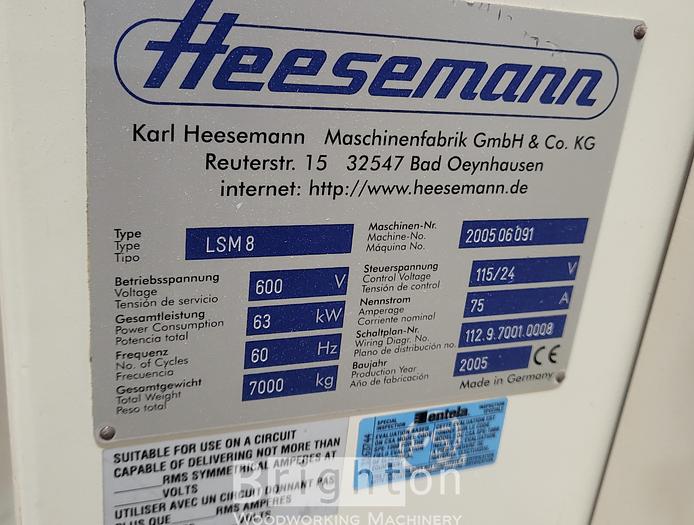

Electrics600V / 3Ph / 60 Hz

Additional Features

HEESEMANN LSM-8/3-OSR Wide Belt Finishing Sander, 52" and (3) Heads; Equipped with: (1) longitudinal segmented platen head. and (2) Orbital Platens

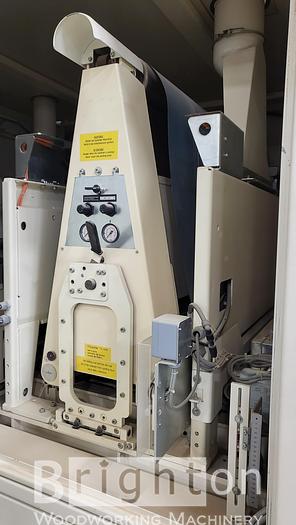

• 1st Head: Longitudinal segmented platen head. Segmented Polishing Platen, 20 & 27 HP dual speed motor. electronically controlled segments to conform to panel size,.2620 x 1350 mm (91.4 x 53.2") Sanding belt.
- Equipped with HEESEMANN's patented "CSD" selective pressure adjustment system, sensors placed every 16 mm (5/8") sense part configuration; pressure for each segment, to eliminate sand through, can be pre-programmed to provide less pressure on the outer edges or more in the center if desired. The "CSD" computer control will hold a maximum of (20) programs.

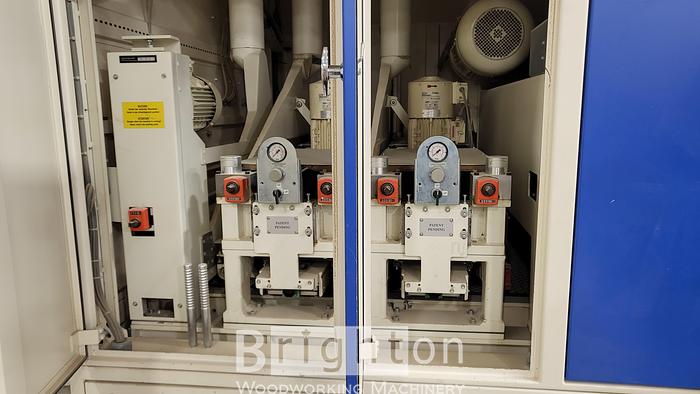

• 2nd & 3rd Heads: OSR Dual orbital action head with (1) high-speed orbit on sanding pad, powered by 3 kW (4.5 HP) motor.
Secondary oscillation movement of platens powered by 1.5 HP motor. Upstream and downstream vacuum chutes on each head for dust localized dust pickup.
- Platens feature "quick change" abrasive material; Both orbital heads with variable speed inverter drives.
• Outfeed Rotary Brush with cleaning brush loading with single end adjustment , 6" max. dia., 3.4 HP motor.
• Variable feed speed from 13 to 82 FPM, 6.5 HP feed drive.
• Infeed and outfeed Ssissor Lift and Control box shown are not included.
• Motorized thickness opening 1/4" to 3-5/32" max. -
• Power Consumption: 63 KW, 75 Amps.
• Separate display console for CSD control.

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
