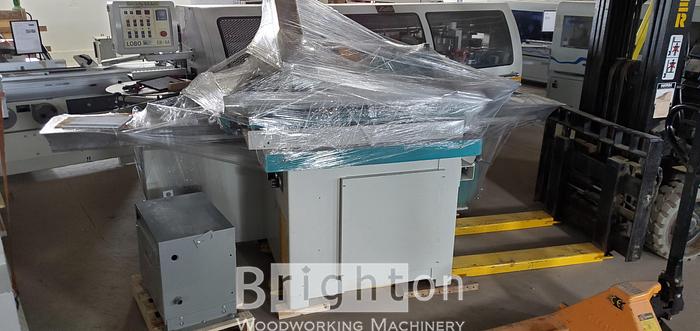

2001 Holzher 1243 Sliding Table Saw
Sold
2001 Holzher 1243 Sliding Table Saw
Location:Uxbridge, Canada
Description
HOLZ-HER sliding table saw, model 1243 complete with precision sliding table guide rail system, which incorporates hardened steel guide rails. Guide roller system incorporates six ball bearing self-compensating rollers, to provide guaranteed precision for years of cutting.
Also features:
- Cross cut fence with telescopic arm.
- Quick positioning ofthe fence, 15 - 22.5 - 30 - 45 - 90 degrees.
- Rip fence with quick micro-adjustments.
- Three (3) positions sliding table lock.
- Easy speed changes through opening on top ofthe main table.
- Saw blade and scoring unit tilting O - 45 degrees.
- External adjustments for the scoring unit. (two knobs).
- Aluminium sliding table, 3200mm x 400mm.
- Anodized profiles and sliding table.
- Overhead arm saw guard with exhaust dust connection.
- Main and scoring blades included .
Specifications
| Manufacturer | Holzher |
| Model | 1243 Sliding Table Saw |
| Year | 2001 |
| Condition | Used |
| Serial Number | 504 |
| Stock Number | BM2000 |
| Quality | Very Good |

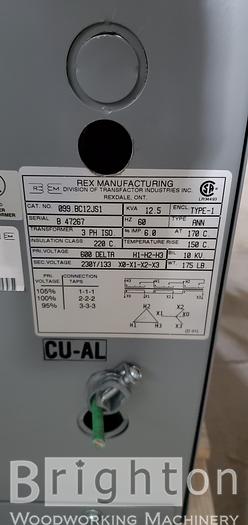

| Electrics | 230 V / 3 Ph / 60 Hz with 600 volt transformer |
| Weight | 2000 lbs |
| * | All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing. |
Additional Features
Standard equipment:
- Cutting length : 125.98"
- Cutting width to rip fence: 59.00"
- Main saw motor power: 9HP.
- Main saw motor speeds: 3000-4000-5000 RPM.
- Main saw blade max. dia.: 16"
- Scoring saw motor power: 1 HP.
- Scoring saw motor speed: 8000 RPM.
- Scoring saw blade dia.: 125mm
