2002 Gannomat 0410/S Elite 25 used drill and dowel machine #BBM2468

No longer available

2002 Gannomat 0410/S Elite 25 used drill and dowel machine #BBM2468

Manitoba, Canada

Description

2002 Gannomat 0410/S Elite 25 used drill and dowel machine

Click INSTANT PRICE anywhere you see it on our site to receive an instant auto-quote, with Pricing and Specs, directly to your email!!

Click <LEASE> for leasing information

Click <SHIP> for shipping information.

Specifications

ManufacturerGannomat
Model0410/S Elite 25 used drill and dowel machine
Year2002
ConditionUsed
Serial Number204-290
Stock NumberBBM2468
QualityVery Good
Electrics600V /3 Ph / 60 Hz with built in Transformer

Additional Features

Gonner Gannomat
Model: 0410/S Elite 25
SN: 204-290
Mnf year: 2002
Power supply: 400 V (but it has a built in transformer to be used with 600v)
It has the option to do two bords at the time.
Gannomat "Elite 25 (410-S)" Horizontal Drill and Dowel Machine

Designed for drilling, gluing, dowelling or any combination

Dowel capacity, 8 mm diameter
Dowel length capacity, 25 mm - 50 mm (0.98" - 1.96")
Vertical adjustment of horizontal boring head 0 mm - 40 mm
Boring depth (using 77 mm long bits) 0 mm - 45 mm
Workpiece thickness capacity, 70 mm (2.75")
Max working width capacity, 800 mm (31.4")

Twenty five (25) horiztonal spindles

Ten (8) dowel inserters

Two (2) dowel hoppers

One (1) glue tank

One (1) water tank

Back stops

Left and right adjustable fences

Standard and mirror image machining

Four (4) dual action pneumatic clamps

For horizontal or vertical part positioning and clamping

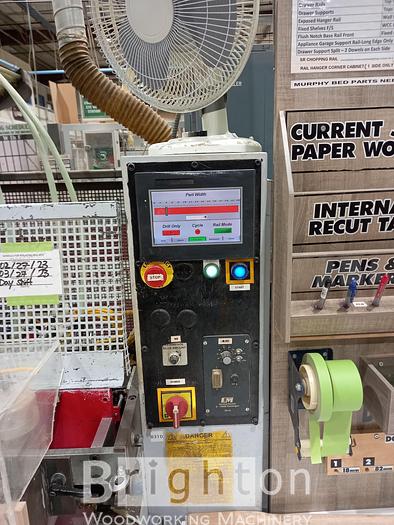

Control panel

Vibration control of dowel hoppers

Interlocked safety cage

Foot pedal operation

* All Descriptions, Specifications and Features are correct to the best of our knowledge. Interested buyers should verify before purchasing.
