1998 Quickwood Pro 1100 Orbital Brush Sander
Quickwood Pro 110 Vac-Tronic 8 head orbital brush sander
|Model||Pro 1100 Orbital Brush Sander|
|Electrics||600V / 3 Ph / 60 Hz|

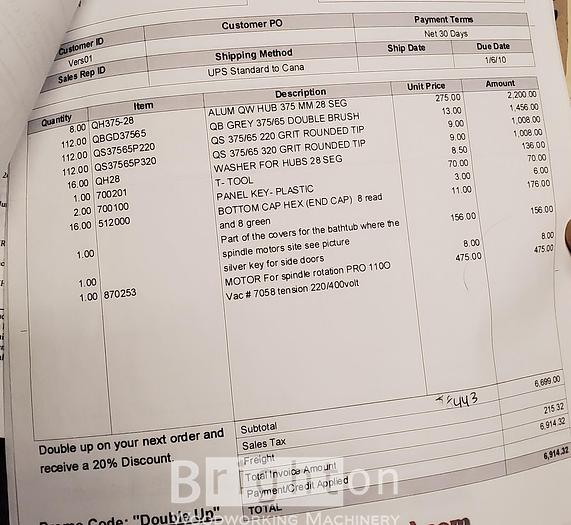

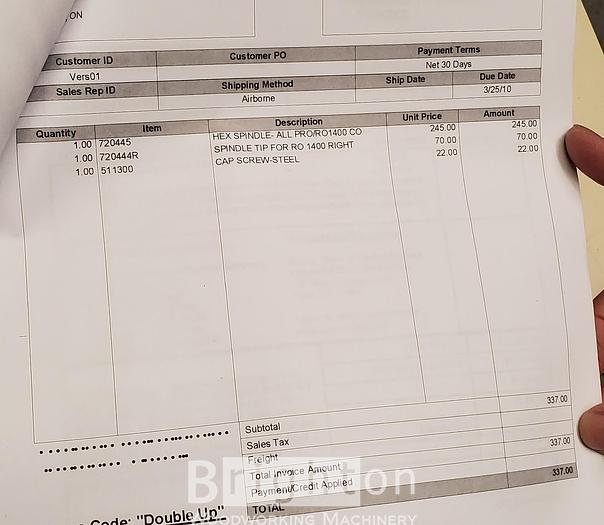

Recent video available with machine running. Company has closed down. Machine in really great running order and many new parts added as per the invoice pics. All specs are to the best of our knowledge. Purchaser should verify prior to buying.

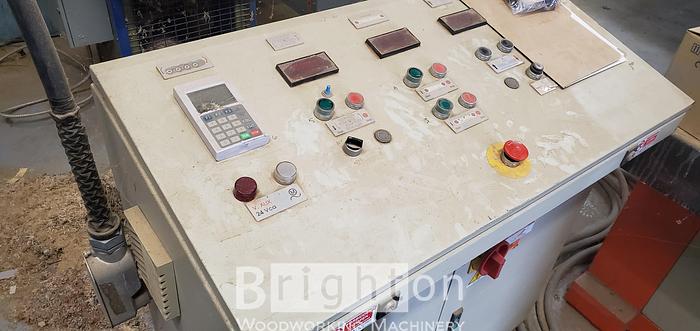

8-Head, 43" max. width cap.. (1) Carousel head with (4) double arbor heads consisting of (8) counter-rotating spindles, touch screen controls with programable PLC operation of machine functions, recal of machine functions are automatic.
The (4) heads are staggared; each head with a 3 HP motor and 200 to 1,200 RPM spindle speed, inverter controlled, all heads are reversable with a push button to allow sanding of two different grits, 15" long spindles extend out each side of head drive.
Carousel speed 4 to 28 RPM, 3 HP drive motor with inverter controlled RPM, 10" - 14" Max. disc dia. PLC control of carousel RPM, brush RPM, conveyor feed speed and thickness opening.
Upper nylon brush hold down between all brush heads. "Vactronic" Vacuum bed conveyor feed system, 10 HP vacuum fan assembly, variable feed speed 6 to 46 FPM via 3 HP feed drive, 0" to 4" motorized thickness opening.
