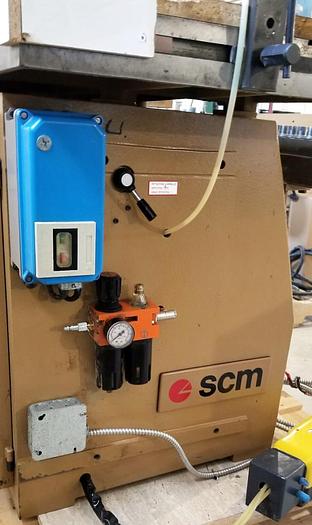

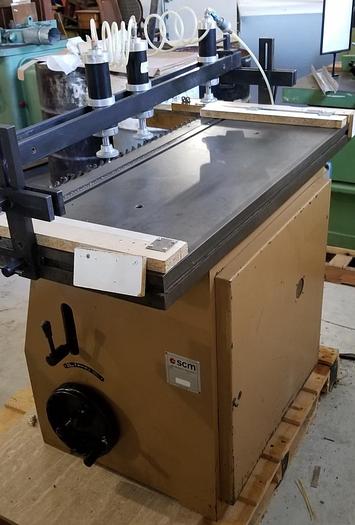

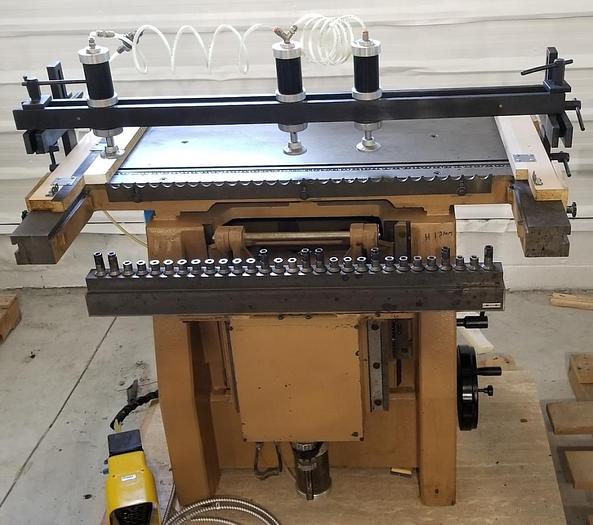

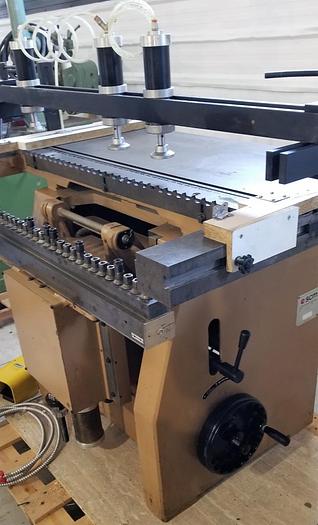

1992 *SOLD* Boring Machine - SCM FM-20
Sold
1992 *SOLD* Boring Machine - SCM FM-20
Location:Uxbridge, Canada
Description
Very heavy duty line boring machine. Original fences are missing and current fences are home made. Used SCM FM-20 Boring Machine. REF# 1817BM-C.
Located in Ontario at our Brighton Woodworking Machinery Warehouse in Uxbridge, 20min E of 404 on Davis Drive.
Specifications
| Manufacturer | SCM |
| Model | FM-20 |
| Year | 1992 |
| Condition | Used |
| Stock Number | 1817BM-C |
| Electrics | 575 V / 3 Ph / 60 Hz |
| Weight | 1364lbs |
| Shipping dimensions | 54 inches x 32 inches x 55 inches high |
| Condition info | Very Good |
Additional Features
Centre distance between spindles: 32 mm
Max. centre distance between outer spindles: 896 mm
Boring keeping constant point O: 55 mm
Max. vertical boring depth: 120 mm
Max. horizontal boring depth: 100 mm
Max. spindle height for horizontal boring: 110 mm
Table dimensions : 1220 x 700 mm
Working pressure of pneumatic system: 6-8 atm
Drive motor power 4 HP
Spindle Speed: 2800 rpm
