2012 Brandt Ambition 1110 (KDN110) Used Edgebander

Sold

2012 Brandt Ambition 1110 (KDN110) Used Edgebander

Uxbridge, Canada

Description

Used Edgebander

REDUCED! Very compact Homag Brandt Edgebander

Specifications

ManufacturerBrandt
ModelAmbition 1110 (KDN110), Used Edgebander
Year2012
ConditionUsed
Stock Number1891BM

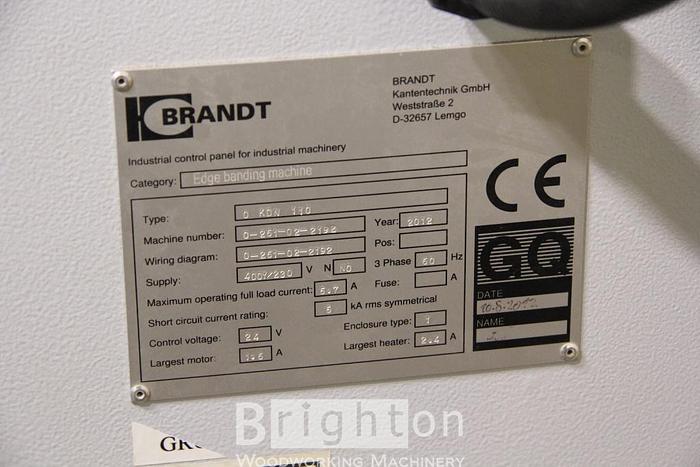

Electrics230/400V (with transformer for 600V)  / 3 Ph / 60 Hz
Weightapprox 1900 lbs
Shipping dimensions12ft x 3ft x 6ft high
Condition infoVery Good

Additional Features

Used Edgebander.

016" to 1/8" Maximum Edgebanding Thickness Capacity (Coil or Strip)
Edgeband Length: Strips 9" Minimum 5/16" Min. to 2" Max. Panel Thickness
Minimum Panel Lenght: 5-1/2"
Minimum Panel Width: 2-3/4"
Edgeband Height: 5/16 to 1-5/8"

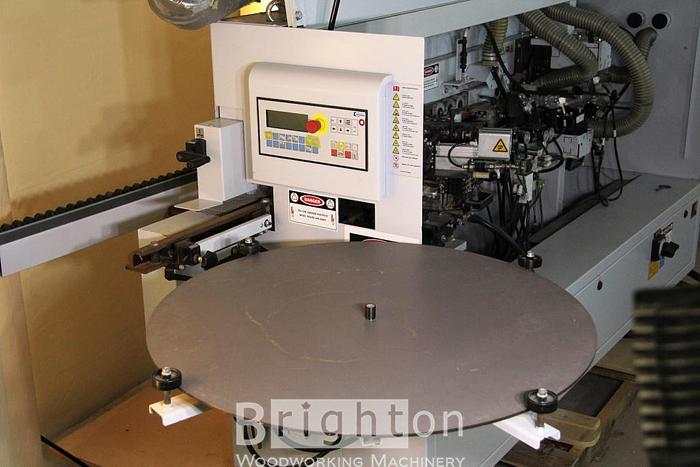

Electronic Easy Control w/ Backlit LCD Display
Automatic Magazine for Strip and Coil Feeding
Hot Melt Glue Pot w/ 12 Minute Heat up Time
Automatic Temperature Reduction Feature (Lowers the Glue Temperature if no Panel is Run Over a 15 Minute Span)
Guillotine for Cutting up to 3mm PVC from the Coil

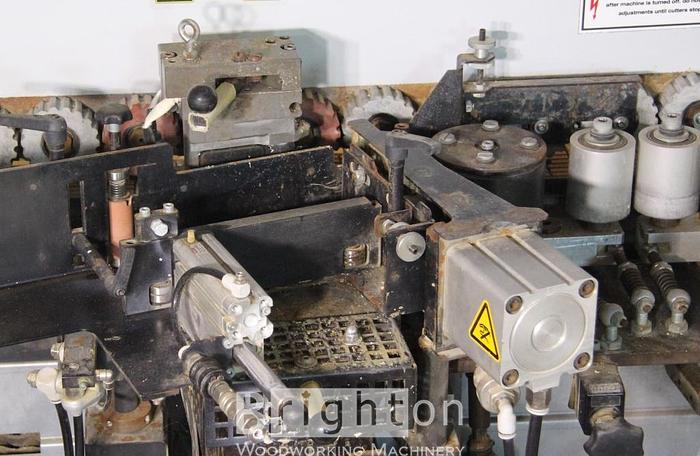

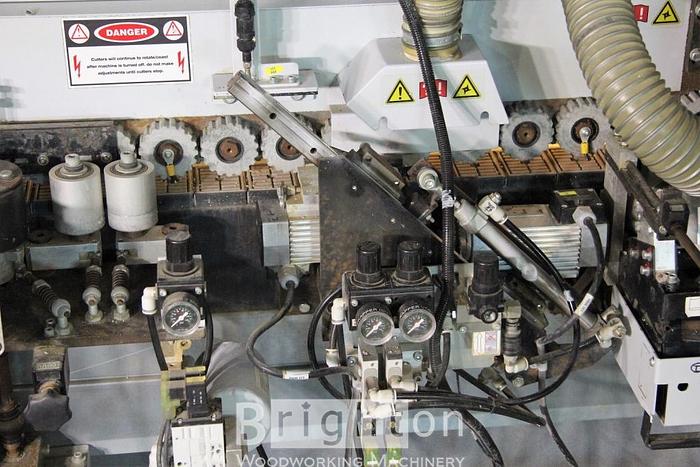

Pressure Station w/ (1) Motorized Pressure Roller plus (2) Additional Idle Pressure Roller w/ Digital Setting System

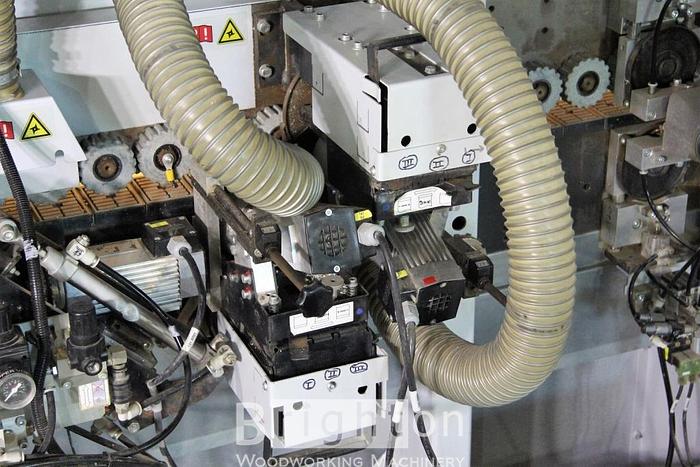

1/4 HP 12,000 RPM Double Motor end Trim .33HP
Top and Bottom Profile Quick Change Scraping Unit
Digital on Top Pressure Beam for Height Indication
Adjustable Infeed Fence w/ Digital Readout Automatic Height Adjustment w/ Top Pressure Beam for all Work Stations
Digitals on Top and Bottom Trim Station
Dust Extraction: (4) 80mm Outlets and (1) 100mm Outlet, 1600 CFM Required
Compressed Air Connection: 6 Bar (85 psi) Isolation Transformer w/ Variable Infeed Voltage for Balancing all 3 Phases of Incoming Power
Machine Weight: 1,650 lbs.
Machine Dimensions: 12'1" Long X 4' Wide
Amperage Required @230 volt: 30 amps
