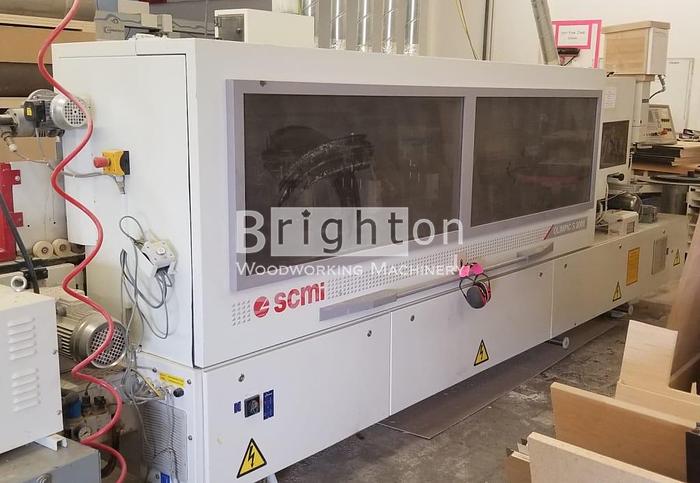

2005 SCM Olimpic S3000 Edgebander for parts
2005 SCM Olimpic S3000 Edgebander for parts
Uxbridge, Canada
Description
Controller communication issue. All the other parts are great. Used egdebander for parts.
Very heavy duty SCM S3000 edgebander c/w with premelt station.
Specifications
| Manufacturer | SCM |
| Model | Olimpic S3000, Used egdebander (for parts) |
| Year | 2005 |
| Condition | Used |
| Serial Number | AH/110189 |
| Stock Number | 1941BM |
| Electrics | 230 V / 3 Ph / 60 Hz (with transformer for 600 volt. ) |
| Weight | 2700 kg (6000 lbs) |
| Shipping dimensions | 19'L x 48" x 80" high |
| Condition info | Very Good |
Additional Features
Used egdebander for parts.
15 mm Max. edge cap., 2" max. banding height; 2-3/8" min. panel width and 6-5/16" min. length.
Automatic strip & coil feed magazine w/Heavy Duty 3 mm PVC cap. guillotine. "Quick melt" glue system over an Teflon coated "Quick release" glue pot with "reversible" glue roller (through controller), application system complete w/automatic recycling device for unused glue, digital thermostat adjustment for temperature control; 5-roll pressure unit w/pneumatic controls for all pressure rollers.
Double motor front & rear end trim (0.4 HP - 12,000 RPM motor ea.), tilts 0° - 15°, end trimmers mounted on 45° THK guide, Heavy Duty casting with dust collection system
Top & bottom fine/radius trimmer (0.8 HP - 12,000 RPM motors) with quick change/discsonnect motors tits 0-25°.
Second Top & bottom fine/radius trimmer (0.8 HP - 12,000 RPM motors) with quick change/discsonnect motors tits 0-25°.
Top & bottom PVC scraper for 3 mm radius PVC controlled through controller, Pneumatic positioning and "quick change" for switching between 3mm and 2mm PVC.
Top & bottom glue scraping station.
Top & bottom oscillating buffing station (0.33 HP - 2,800 RPM motors). Heat gun to bring luster back to PVC after scraping.
40-59 FPM feed speed, 1 HP drive; heavy 3/4" drive chain with chain pads traveling on round & flat tracks.
