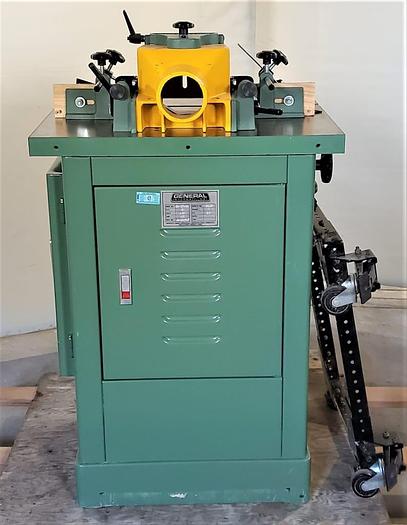

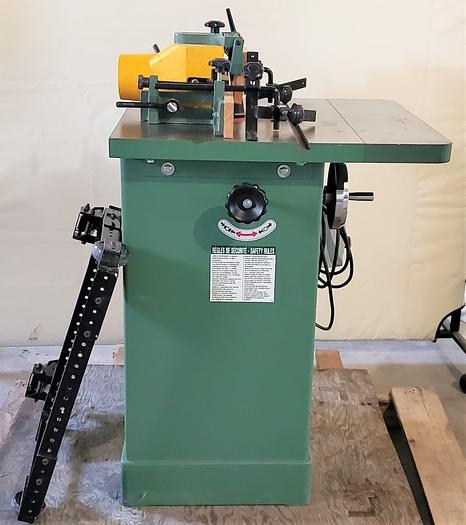

2005 Shaper - General 40-350M1

Extra large, heavy cast-iron table with a smooth, ground surface finish.
Two (2) spindle speeds, with reverse.
Independent left and right fences feature precision micro-adjustment.
Two (2) spindles included: 1/2" (Item #40-215) & 3/4" (Item #40-220).
T-slot miter gauge for better workpiece control.
Industrial motor protected against dust by a totally enclosed cabinet.

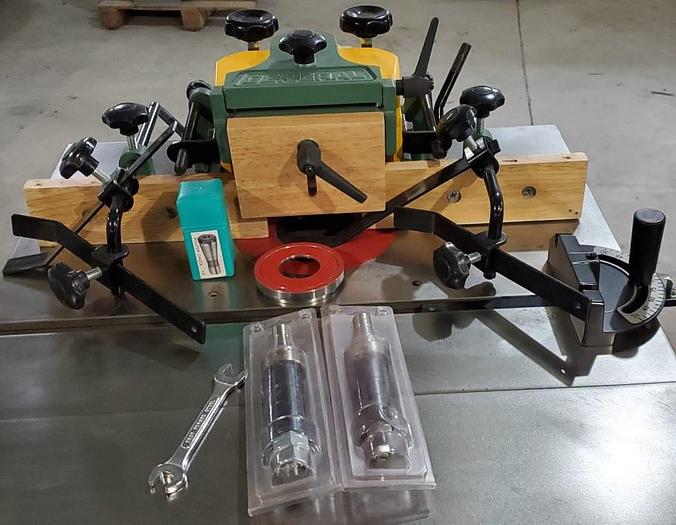

Fence system / cutter head guard includes a cutter guard, spring hold-downs and a built-in 4” dust collection outlet.
1/4” & 1/2” router bit adapters included.
Magnetic starter with thermal overload protection.
Table size 27” x 25” (686 x 635 mm)
Table height 34” (864 mm)
Spindle opening diameters 7”, 3 1/2”, 3” (177, 89 & 76 mm)
Spindles diameters 1/2” & 3/4” (13 & 19 mm)
Spindle travel 3” (76 mm)
Spindle speeds 8000 & 10 000 RPM
Fence sizes (2) 2 3/4” x 9 1/2” (70 x 240 mm)
Dust chute outlet 4” (102 mm)
Base dimensions (l x w) 21 1/4” x 17 1/4” (540 x 438 mm)

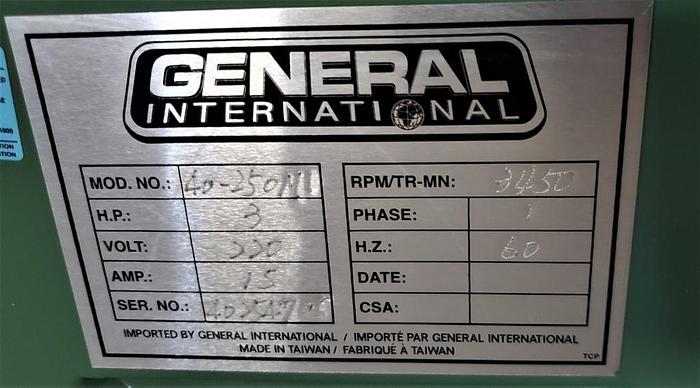

Motor 3 HP, 220 V, 1 Ph, 15 A
Weight 320 LBS
